Page 6 Electrical Connections
Electrical Connections
The TemaServer is powered at low voltage (12V
AC
) by means of a
transformer connected to the 115/230V 50/60Hz network switch. This switch
must be positioned prior to the TemaServer. The cables connecting the
transformer and the TemaServer must be at least AWG20 and no more than
10m long (see Figure 2).
10m max.
115/230V
12V
125mA
black
brown
yellow-green
230V 50Hz or
115V 60Hz
transformer
module
GROUND
yellow-green
oragne
gray
INOUT

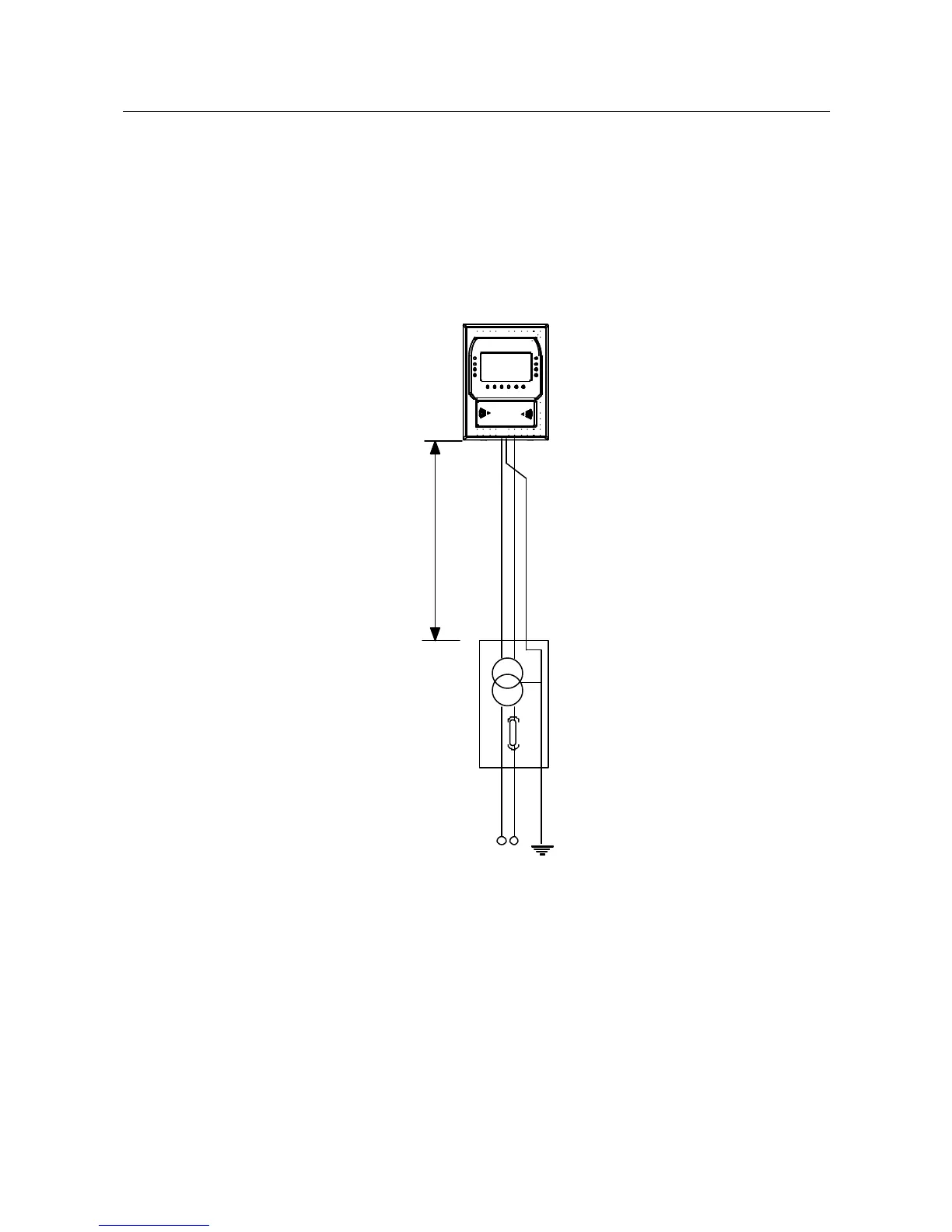

Figure 2: Electrical connections
