Honeywell VOYAGER 1250G User Manual

10 - 4
Standard Cable Pinouts
RS485 Output

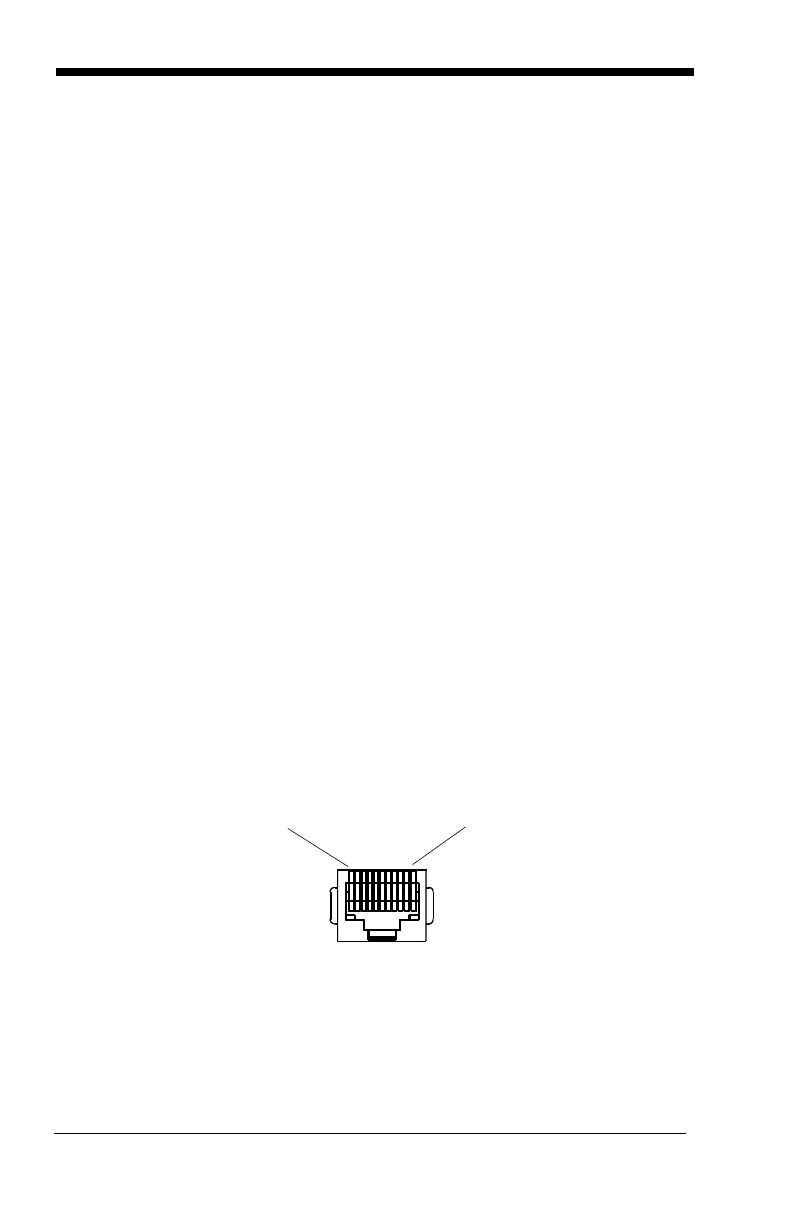

10 Pin RJ41 Modular Plug connects to the base
1 Cable shield 2Cable select 3 Supply ground 4 Transmit data 5 Receive data - serial data to scanner 6 7+5V power 8Transmit Enable 9 10
Note: RS485 signal conversion is performed in the cable.
Pin assignments are not compatible with Honeywell legacy products.
Use of a cable with improper pin assignments may lead to damage to the unit.
Use of any cables not provided by the manufacturer may result in damage not
covered by your warranty.

Honeywell VOYAGER 1250G Specifications

General

Sensor type	Laser
Scanner type	1D
Tilt angle range	-30 - 30 °
Decoding standards	1D, GS1
Pitch reading angle	-60 - 60 °
Light levels (direct sunlight)	0 - 75000 lx
Standard interfaces	USB, RS-232
Input voltage	5 V
Power consumption	140 mA
Shockproof	Yes
Dimensions (WxDxH)	168 x 60 x 74 mm
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Weight	133 g
