84 Voyager XP User Guide

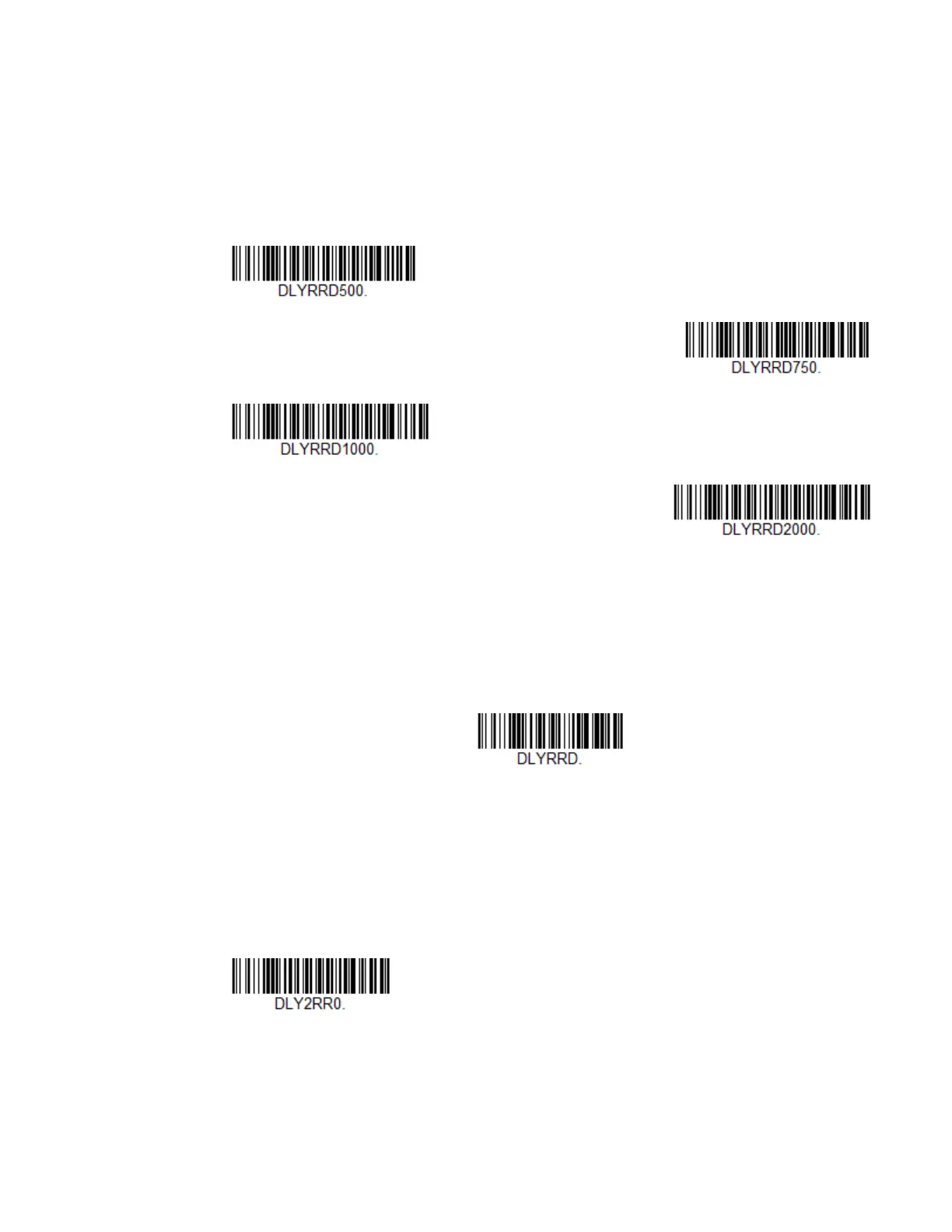

Reread Delay
This sets the time period before the scanner can read the same barcode a second
time. Setting a reread delay protects against accidental rereads of the same bar-
code. Longer delays are effective in minimizing accidental rereads. Use shorter
delays in applications where repetitive barcode scanning is required. Reread Delay
only works when in Presentation Mode. Default = Medium.
User-Specified Reread Delay
If you want to set your own length for the reread delay, scan the barcode below,
then set the delay (from 0-30,000 milliseconds) by scanning digits from the
Programming Chart, then scanning Save.
2D Reread Delay
Sometimes 2D barcodes can take longer to read than other barcodes. If you wish to
set a separate Reread Delay for 2D barcodes, scan one of the programming codes
that follows. 2D Reread Delay Off indicates that the time set for Reread Delay is
used for both 1D and 2D barcodes. Default = 2D Reread Delay Off.
Short (500 ms)
* Medium (750 ms)
Long (1000 ms)
Extra Long (2000 ms)
User-Specified Reread Delay
* 2D Reread Delay Off

Honeywell Voyager 1470g Specifications

General

Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Sealing	IP40
Motion Tolerance	Up to 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
Storage Temperature	-40°C to 60°C (-40°F to 140°F)
Weight	130 g (4.6 oz)
Humidity	0% to 95% relative humidity, non-condensing
Scan Pattern	Omnidirectional
Connectivity	USB, RS-232, Keyboard Wedge
Decode Capability	Reads standard 1D
Drop Specification	Withstands multiple 1.5 m (5 ft) drops to concrete
Light Levels	0 to 100, 000 lux
Dimensions	62 mm x 169 mm x 82 mm (2.5 in x 6.6 in x 3.2 in)
Light Source	LED
