44 Voyager XP User Guide

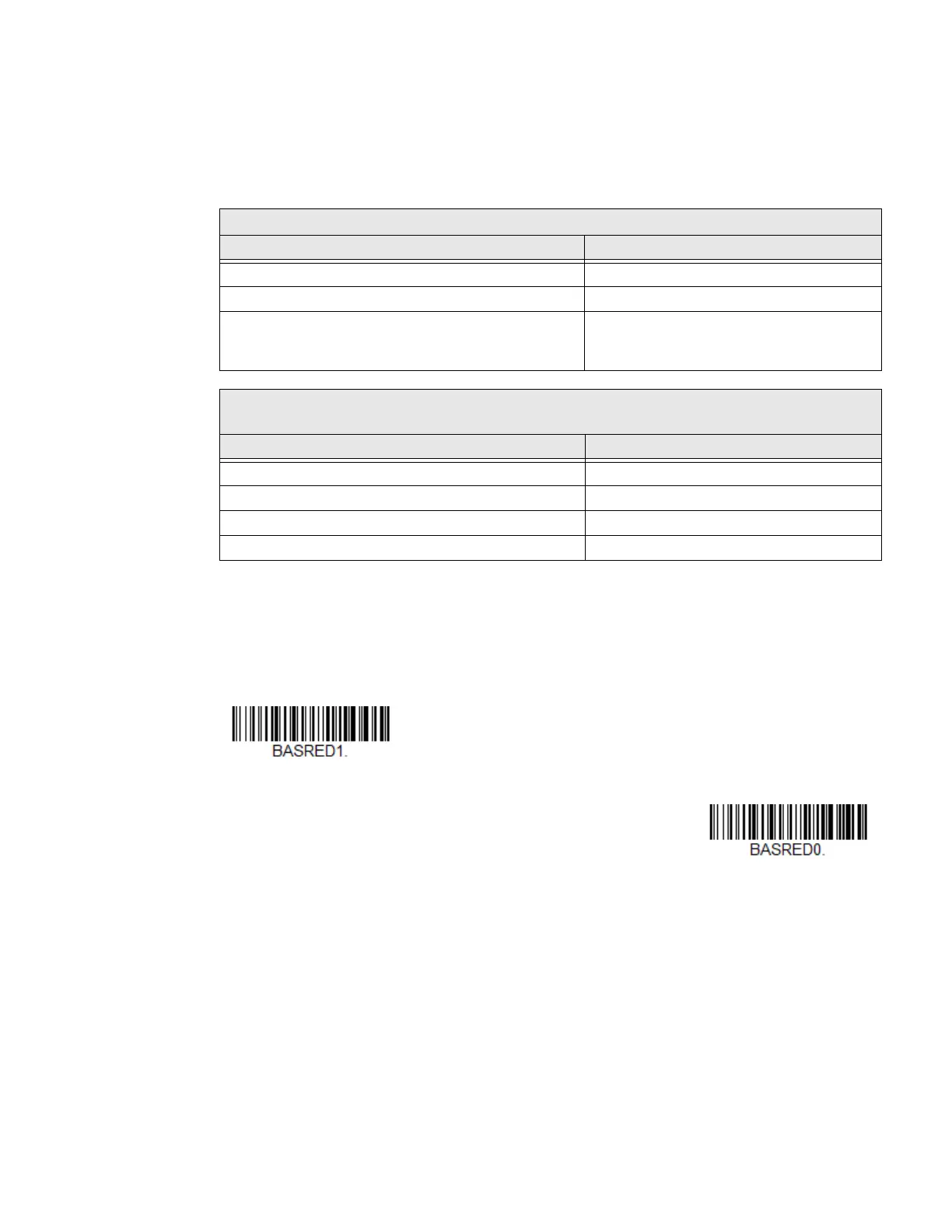

Base/Access Point LED Sequences and Meaning
The base contains a red LED and the Access Point has a blue LED that indicate the
status of the unit and verify its communication with the host system. The base also
has a green LED that indicates scanner battery charge condition.
Base Power Communication Indicator
To display the power indicator on a base or an Access Point, scan the Base Power
Communication Indicator On barcode. To turn off the power indicator, scan the
Off barcode. Default = On.
Red or Blue LED - Host Communication
Red or Blue LED Communication Condition
Off USB suspend
On continuously Power on, system idle
Short blinks in multiple pulses. Occurs while
transferring data to/from the RF module or the Host
port.
Receiving data
Green LED - Scanner Battery
(base only, does not apply to Access Point)
Green LED Charge Condition
Off Battery not detected or charge suspended
Slow flash, 1 second on, 1 second off Pre-charge and charging
On continuously Charge complete
Fast flash, 300 mSec on, 300 mSec off Charge Error
* Base Power Communication
Indicator On
Base Power Communication
Indicator Off

Honeywell Voyager 1470g Specifications

General

Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Sealing	IP40
Motion Tolerance	Up to 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
Storage Temperature	-40°C to 60°C (-40°F to 140°F)
Weight	130 g (4.6 oz)
Humidity	0% to 95% relative humidity, non-condensing
Scan Pattern	Omnidirectional
Connectivity	USB, RS-232, Keyboard Wedge
Decode Capability	Reads standard 1D
Drop Specification	Withstands multiple 1.5 m (5 ft) drops to concrete
Light Levels	0 to 100, 000 lux
Dimensions	62 mm x 169 mm x 82 mm (2.5 in x 6.6 in x 3.2 in)
Light Source	LED
