6 Voyager XP User Guide
1. Connect the appropriate interface cable to the device, then to the computer.
2. Turn the terminal/computer power back on. The scanner beeps.
3. Verify the scanner or cordless base operation by scanning a barcode from the
Sample Symbols in the back of this manual. The scanner beeps once.
For further RS485 settings, refer to RS485, page 12.

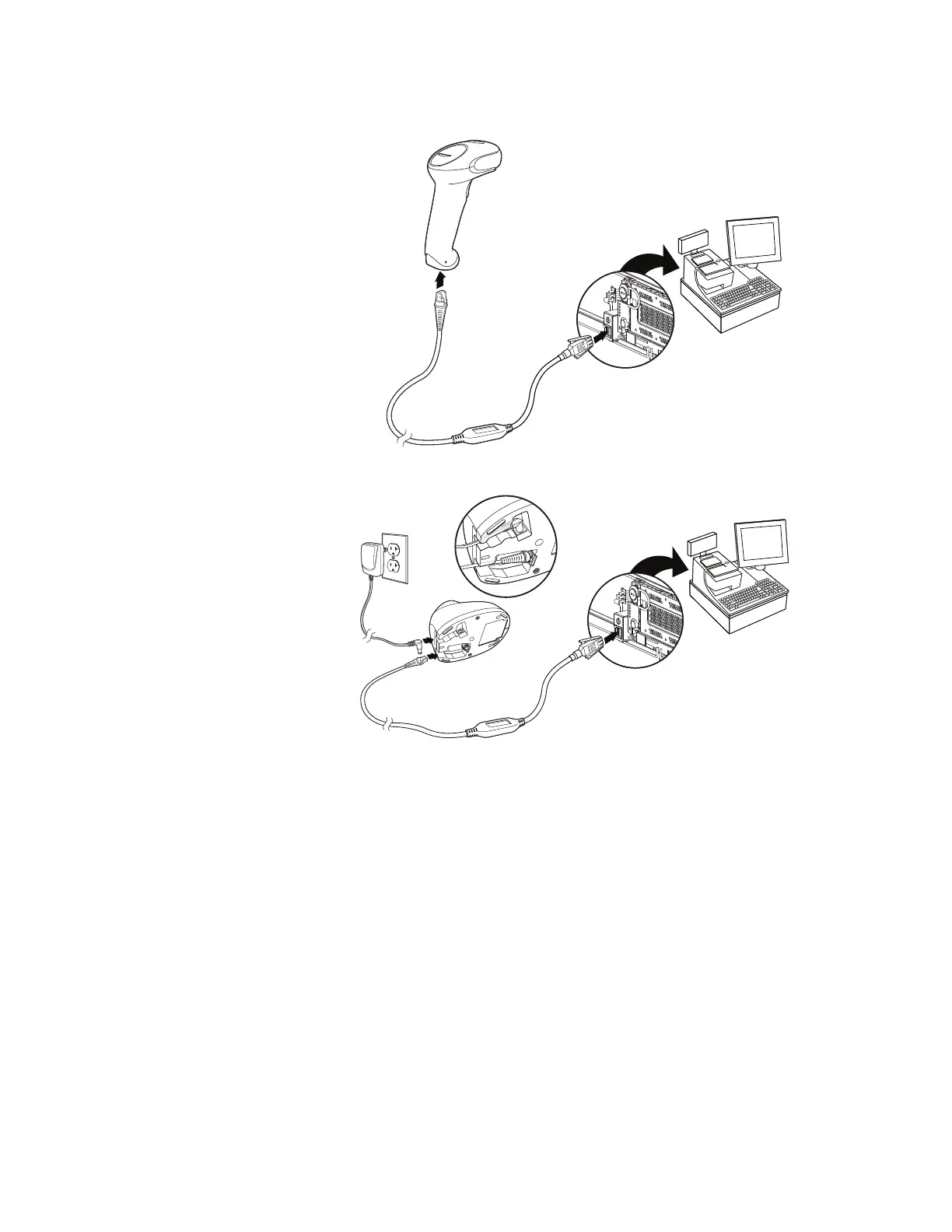

Corded Voyager XP 1470g
RS232 Serial Port Connection:
CCB01-010BT-V1N Base
RS485 Connection:
To Next Page
