5 Commissioning
Linear actuators MC250 • MC253 • MC500 • MC503
22 Version 2.1 - March 2011 Operating Manual
5 Commissioning
Electric shock due to live components!
If the power supply is switched off, there is danger of electric shock due to live
components.
• Prior to starting work ensure that the actuator is disconnected safely from the
mains power supply.
• Secure against unauthorised switching-on.
The operating parameters are set (116) on the coding switches. The coding
switches are located under the printed circuit board cover(33) in the actuator
casing (1).
4.4 Fit/remove cover on page 14
4.5.2 Remove printed circuit board cover on page 18
5.1 Operating parameters and coding switch positions
The operating parameters must be set with the coding switches before the linear
actuator can be operated.
Malfunctions due to incorrect switch position S1
Switch S1 must always be at "on".
• Ensure that switch S1 is at "on".

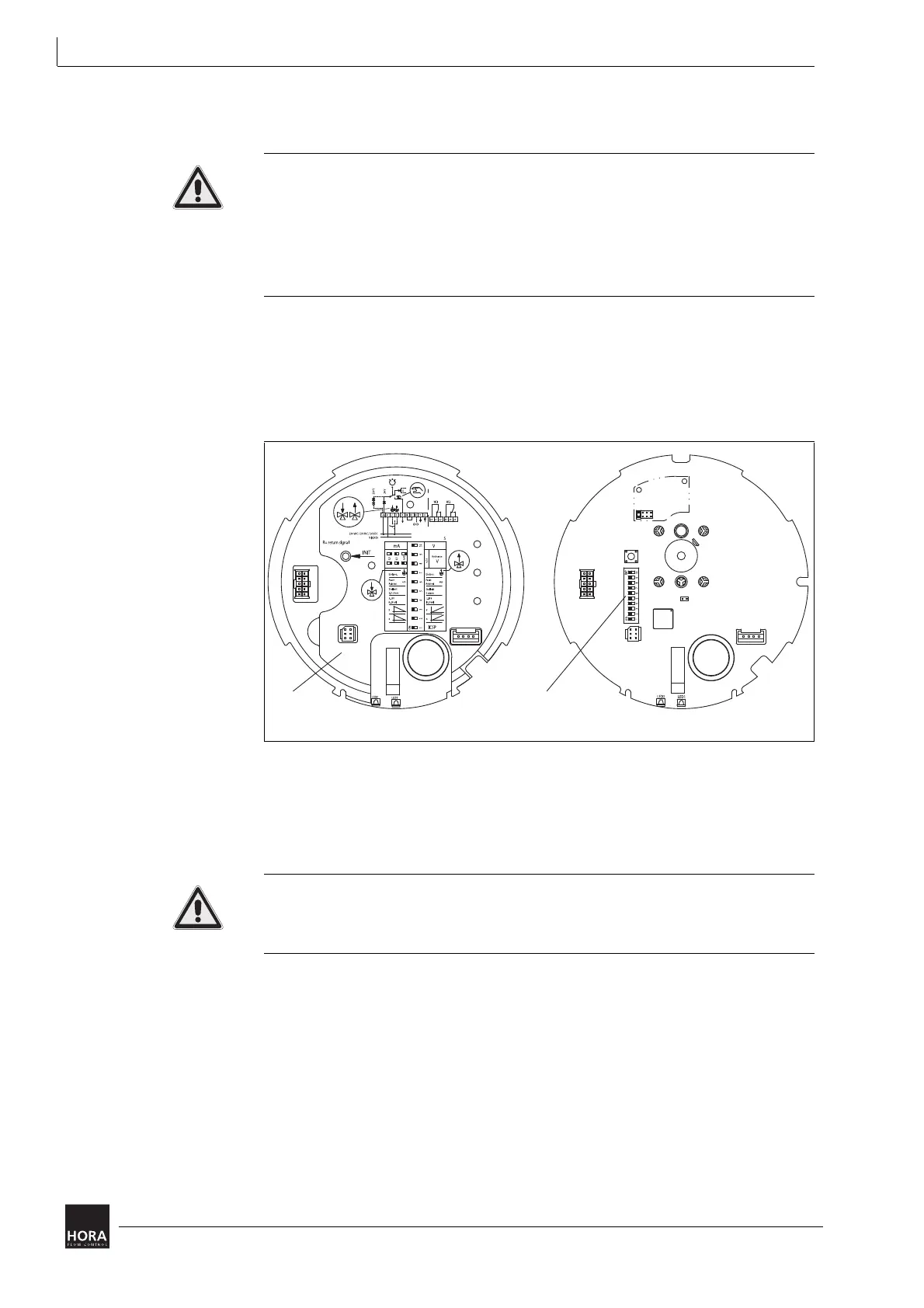

33 Printed circuit board cover 116 Coding switch
Diagram 15 Printed circuit board cover and coding switches
