5 Commissioning
Linear actuators MC250 • MC253 • MC500 • MC503
Operating Manual Version 2.1 - March 2011 27
5.9 Initialise the path-measuring system
Linear actuator starts up automatically!
Immediately upon connecting the power supply, the linear actuator moves
automatically to a path-measuring system reference point.
• Wait until the reference point has been reached and the linear actuator stops.
The incremental path-measuring system must be initialised upon completion of
the following tasks:
• In the event of initial start-up
• After repairs to the valve or the actuator
• After changing the valve or the actuator
The initialisation can be triggered in two ways.
Proceed as follows to initialise via the initialising button
Electric shock due to live components!
Once the power supply has been switched on, there is risk of electric shock due
to live components.
• Take care not to touch any live components.
• Take care not to cause a short circuit on a printed circuit board with the tool.
1 Open the cover (201).
4.4 Fit/remove cover on page 14
2 Ensure that the power supply is on.
3 Press the initialising button (118) and keep it depressed for at least 1 second.
Proceed as follows to initialise via the connecting terminals
1 Connect the power supply simultaneously to terminals 2 and 3. Ensure that the
power supply remains on for at least 1 second.
Diagram 8 on page 16

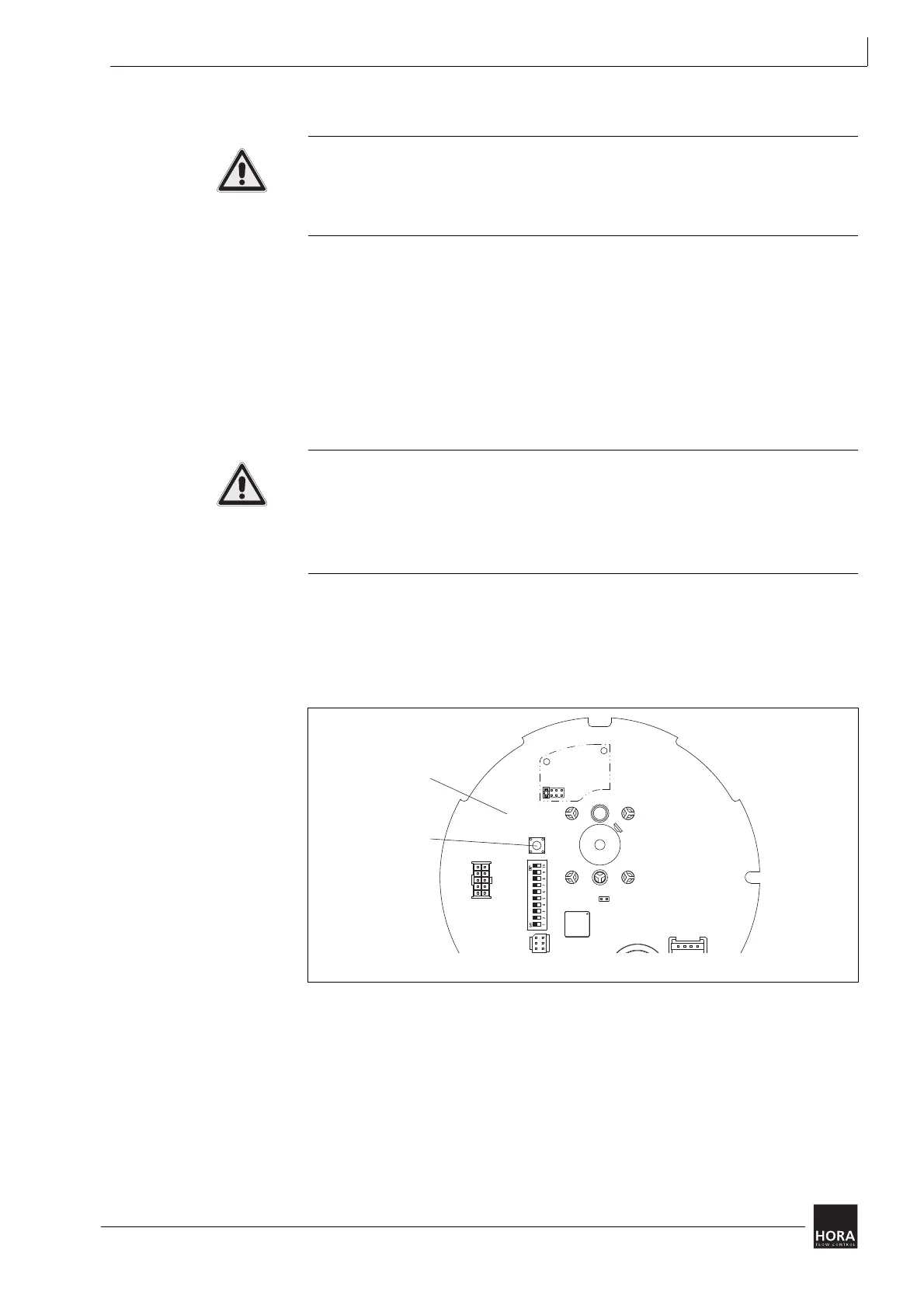

110 Main board 118 Initialising button
Diagram 20 Initialise the path-measuring system
