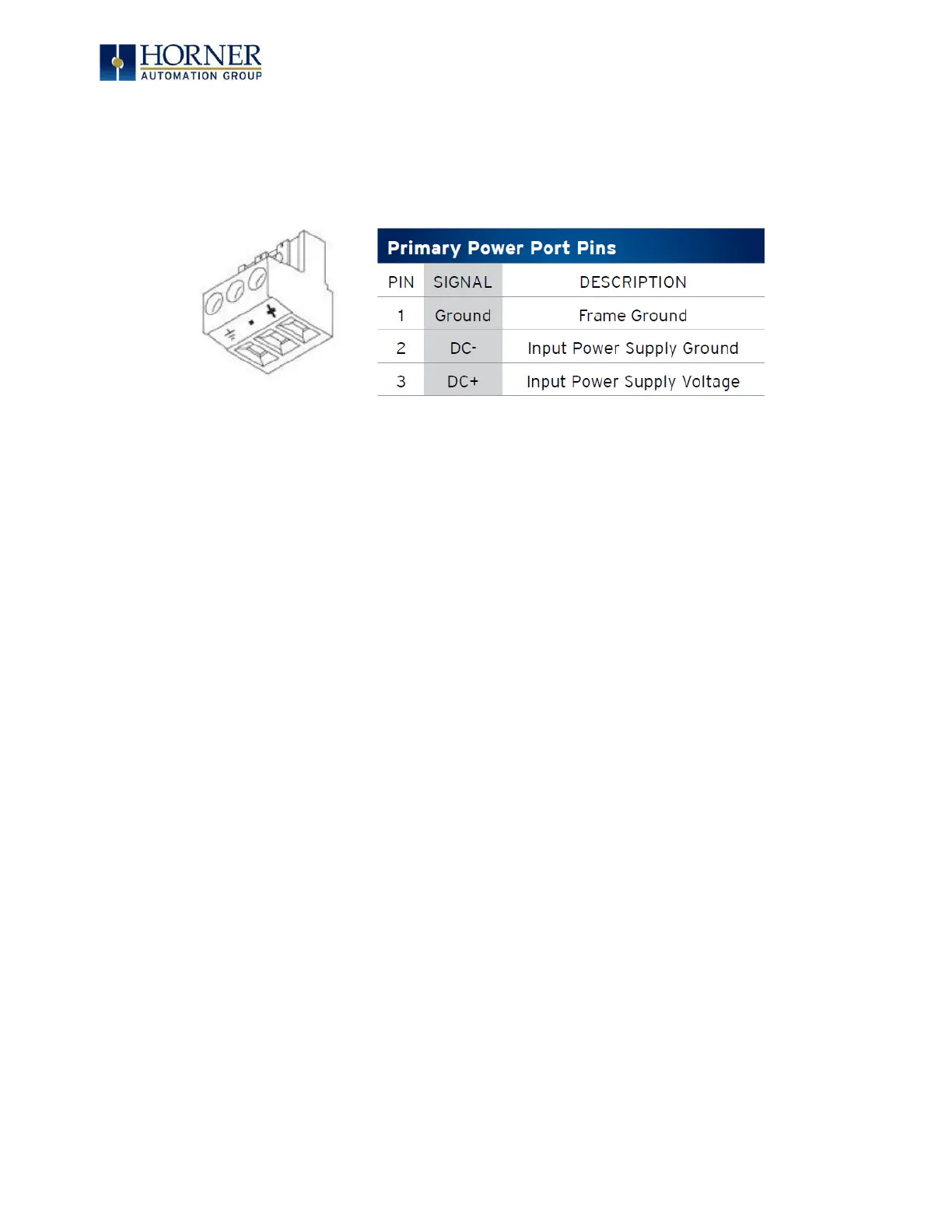

4.4 Primary Power Port
NOTE: The Primary Power Range is 10VDC to 30VDC.
DC Input / Frame
• Solid/Stranded Wire: 12-24 awg (2.5-0.2mm).
• Strip length: 0.28” (7mm).
• Torque, Terminal Hold-Down Screws: 4.5 – 7 in-lbs (0.50 – 0.78 N-m).
• DC- is internally connected to I/O V-, but is isolated from CAN V-. A Class 2 power
supply must be used.
POWER UP
1. OPTION: Attach ferrite core with a minimum of two turns of the DC+ and DC- signals
from the DC supply that is powering the controllers.
2. Connect to earth ground.
3. Apply recommended power.
