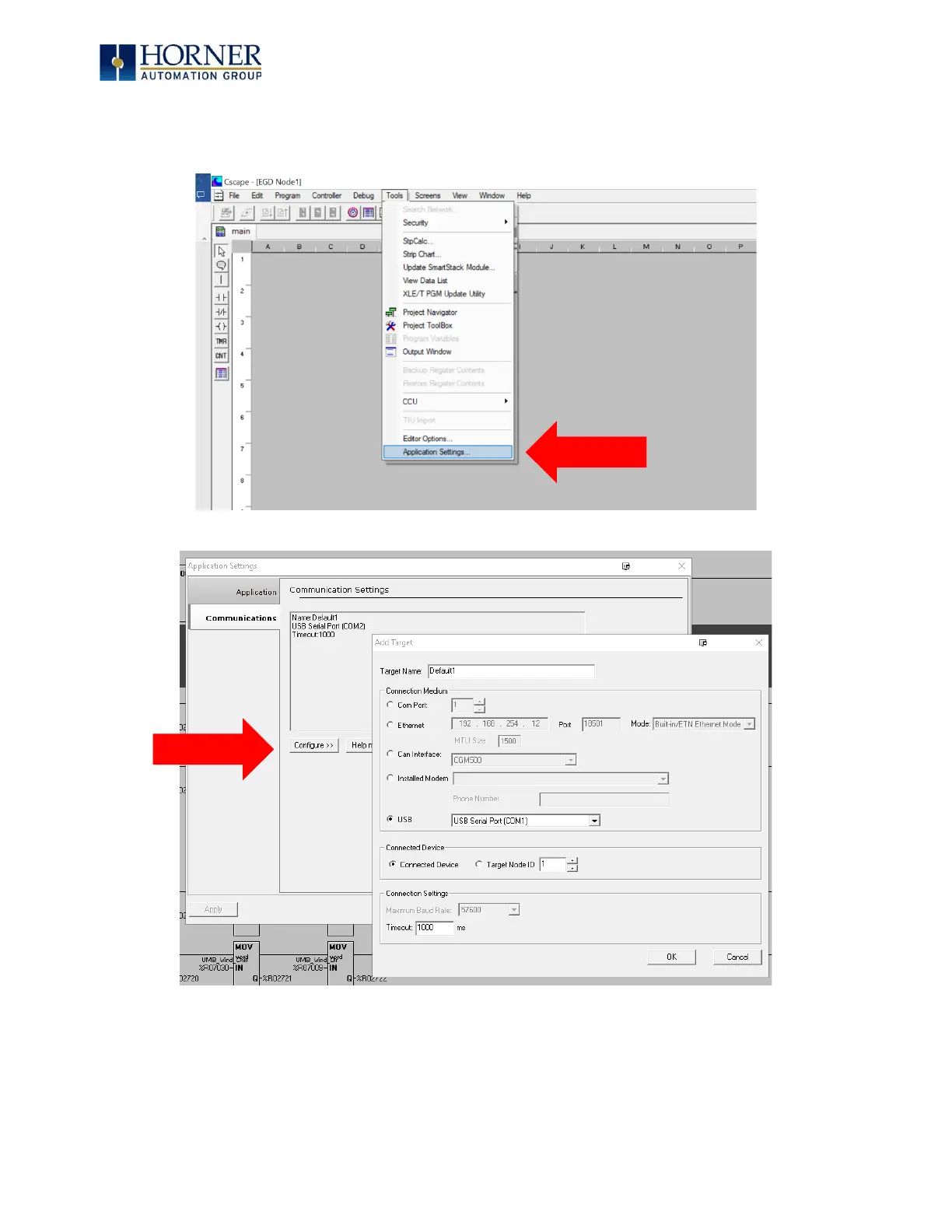

An alternate way to select the COM setting is to go to Cscape → Tools → Application Settings
→ Communications → Configure and choose connection method in Add Target.
Figure 7.3 – Cscape: Alternative Connection Method Screenshot
Figure 7.4 – Add Target Screenshot in Cscape
NOTE: The following fields, Target Name, Connection Medium, Connected Device, and
Connection Settings, need to be filled for communication configuration if Cscape Connection
Wizard was not used. Table 7.1 below explains the information needed in each field.
