Hydraulics
WARNING
Accidental hydraulic movements (e.g. caused
by passengers or children) can lead to severe
accidents and injuries!
¾ Secure or lock the control units on the tractor.
¾ Instruct persons to leave the slewing range of
foldable machine parts.
¾ Observe the notes on hydraulics and pressure
accumulator in chapter Safety and responsibility!
CAUTION
¾ Always plug in all hydraulic lines! Otherwise
components may get damaged because of
linked functions.
¾ Observe the notes on hydraulics and pressure
accumulator in chapter Safety and responsibility!

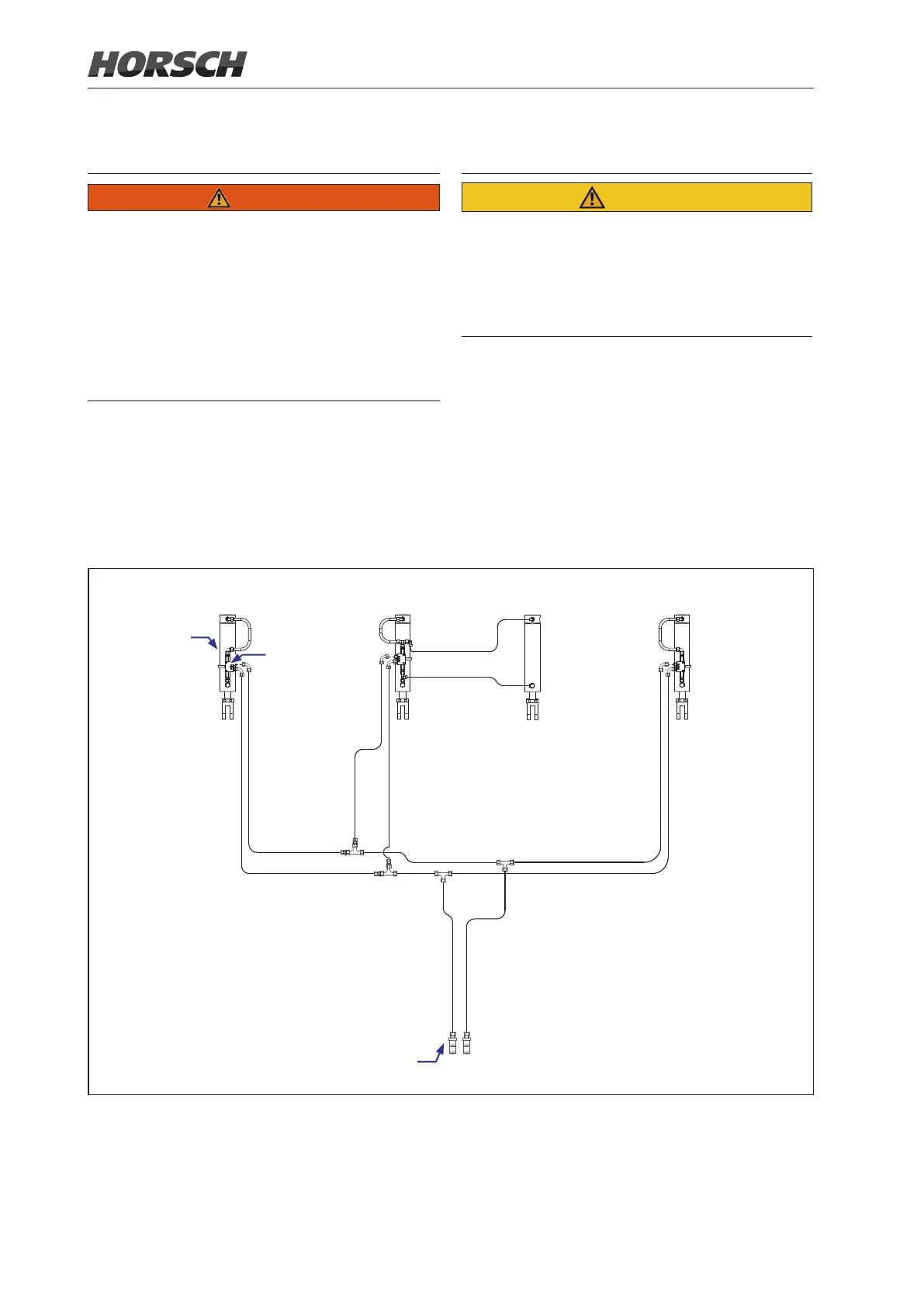

Sprinter 11 NT Lift/Lower
1 Lift/lower connection
2 Hydraulic cylinder Lift/Lower
3 Double acting lock valve
1
2
3
24
