horsch SPRINTER 11 NT - Lighting; Identification of Hydraulic Hoses

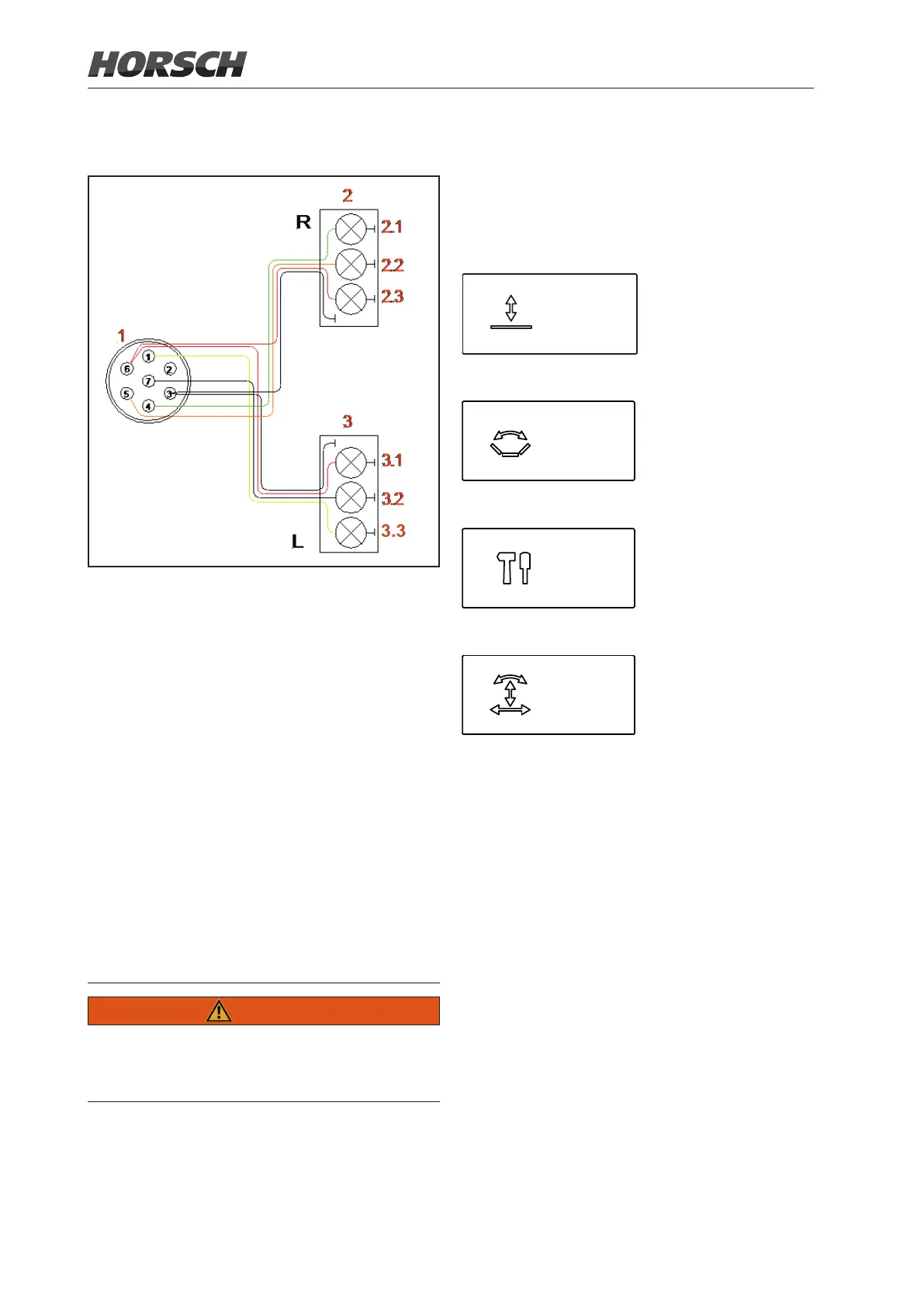

Lighting
1. 7-pin plug
2. Rear-light, right
2.1 Lamp, direction indicator
2.2 Lamp, tail-light
2.3 Lamp, brake light
3. Rear-light, left
3.1 Lamp, brake light
3.2 Lamp, tail-light
3.3 Lamp, direction indicator
Plugs and cable assignment
No. Desig. Colour Function
1 L yellow Indicator left
2 54 g --- ---
3 31 white Earth
4 R green Indicator right
5 58 R brown Rear-light, right
6 54 red Brake light
7 58 L black Rear-light, left
WARNING
Tra󰘲c accidents caused by defective lighting.
Check the lighting before setting o󰘯.
Check warning notices and lamps for cleanliness.
Identication of hydraulic hoses
The symbol is located above the hose that re-
quires pressure to bring the machine in transport
position (lift out, folding, etc.).
Machine lifting / lowering
Folding / unfolding the machine
Tools
Hydraulic valve block
