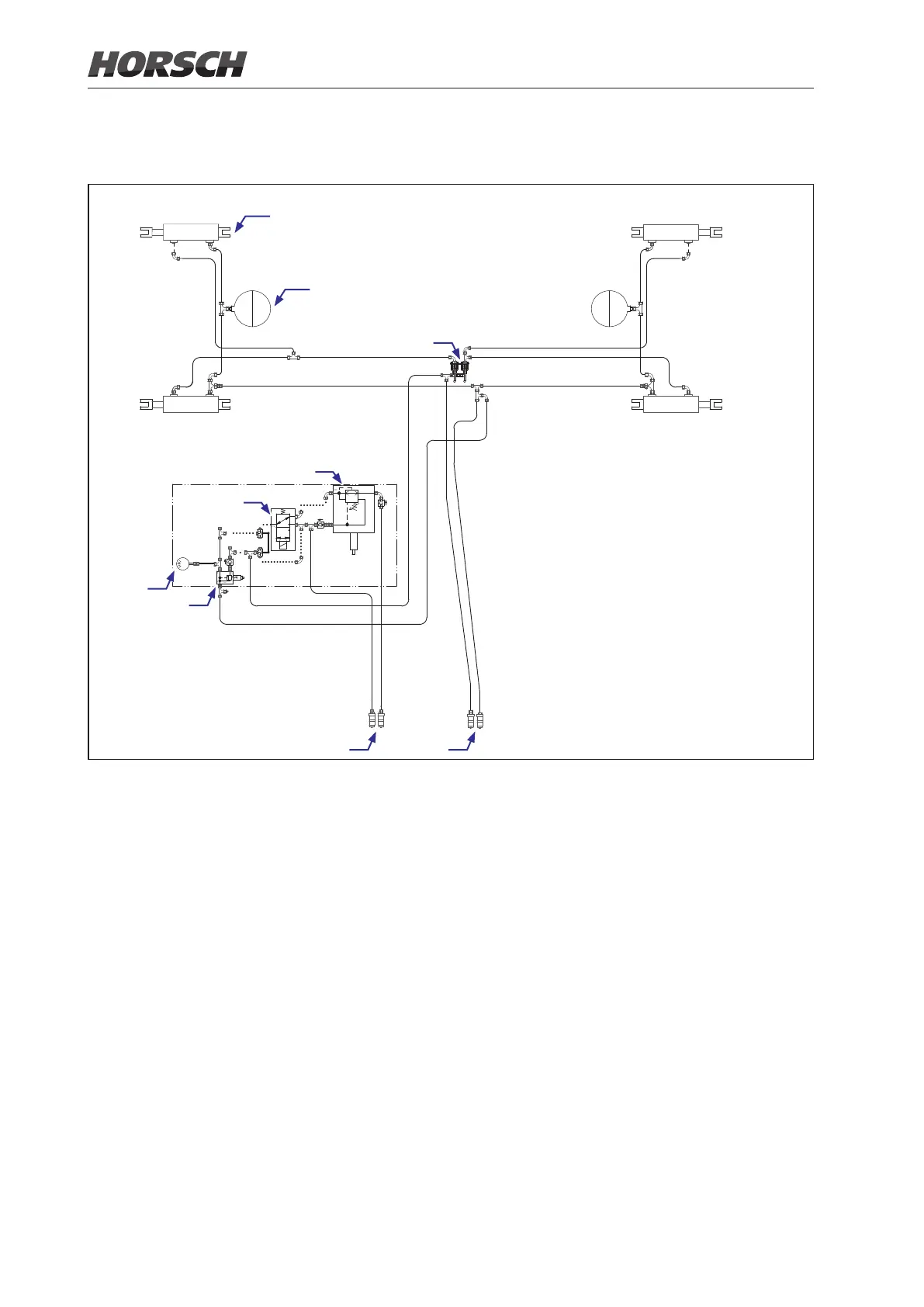

Sprinter 11/15 NT - Wings
1 Fan connections
2 Folding hydraulics connections
3 Pressure gauge
4 Pressure relief valve
5 Check valve
6 3-way rotary valve
7 2/2 directional valve
8 Pressure reducing valve
9 Ball valves
10 Pressure accumulator
11 Hydraulic cylinder for wings
1
2
3
T
00110052
P
A
U
Dr
E
1
3
4
7
8
9
10
11
5
6
2
