Howard M9 - Page 51

Technical Service Manual M9 Transfer Stretcher (M999-29, Version 11, June 2021) 49
4
2
1
3

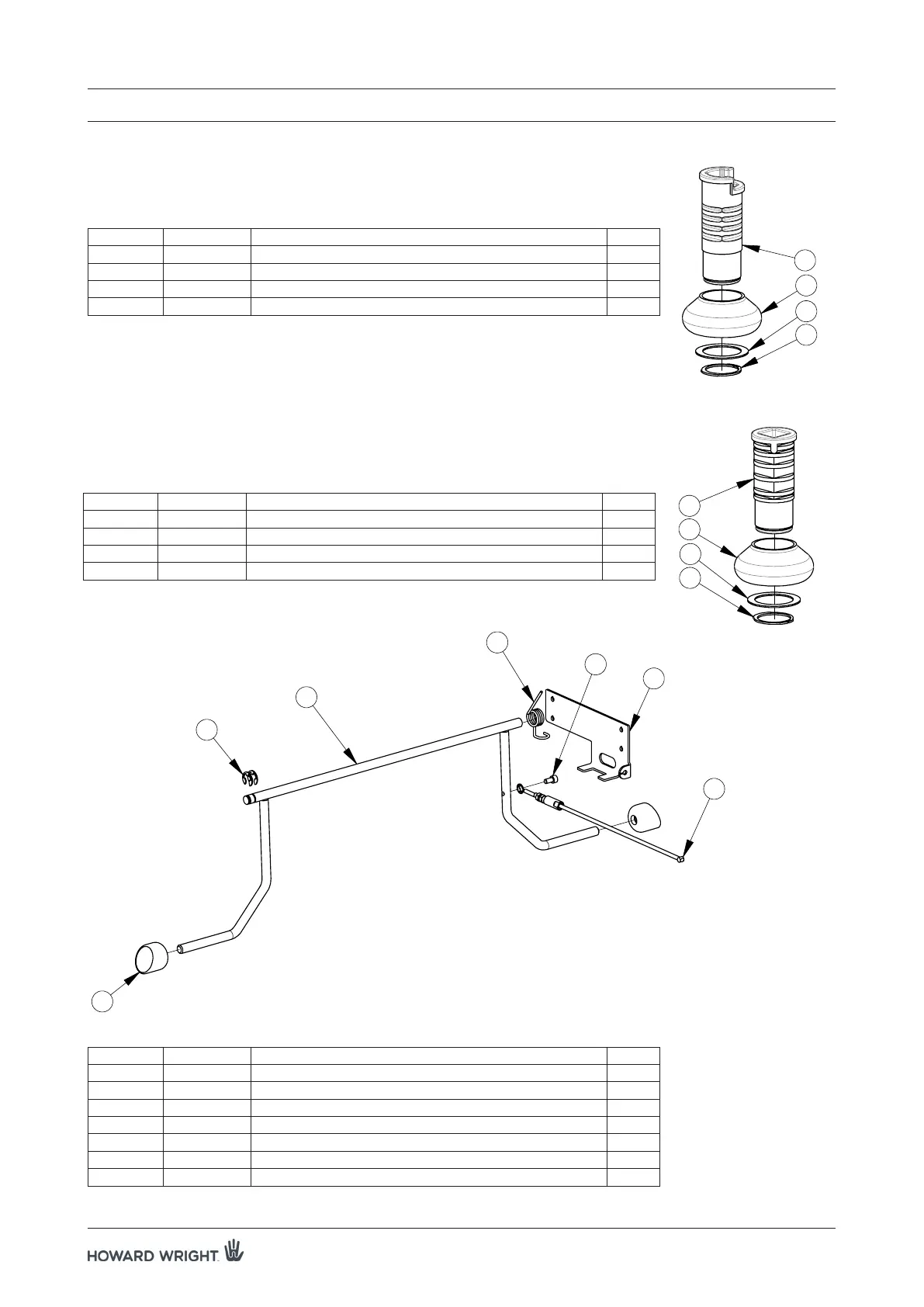

90mm HEAD END BUFFER GREY
ITEM NO.
PART NO.
DESCRIPTION
QTY.
1 EC0430 BUFFER WASHER D60d44x1.5
1
2 EC04313 BUFFER 90 GREY
1
3 FXRM775 DIN471-42mm EXT CIRCLIP Elison
1
4 M704-30 HEAD END CORNER INSERT
1
4
2
1
3
90mm FOOT END BUFFER GREY
ITEM NO. PART NO.
DESCRIPTION QTY.
1 EC0430 BUFFER WASHER D60d44x1.5 1
2
EC04313 BUFFER 90 GREY 1
3 FXRM775 DIN471-42mm EXT CIRCLIP Elison 1
4 M704-32 FOOT END CORNER INSERT 1
ITEM NO. PART NO. DESCRIPTION QTY.
1 EC0430 BUFFER WASHER D60d44x1.5 1
2 EC04313 BUFFER 90 GREY 1
3 FXRM775 DIN471-42mm EXT CIRCLIP Elison 1
4 M704-30 HEAD END CORNER INSERT 1
90MM HEAD END BUFFER GREY
ITEM NO. PART NO. DESCRIPTION QTY.
1 EC0430 BUFFER WASHER D60d44x1.5 1
2 EC04313 BUFFER 90 GREY 1
3 FXRM775 DIN471-42mm EXT CIRCLIP Elison 1
4 M704-32 FOOT END CORNER INSERT 1
90MM FOOT END BUFFER GREY
15. MISCELLANEOUS
2
6
3
7
1
5
4
ITEM NO.
PART NO.
DESCRIPTION QTY.
1 FXRM73 10mm E-CLIP DIN6799 BLACK 2
2 M705-43 QR TORSION SPRING 1
3 M905-02 QUICK RELEASE ASSY M9 TRANSFER 1
4 M905-100 QUICK RELEASE STOP PLATE M9 TRANSFER 3ED 1
5
M907-05 QR CABLE ASSY M9 TRANSFER 3ED 1
6 NBRM270 M6x12 SKT CAPSCREW ZP 1
7 PLRM545 M12 KNOB CPR RED 2
QUICK RELEASE ASSEMBLY
ITEM NO. PART NO. DESCRIPTION QTY.
1 FXRM73 10mm E-CLIP DIN6799 BLACK 2
2 M705-43 QR TORSION SPRING 1
3 M905-02 QUICK RELEASE ASSY M9 TRANSFER 1
4 M905-100 QUICK RELEASE STOP PLATE M9 TRANSFER 3ED 1
5 M907-05 QR CABLE ASSY M9 TRANSFER 3ED 1
6 NBRM270 M6x12 SKT CAPSCREW ZP 1
7 PLRM545 M12 KNOB CPR RED 2
