58 Technical Service Manual M9 Transfer Stretcher (M999-29, Version 11, June 2021)
18. AMENDMENTS

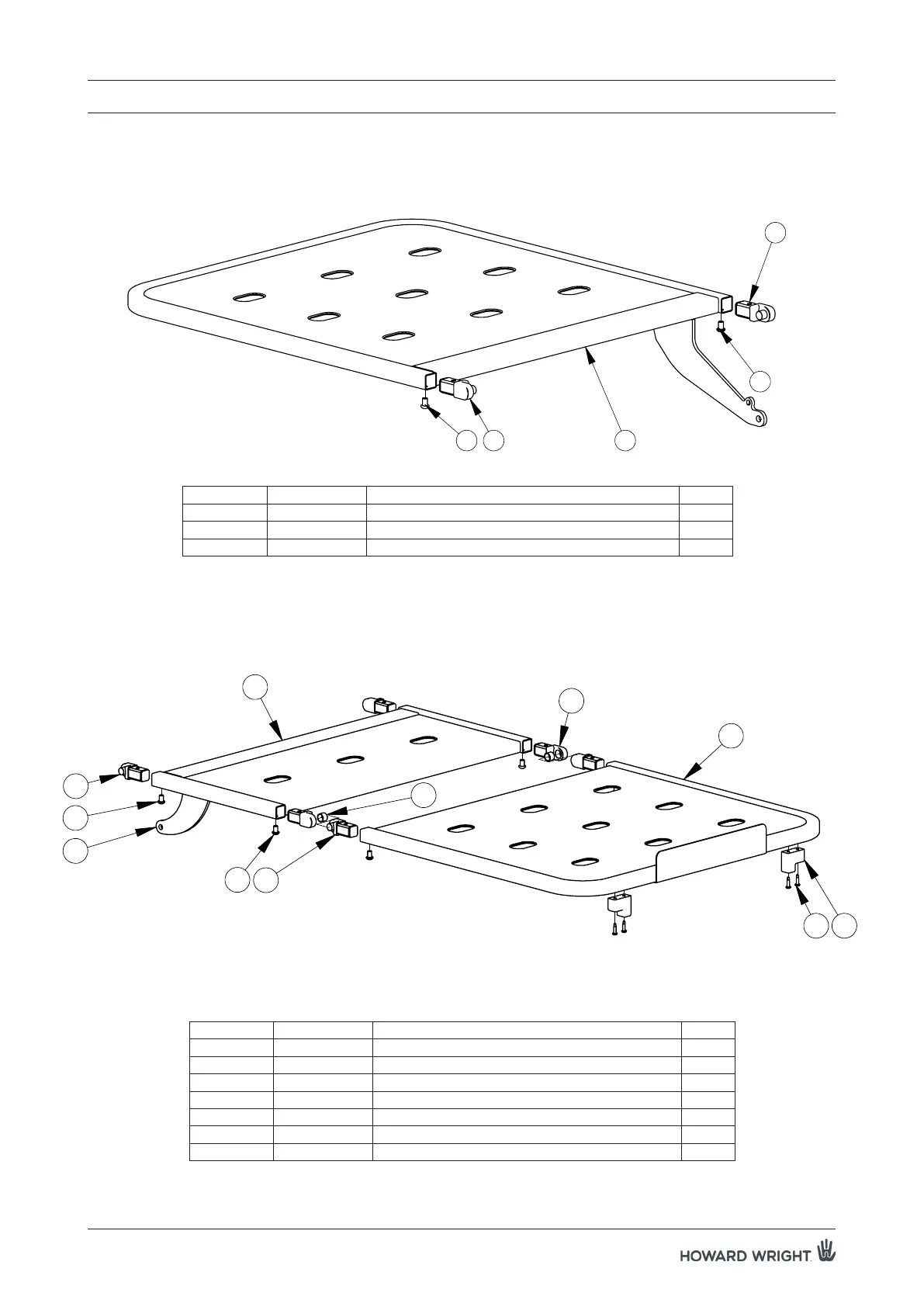

PRE JUNE 2015- TRANSFER BACKREST AND LEG SECTION COMPLETE
13 2
1
3
ITEM NO.
PART NO.
DESCRIPTION
QTY.
1
M704-931
PIVOT HINGE MALE
2
2
M905-03
BACKREST ASSEMBLY M9 TRANSFER
1
3
NBRM4032
M8x12 BUTTON SKT SCREW SS304
2
ITEM NO. PART NO. DESCRIPTION QTY.
1 M704-931 PIVOT HINGE MALE 2
2 M905-03 BACKREST ASSEMBLY M9 TRANSFER 1
3 NBRM4032 M8x12 BUTTON SKT SCREW SS304 2
BACKREST COMPLETE
7
2
5
5
1
1
1
3
7
6
4
ITEM NO.
PART NO.
DESCRIPTION
QTY.
1
M704-931
PIVOT HINGE MALE
6
2
M704-933
HINGE BUSH
2
3
M706-75
LEGRAISE SLIDE BLOCK STRETCHER
2
4
M906-07
LEGRAISE ASSY M9 TRANSFER
1
5
M906-08
KNEE BREAK ASSY M9 TRANSFER
1
6
NBRM3731
#10-16x20 PAN SQ TEKS HARD SS
4
7
NBRM4032
M8x12 BUTTON SKT SCREW SS304
6
ITEM NO. PART NO. DESCRIPTION QTY.
1 M704-931 PIVOT HINGE MALE 6
2 M704-933 HINGE BUSH 2
3 M706-75 LEGRAISE SLIDE BLOCK STRETCHER 2
4 M906-07 LEGRAISE ASSY M9 TRANSFER 1
5 M906-08 KNEE BREAK ASSY M9 TRANSFER 1
6 NBRM3731 #10-16x20 PAN SQ TEKS HARD SS 4
7 NBRM4032 M8x12 BUTTON SKT SCREW SS304 6
LEG SECTION ASSEMBLY COMPLETE
