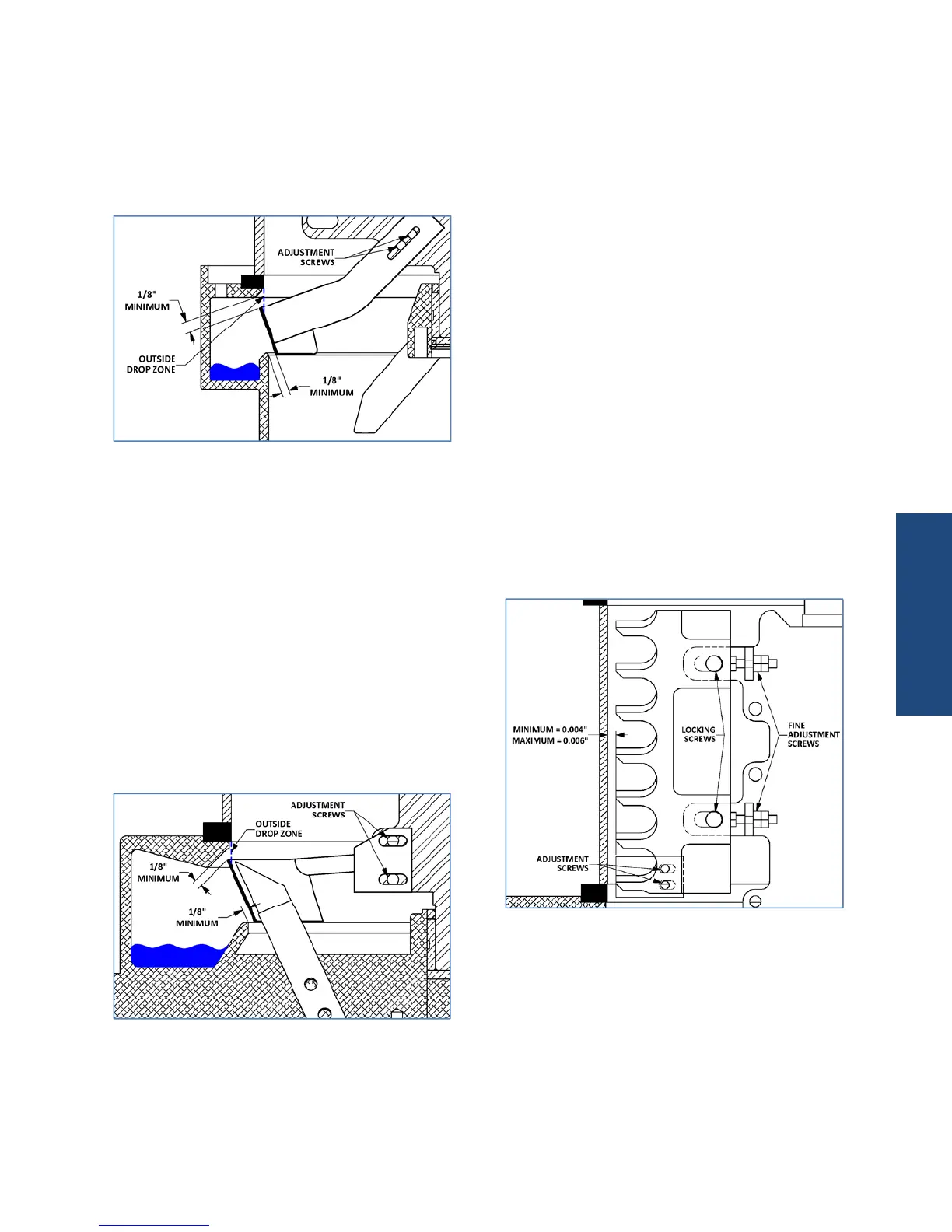

IceDeflector
TheIceDeflectorpreventsicefromdropping
intothewaterreturntrough.

(1000‐RLE)

AproperlyinstalledIceDeflectorshouldhave
thetopouteredgepositionedoutsideoftheice
dropzonetoensureallfallingicewillhittheIce
Deflector.
Thereshouldbeaminimum1/8”clearance
betweenthetopoftheIceDeflectorandthe
aluminumlipoftheBottomCasting
underthe
Evaporator.
Thereshouldalsobeaminimum1/8”cl earance 
betweentheouteredgeoftheIceDeflector
andtheBottomCasting.

(2000‐RLE&3000‐RLE)

The2000‐RLEand3000‐RLEalsofeature anIce
DeflectorScraper.Thisplasticarmclearsany
excessbuildupoficeontheIceDeflectorasit
passesbytheIceDeflectorScraper.
TheIceDeflectorshouldnevertouchtheIce
DeflectorScraperortheBottomCasting.
IceBlade
The
IceBladeshatterstheiceformedonthe
EvaporatorfreezingsurfaceastheMainShaft
rotates.
Iceharvestingproblemsareoftencausedby
improperrefrigerationsettings.Adjustingthe
IceBladeshouldbealastresortafterallother
meanshavebeenexpended.
Theclearancebetweentheoutermosttipofthe
Ice
BladeandtheEvaporatorfreezingsurface
mustbebetween0.004”and0.006”.

Asetoffeelergaugesshouldbeusedto
determinethedistancebetweentheIceBlade
andtheEvaporator.
Alwayschecktheclearanc e ata minimumof6
pointsonthecircumferenceoftheEvaporator.
