Hybrid/AC-coupled Inverter User Manual
© 2024 Hoymiles Power Electronics Inc. All rights reserved.
07

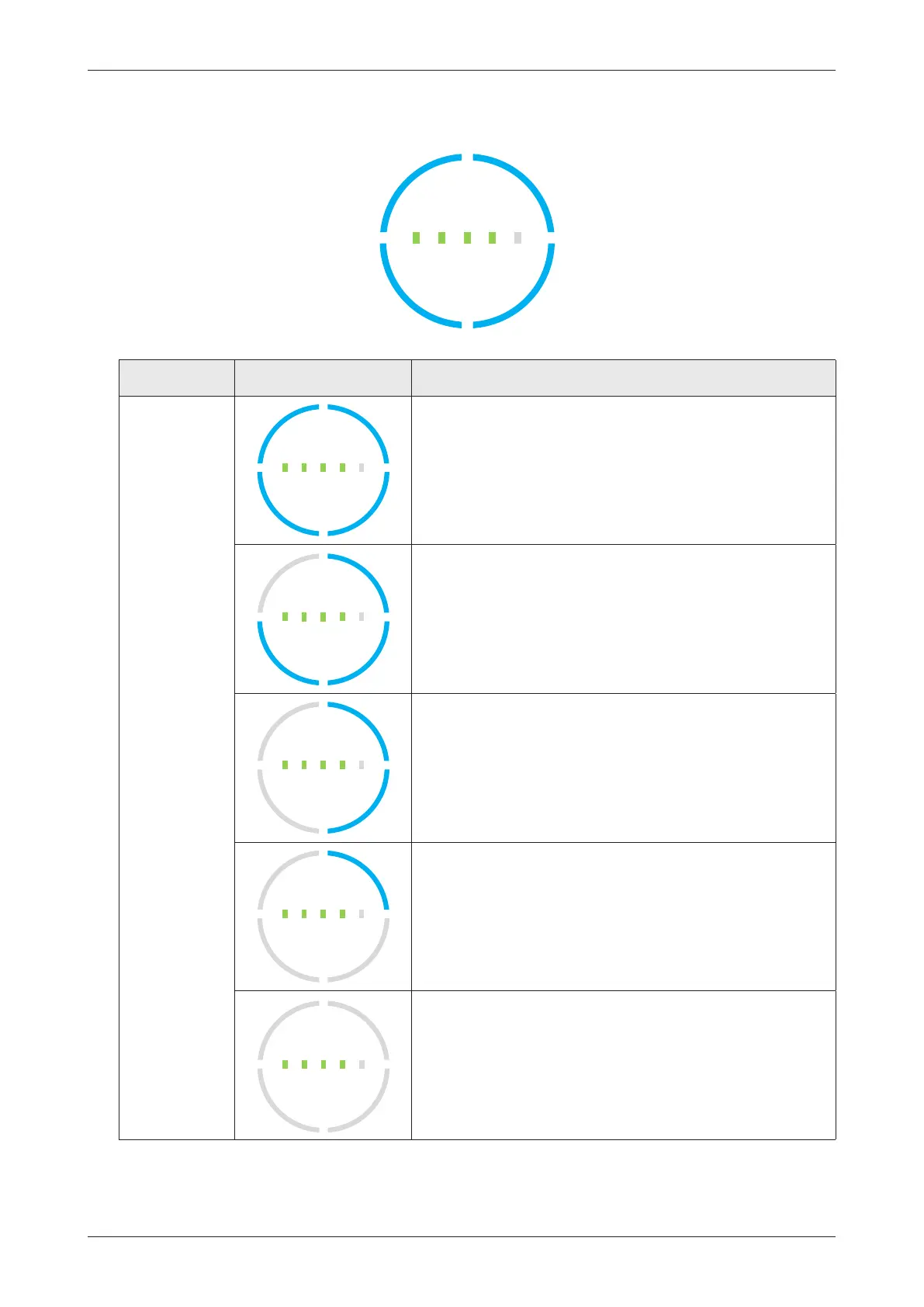

Indicator Status Explanation
SOC
Full circle LEDs on – SOC is 75-100%; battery is discharging or
in standby
Full circle LEDs blink – SOC is 75-100%; battery is charging
3/4 circle LEDs on – SOC is 50-75%; battery is discharging or
in standby
3/4 circle LEDs blink – SOC is 50-75%; battery is charging
2/4 circle LEDs on – SOC is 25-50%; battery is discharging or
in standby
2/4 circle LEDs blink – SOC is 25-50%; battery is charging
1/4 circle LED on – SOC is 0-25%; battery is discharging or in
standby
1/4 circle LED blinks – SOC is 0-25%; battery is charging
Full circle LEDs off – No BMS communication
LED Indicators
RUN PV AC COM FAULT
RUN PV AC COM FAULT
RUN PV AC COM FAULT
RUN PV AC COM FAULT
RUN PV AC COM FAULT
RUN PV AC COM FAULT
