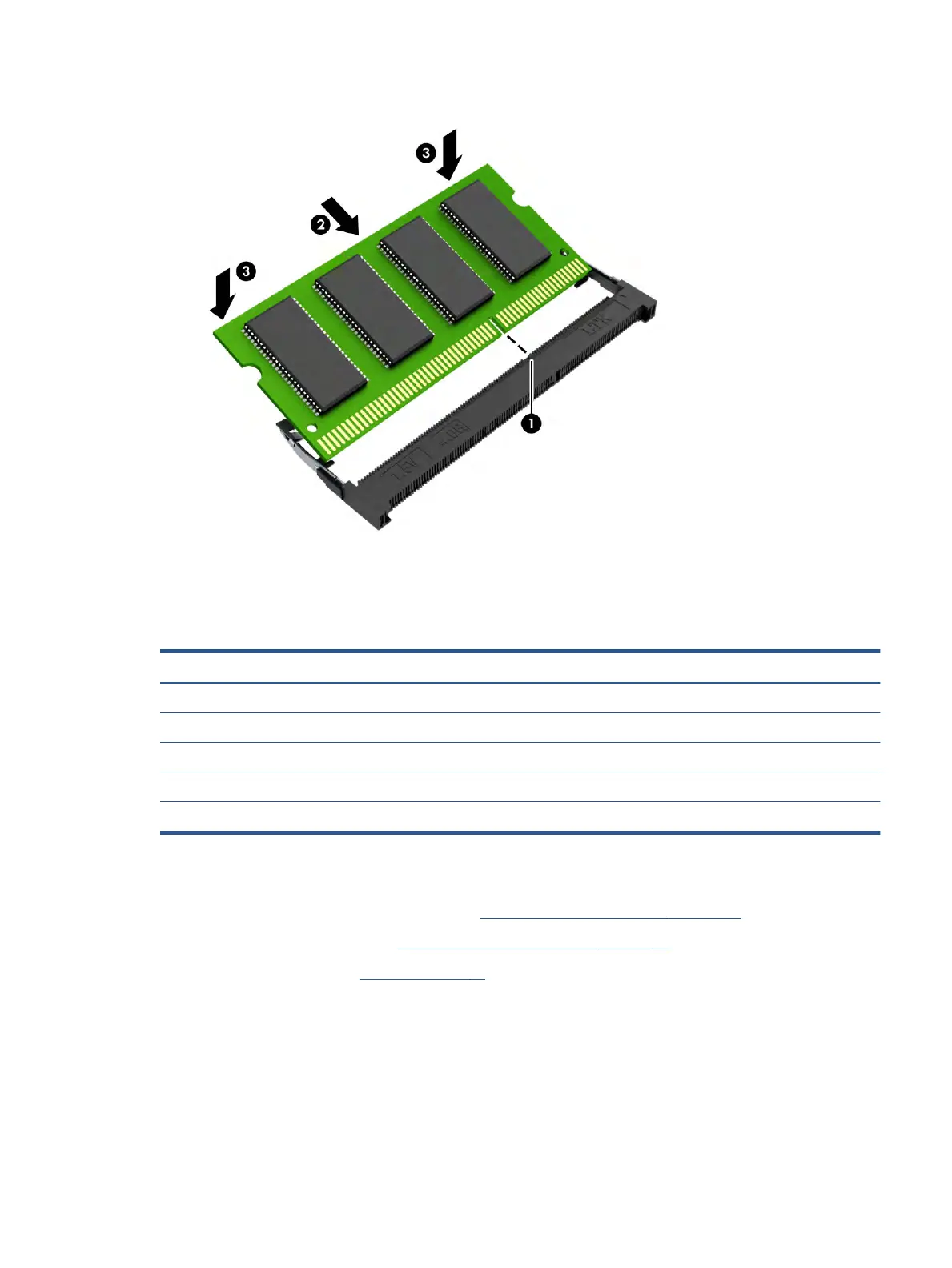

2. Press down on the module until the side retention clips snap into place (3).
Solid-state drive
To remove the M.2 solid-state drive, use this procedure and illustration.
Table 5-4 Solid-state drive descriptions and part numbers
Description Spare part number
1 TB L85370-005
512 GB L85364-005
256 GB, PCIe L85354-005
256 GB, PCIe + 16 GB Optane memory L85356-005
128 GB, PCIe, TLC M06792-005
Before removing the solid-state drive, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 32).
2. Remove the bottom cover (see Bottom cover and rubber feet on page 32).
3. Remove the battery (see Battery on page 34).
Remove the solid-state drive:
1. Remove the Phillips M2.0 × 2.5 screw (1) that secures the drive to the computer.
Component replacement procedures 37
