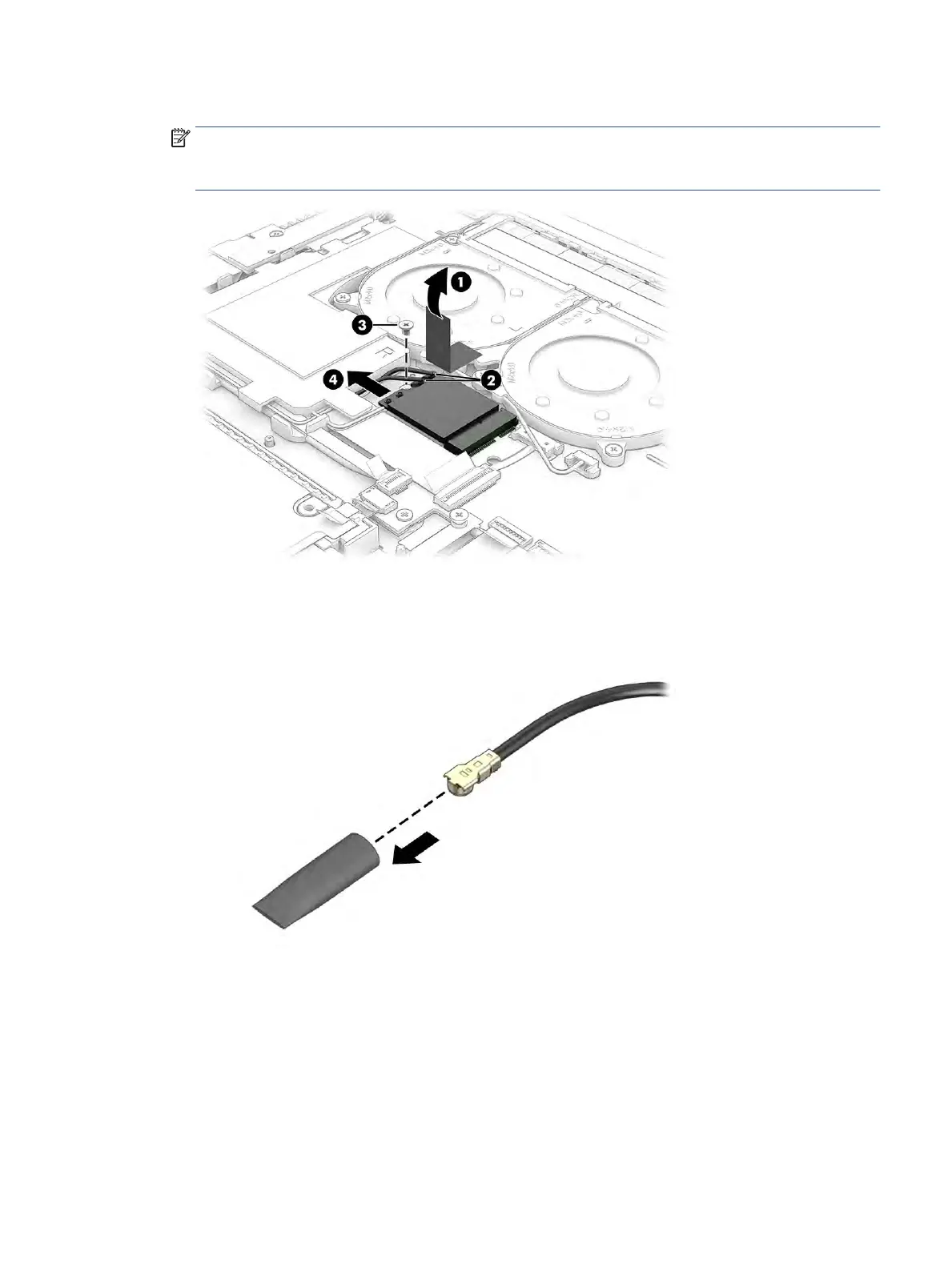

3. Remove the Phillips M2.0 × 2.5 screw (3), and then remove the WLAN module (4).
NOTE: Models have either one or two WLAN antennas. On models with two antennas, the #1 white
WLAN antenna cable connects to the WLAN module #1 Main terminal. The #2 black WLAN antenna cable
connects to the WLAN module #1 Aux terminal.
4. If the WLAN antenna is not connected to the terminal on the WLAN module, install a protective sleeve on
the antenna connector, as shown in the following illustration.
Reverse this procedure to install the WLAN module.
Hard drive
To remove the hard drive, use this procedure and illustration.
Component replacement procedures 39
