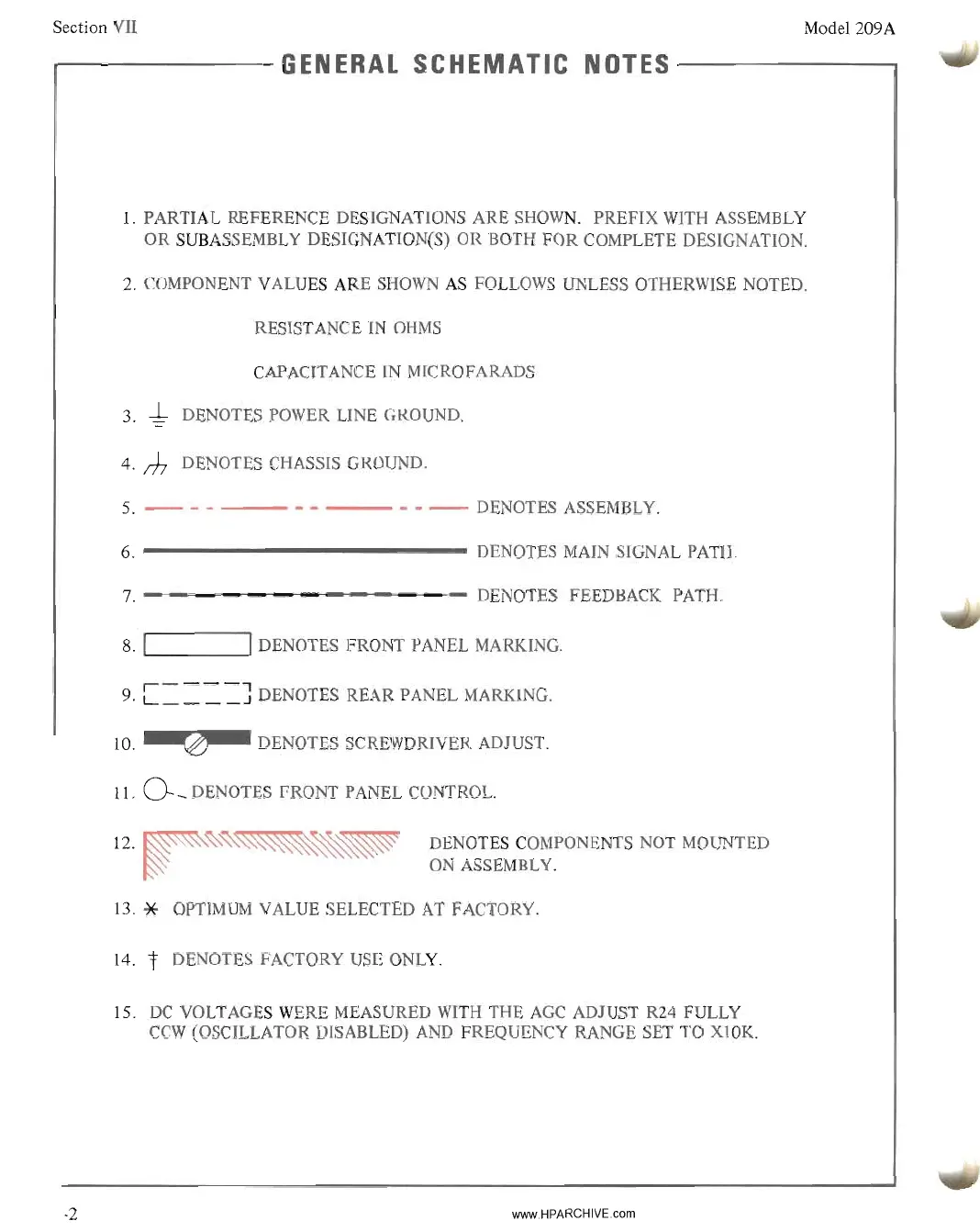

Section VII
Mode1209A
.--------
GENERAL
SCHEMATIC
NOTES
-------.,
1. PARTIAL REFERENCE DESIGNATIONS ARE SHOWN. PREFIX WITH ASSEMBLY
OR SUBASSEMBLY DESIGNATION(S) OR BOTH
FOR
COMPLETE DESIGNATION.
2. COMPONENT VALUES ARE
SHOWN
AS
FOLLOWS UNLESS OTHERWISE NOTED.
RESISTANCE IN
OHMS
CAPACITANCE IN MICROFARADS
3.
~
DENOTES POWER LINE GROUND.
4.
rh
DENOTES CHASSIS GROUND.
5.
------
---
- -
--
DENOTES ASSEMBLY.
6.
-------------
DENOTES MAIN SIGNAL PATH.
7.
- - - - - - - - - - - - - DENOTES FEEDBACK PATH.
8. 1 1DENOTES FRONT PANEL MARKING.
9.
C====J
DENOTES REAR PANEL MARKING.
10.
DENOTES SCREWDRIVER ADJUST.
11.
0 _DENOTES FRONT PANEL CONTROL.
DENOTES COMPONENTS NOT MOUNTED
ON ASSEMBLY.
7-2
13. * OPTIMUM VALUE SELECTED AT FACTORY.
14.
t DENOTES FACTORY USE ONLY.
15.
DC
VOLTAGES WERE MEASURED WITH THE
AGC
ADJUST R24 FULLY
CCW
(OSCILLATOR DISABLED) AND FREQUENCY RANGE SET TO XlOK.
