HP 2530 SERIES User Manual

A-11
Specifications
Twisted-Pair Cable/Connector Pin-Outs
Straight-through Twisted-Pair Cable for
10 Mbps or 100 Mbps Network Connections
Because of the Auto-MDIX operation of the 10/100 ports on the switch, for all
network connections, to PCs, servers or other end nodes, or to hubs or other
switches, you can use straight-through cables.
If any of these ports are given a fixed configuration, for example 100 Mbps/
Full Duplex, the ports operate as MDI-X ports, and straight-through cables
must be then used for connections to PC NICs and other MDI ports.

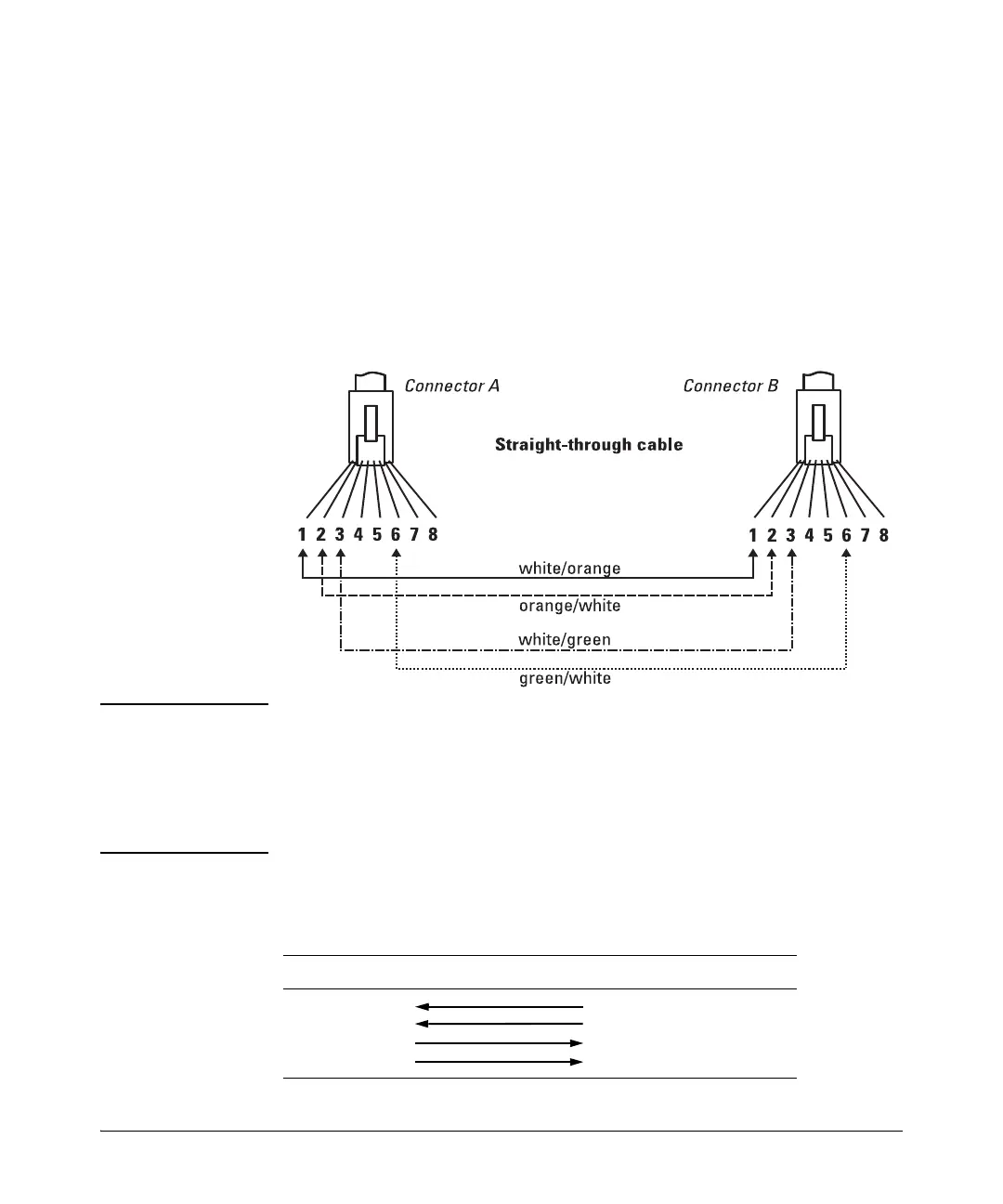

Cable Diagram
Note Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 1 and 2
on connector “B”.
Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 3 and 6
on connector “B”.
Pins 4, 5, 7, and 8 are not used in this application, although they may be wired
in the cable.
.
Pin Assignments
Switch End (MDI-X) Computer, Transceiver, or
Other End
Signal Pins Pins Signal
receive +
receive -
transmit +
transmit -
1
2
3
6
1
2
3
6
transmit +
transmit -
receive +
receive -

HP 2530 SERIES Specifications

General

Model	HP 2530 Series
Category	Network Switch
Ports	8, 24, or 48 ports
Routing Protocol	Static routes
Management	Web interface, CLI, SNMP
Power Supply	Internal
PoE	Available on some models
Jumbo Frame Support	Yes
VLAN Support	Yes
Security Features	Port security, 802.1X
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0°C to 45°C
