Installing the Switch
Sample Network Topologies
Sample Network Topologies
This section shows a few sample network topologies for implementing the
Switches. For more topology information, see the HP networking products
Web site, www.hp.com/networking.
As a Desktop Switch Implementing PoE

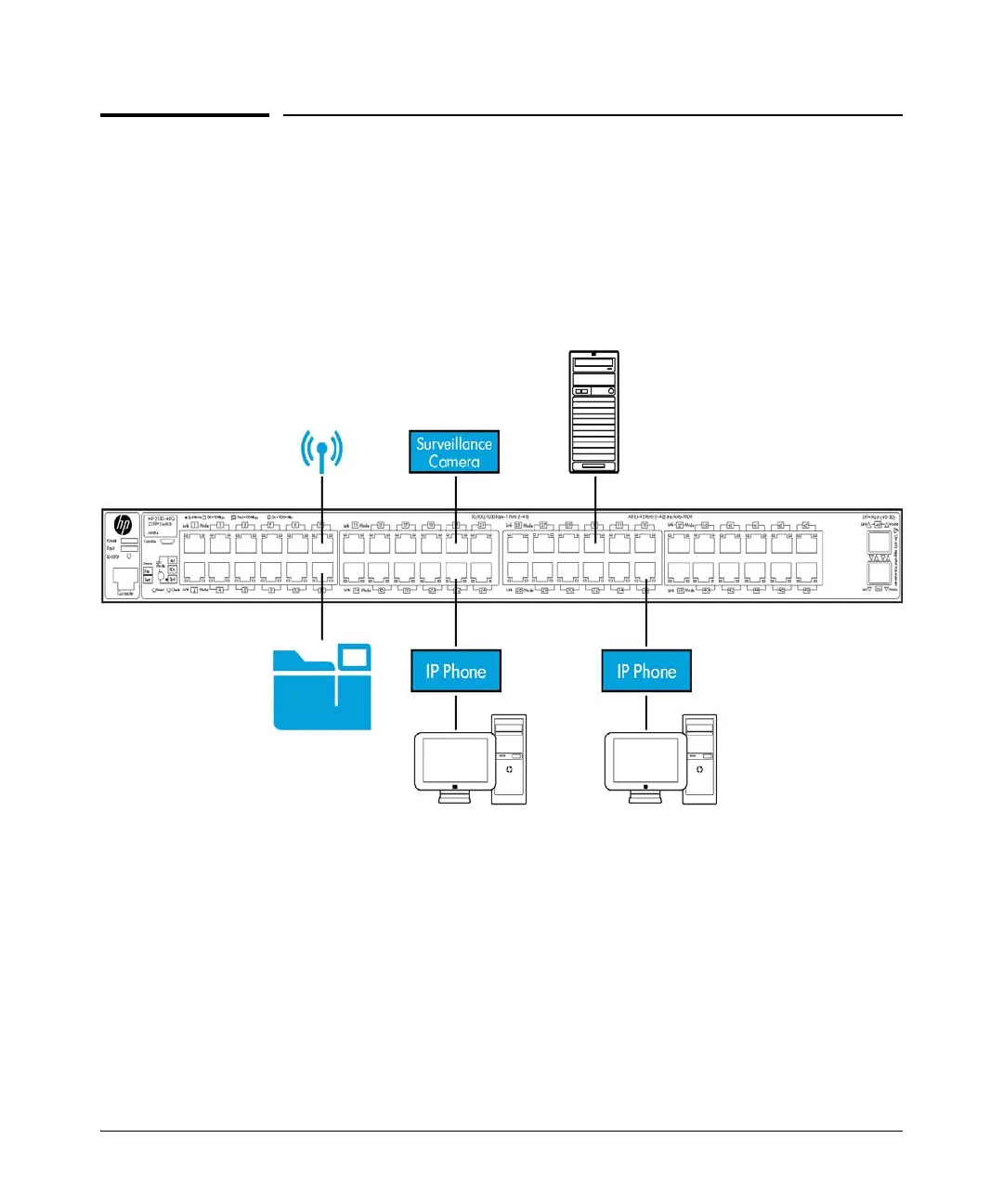

Figure 2-10. Basic desktop configuration
The 2530-24G-PoE+-2SFP+, 2530-48G-PoE+-2SFP+ switches are designed to
be used as desktop switches to which end nodes, printers and other
peripherals, and servers are directly connected, as shown in the above
illustration. The switches can also supply PoE+ power to end devices such as
IP telephones.

HP 2530 SERIES Specifications

General

Model	HP 2530 Series
Category	Network Switch
Ports	8, 24, or 48 ports
Routing Protocol	Static routes
Management	Web interface, CLI, SNMP
Power Supply	Internal
PoE	Available on some models
Jumbo Frame Support	Yes
VLAN Support	Yes
Security Features	Port security, 802.1X
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0°C to 45°C
