HP 2530 SERIES User Manual

A-13
Specifications
Twisted-Pair Cable/Connector Pin-Outs
Straight-Through Twisted-Pair Cable for
1000 Mbps Network Connections
1000BASE-T connections require that all four pairs of wires be connected.

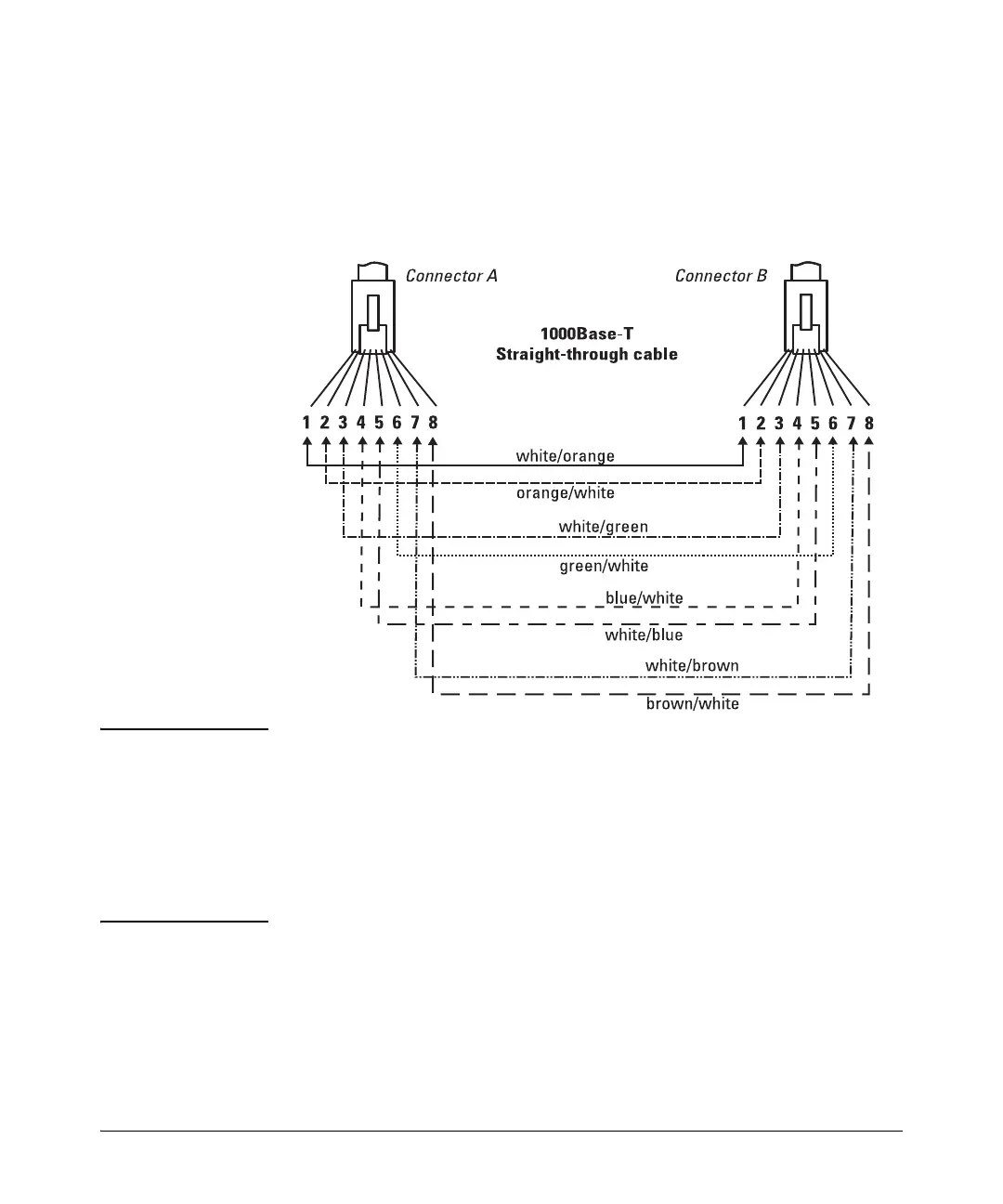

Cable Diagram
Note Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 1 and 2
on connector “B”.
Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 3 and 6
on connector “B”.
Pins 4 and 5 on connector “A” must be wired as a twisted pair to pins 4 and 5
on connector “B”.
Pins 7 and 8 on connector “A” must be wired as a twisted pair to pins 7 and 8
on connector “B”.
.
Pin Assignments
For 1000BASE-T operation, all four pairs of wires are used for both transmit
and receive.

HP 2530 SERIES Specifications

General

Model	HP 2530 Series
Category	Network Switch
Ports	8, 24, or 48 ports
Routing Protocol	Static routes
Management	Web interface, CLI, SNMP
Power Supply	Internal
PoE	Available on some models
Jumbo Frame Support	Yes
VLAN Support	Yes
Security Features	Port security, 802.1X
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0°C to 45°C
