Installation procedures—All deployments42
Connecting the SCSI cables
To connect the MSA to the storage enclosures, use standard VHDCI SCSI cables included in the
shipping carton with each storage enclosure.
Recommended SCSI cable connections
HP recommends installing additional SCSI I/O modules and connecting storage enclosures in the
same sequence as the pre-assigned box numbers, as illustrated in Figure 2.

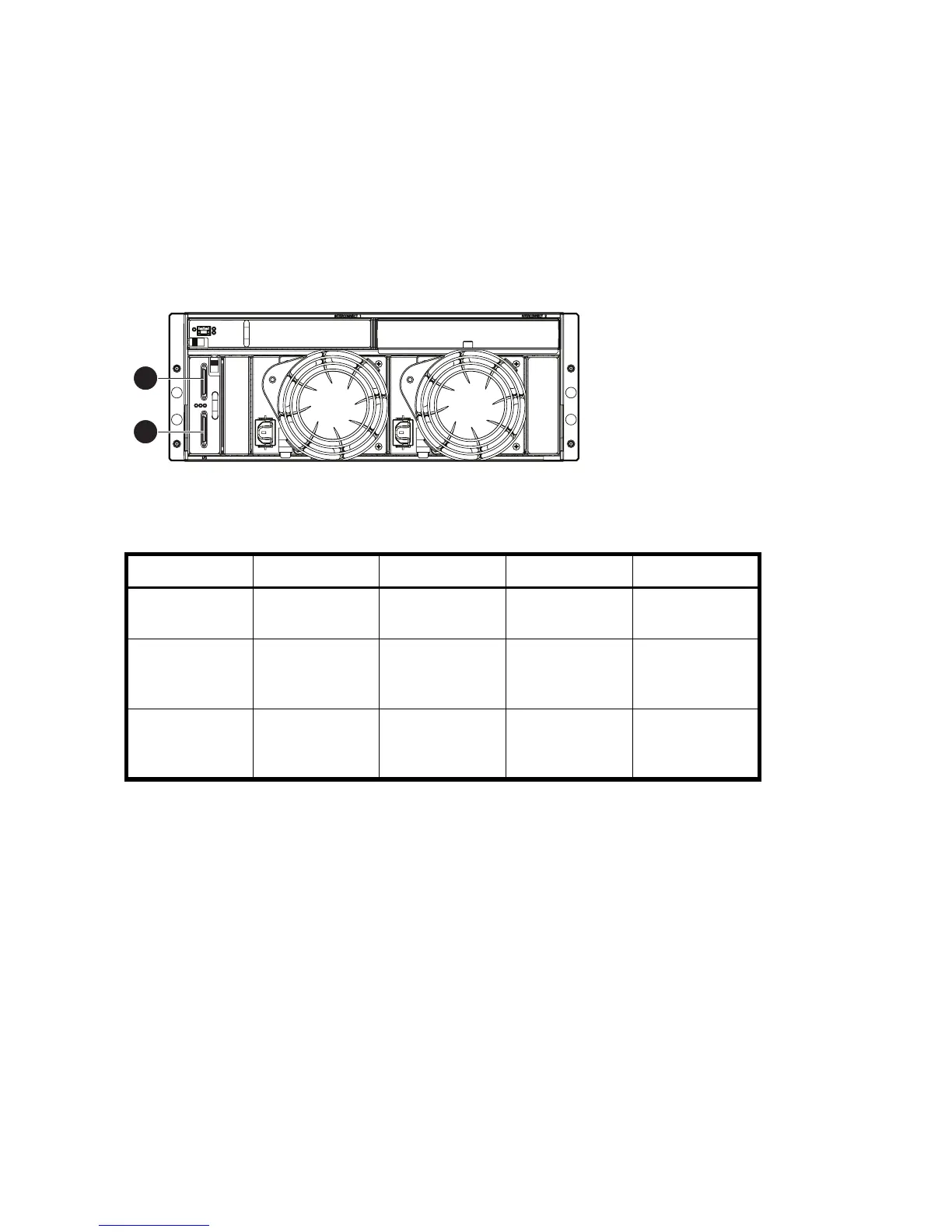

Figure 2 SCSI I/O modules, bus numbers, and box numbers
Go to Table 13 ”Hard drive information” on page 112 to record information about each storage
enclosure.
Item Description Bus Port Box number
– MSA1000
enclosure
0A1
1
(top port)
External
SCSI storage
enclosure
1A2
2
(bottom port)
External
SCSI storage
enclosure
2B3
15415
1
2
