HP StorageWorks 1000 Modular Smart Array installation guide 45
Connecting Fibre Channel cables in a singlepath configuration
Figure 4 shows the Fibre Channel cable connections of an MSA1000 being accessed by two
servers in a singlepath configuration.

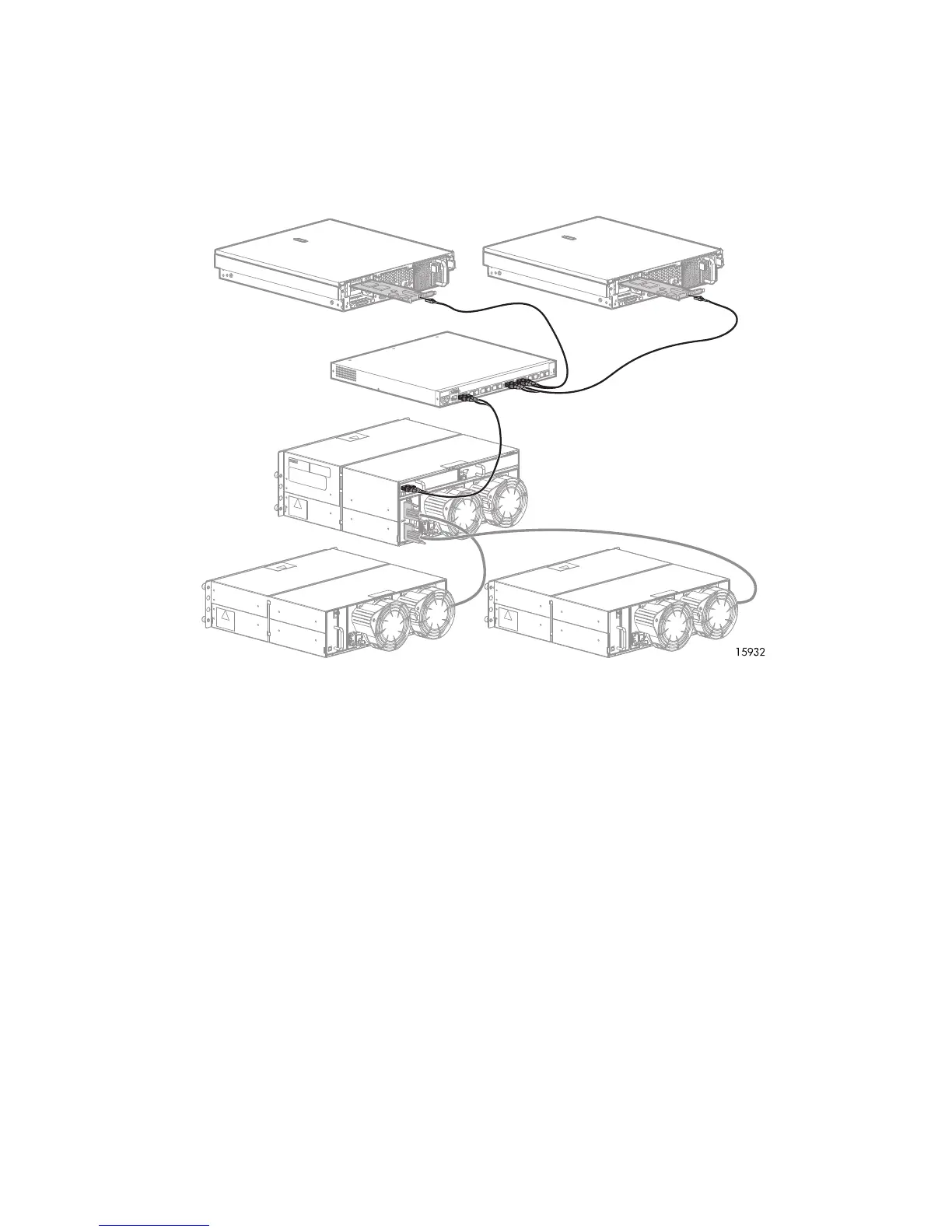

Figure 4 Sample Fibre Channel cable connections, singlepath configuration
