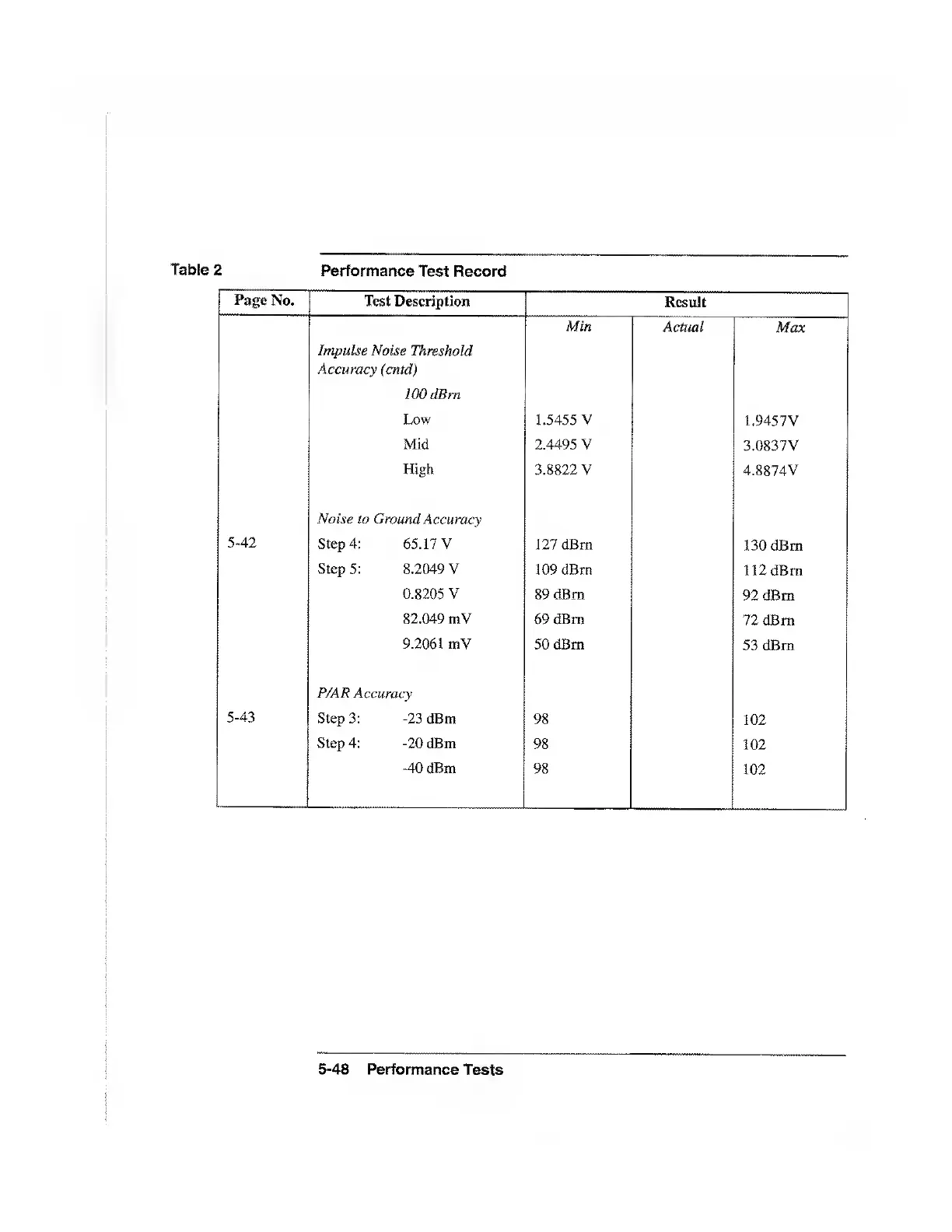

HP 4934A - Page 112

Table 2 Performance Test Record
Page No.
Test Description
Result
Min
Actual
Max
Impulse Noise Threshold
Accuracy (cntd)
100 dBm
Low
1.5455 V
1.9457V
Mid
2.4495 V
3.0837V
High
3.8822 V
4.8874V
Noise to Ground Accuracy
5-42
Step 4: 65.17 V
127 dBm
130 dBm
Step 5: 8.2049 V
109 dBm
112 dBm
0.8205 V 89 dBm
92 dBm
82.049 mV
69 dBm
72 dBm
9.2061 mV
50 dBm
53 dBm
P/AR Accuracy
5-43
Step 3: -23 dBm
98
102
Step 4: -20 dBm
98
102
-40 dBm
98
102
5-48 Performance Tests
