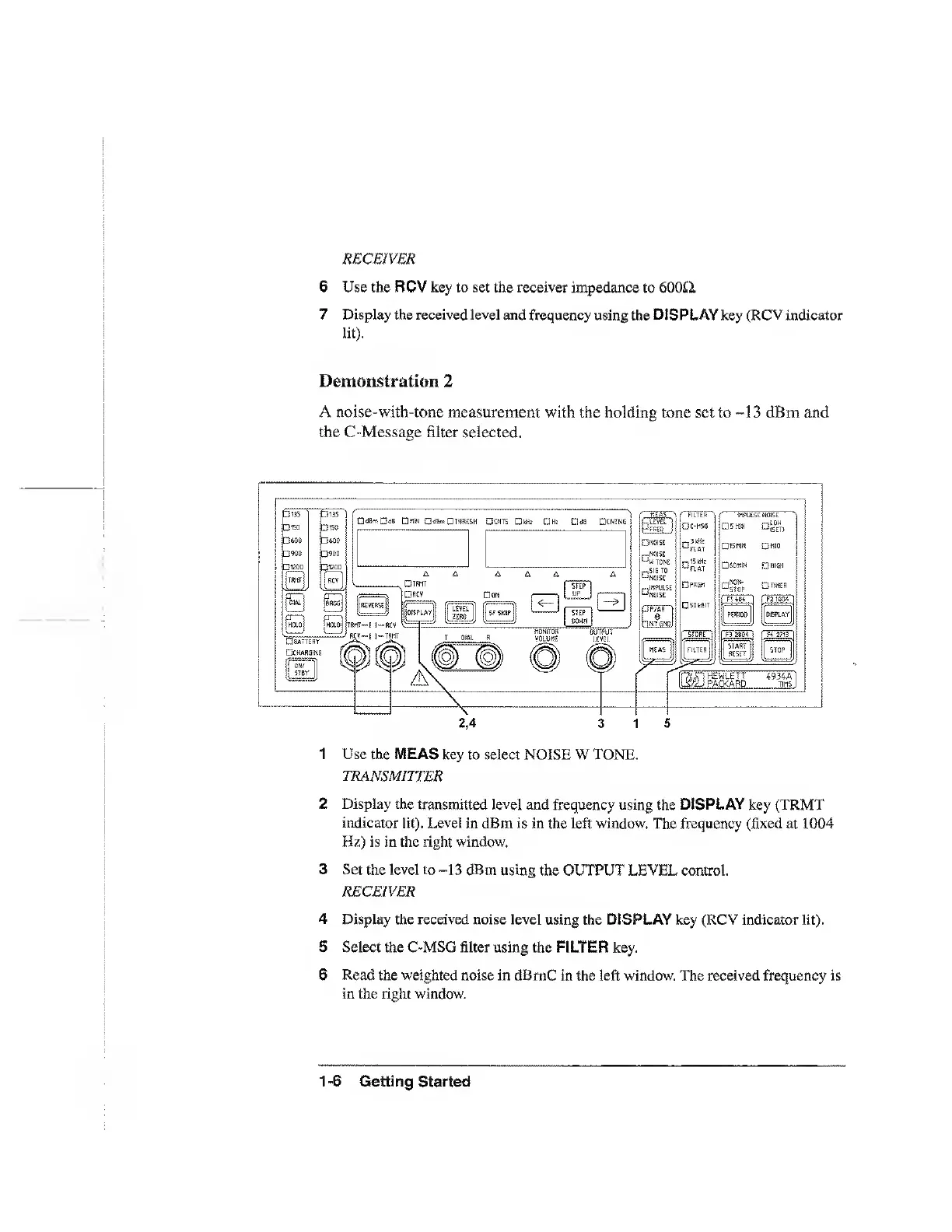

RECEIVER
6
Use
the
RCV
key
to
set
the
receiver
impedance
to
600fl
7
Display
the
received
level
and
frequency
using
the
DISPLAY
key
(RCV
indicator
lit).
Demonstration
2
A
noise-with-tone
measurement
with
the
holding
tone
set
to
-13
dBm
and
the
C-Message
filter
selected.
2,4
1
Use
the
MEAS
key
to
select
NOISE
W
TONE.
TRANSMITTER
2
Display
the
transmitted
level
and
frequency
using
the
DISPLAY
key
(TRMT
indicator
lit).
Level
in
dBm
is
in
the
left
window.
The
frequency
(fixed
at
1004
Hz)
is
in
the
right
window.
3
Set
the
level
to
-13
dBm
using
the
OUTPUT
LEVEL
control.
RECEIVER
4
Display
the
received
noise
level
using
the
DISPLAY
key
(RCV
indicator
lit).
5
Select
the
C-MSG
filter
using
the
FILTER
key.
6
Read
the
weighted
noise
in
dBmC
in
the
left
window.
The
received
frequency
is
in
the
right
window.
1-6
