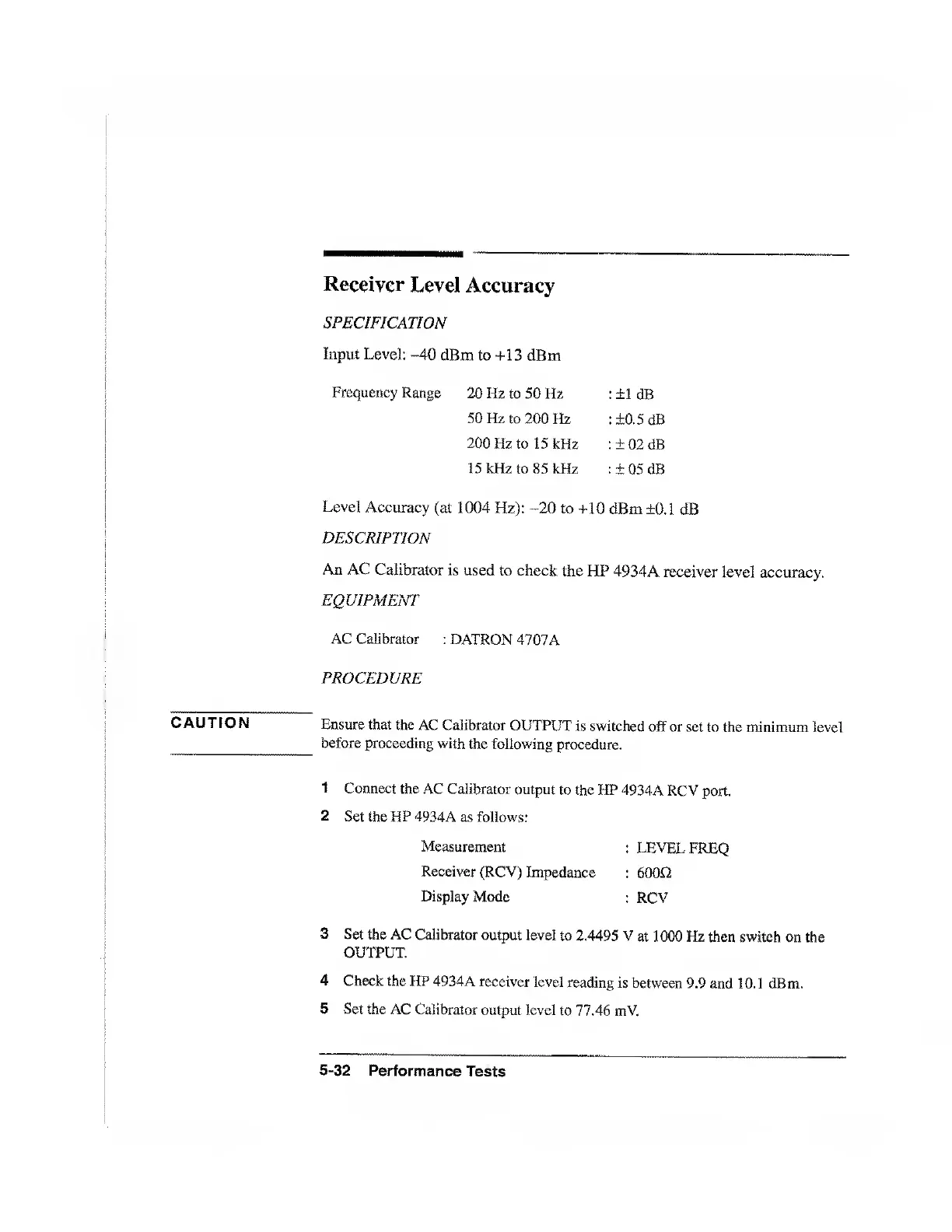

Receiver
Level
Accuracy
SPECIFICATION
Input
Level:
-40
dBm
to
+13
dBm
Frequency
Range
20
Hz
to
50
Hz
:±1
dB
50
Hz
to
200
Hz
:
±0.5
dB
200
Hz
to
15
kHz
:
±
02
dB
15
kHz
to
85
kHz
:±05dB
Level
Accuracy
(at
1004
Hz):
-20
to
+10
dBm
±0.1
dB
DESCRIPTION
An
AC
Calibrator
is
used
to
check
the
HP
4934A
receiver
level
accuracy.
EQUIPMENT
AC
Calibrator
:
DATRON
4707A
PROCEDURE
CAUTION
Ensure
that
the
AC
Calibrator
OUTPUT
is
switched
off
or
set
to
the
minimum
level
before
proceeding
with
the
following
procedure.
1
Connect
the
AC
Calibrator
output
to
the
HP
4934A
RCV
port.
2
Set
the
HP
4934A
as
follows:
Measurement
:
LEVEL
FREQ
Receiver
(RCV)
Impedance
:
600Q
Display
Mode
:
RCV
3
Set
the
AC
Calibrator
output
level
to
2.4495
V
at
1000
Hz
then
switch
on
the
OUTPUT.
4
Check
the
HP
4934A
receiver
level
reading
is
between
9.9
and
10.1
dBm.
5
Set
the
AC
Calibrator
output
level
to
77.46
mV.
5-32
Performance
Tests
95
