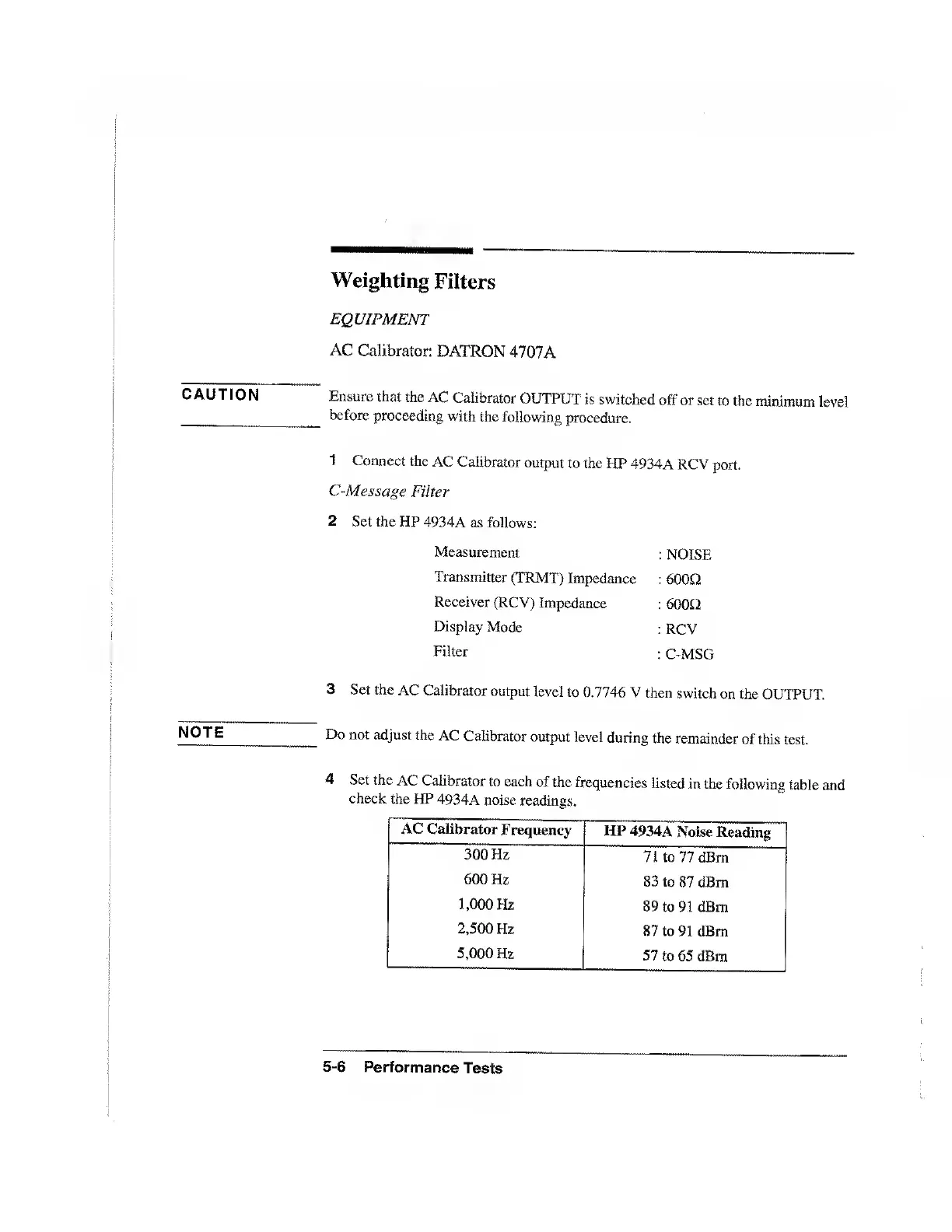

Weighting
Filters
EQUIPMENT
AC
Calibrator:
DATRON
4707A
CAUTION
NOTE
Ensure
that
the
AC
Calibrator
OUTPUT
is
switched
off
or
set
to
the
minimum
level
before
proceeding
with
the
following
procedure.
1
Connect
the
AC
Calibrator
output
to
the
HP
4934A
RCV
port.
C-Message
Filter
2
Set
the
HP
4934A
as
follows;
Measurement
Transmitter
(TRMT)
Impedance
Receiver
(RCV)
Impedance
Display
Mode
Filter
NOISE
6000
600i2
RCV
C-MSG
3
Set
the
AC
Calibrator
output
level
to
0.7746
V
then
switch
on
the
OUTPUT.
Do
not
adjust
the
AC
Calibrator
output
level
during
the
remainder
of
this
test.
4
Set
the
AC
Calibrator
to
each
of
the
frequencies
listed
in
the
following
table
and
check
the
HP
4934A
noise
readings.
AC
Calibrator
Frequency
I
HP
4934A
Noise
Reading
5-6
Performance
Tests
69
71
