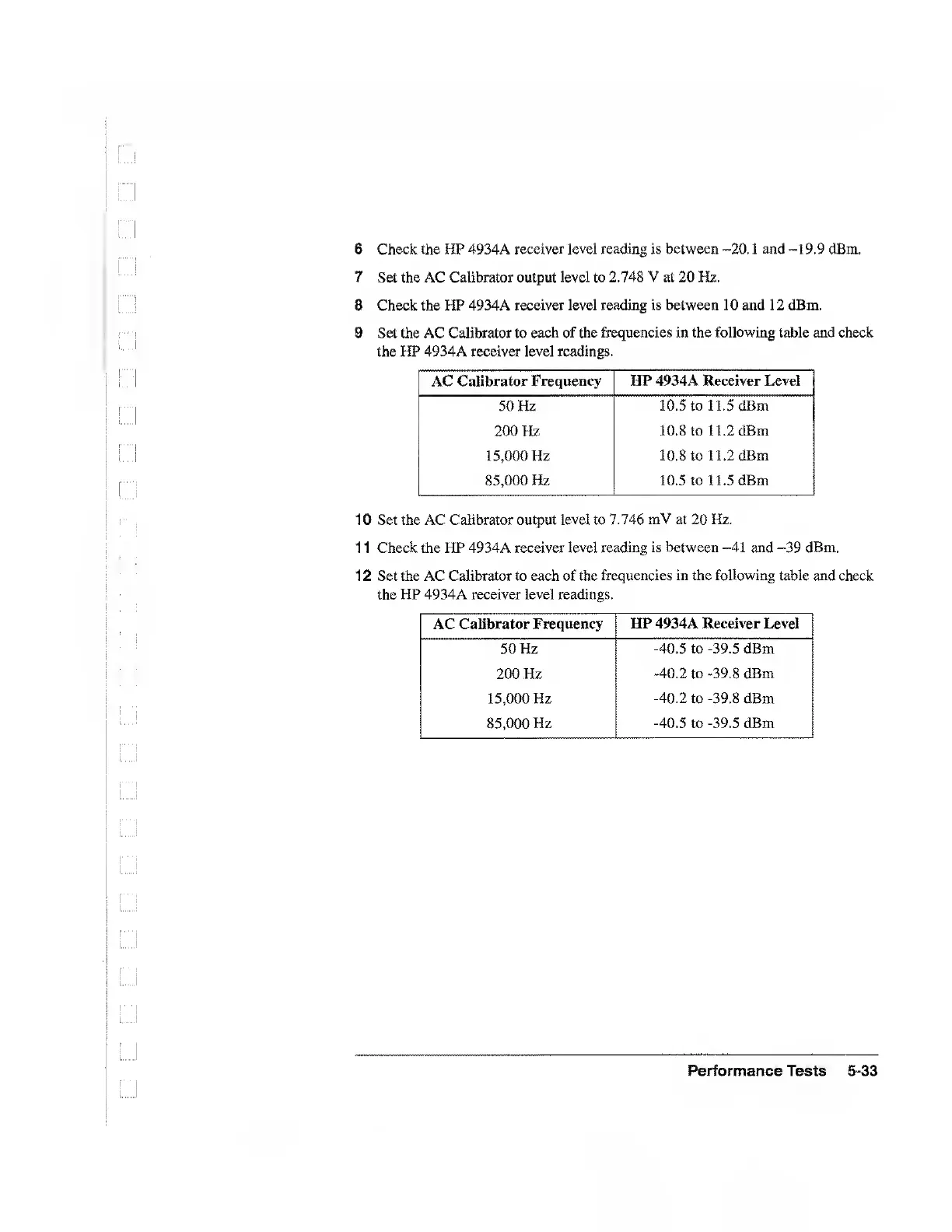

6
Check
the
HP
4934A
receiver
level
reading
is
between
--20.1
and
-19.9
dBm.
7
Set
the
AC
Calibrator
output
level
to
2.748
V
at
20
Hz.
8
Check
the
HP
4934A
receiver
level
reading
is
between
10
and
12
dBm.
9
Set
the
AC
Calibrator
to
each
of
the
frequencies
in
the
following
table
and
check
the
HP
4934A
receiver
level
readings.
AC
Calibrator
Frequency
HP
4934A
Receiver
Level
50
Hz
10.5
to
11.5
dBm
200
Hz
10.8
to
11.2
dBm
15,000
Hz
10.8
to
11.2
dBm
85,000
Hz
10.5
to
11.5
dBm
10
Set
the
AC
Calibrator
output
level
to
7.746
mV
at
20
Hz.
11
Check
the
HP
4934A
receiver
level
reading
is
between
-41
and
-39
dBm.
12
Set
the
AC
Calibrator
to
each
of
the
frequencies
in
the
following
table
and
check
the
HP
4934A
receiver
level
readings.
AC
Calibrator
Frequency
HP
4934A
Receiver
Level
50
Hz
-40.5
to
-39.5
dBm
200
Hz
-40.2
to
-39.8
dBm
15,000
Hz
-40.2
to
-39.8
dBm
85,000
Hz
-40.5
to
-39.5
dBm
Performance
Tests
5-33
