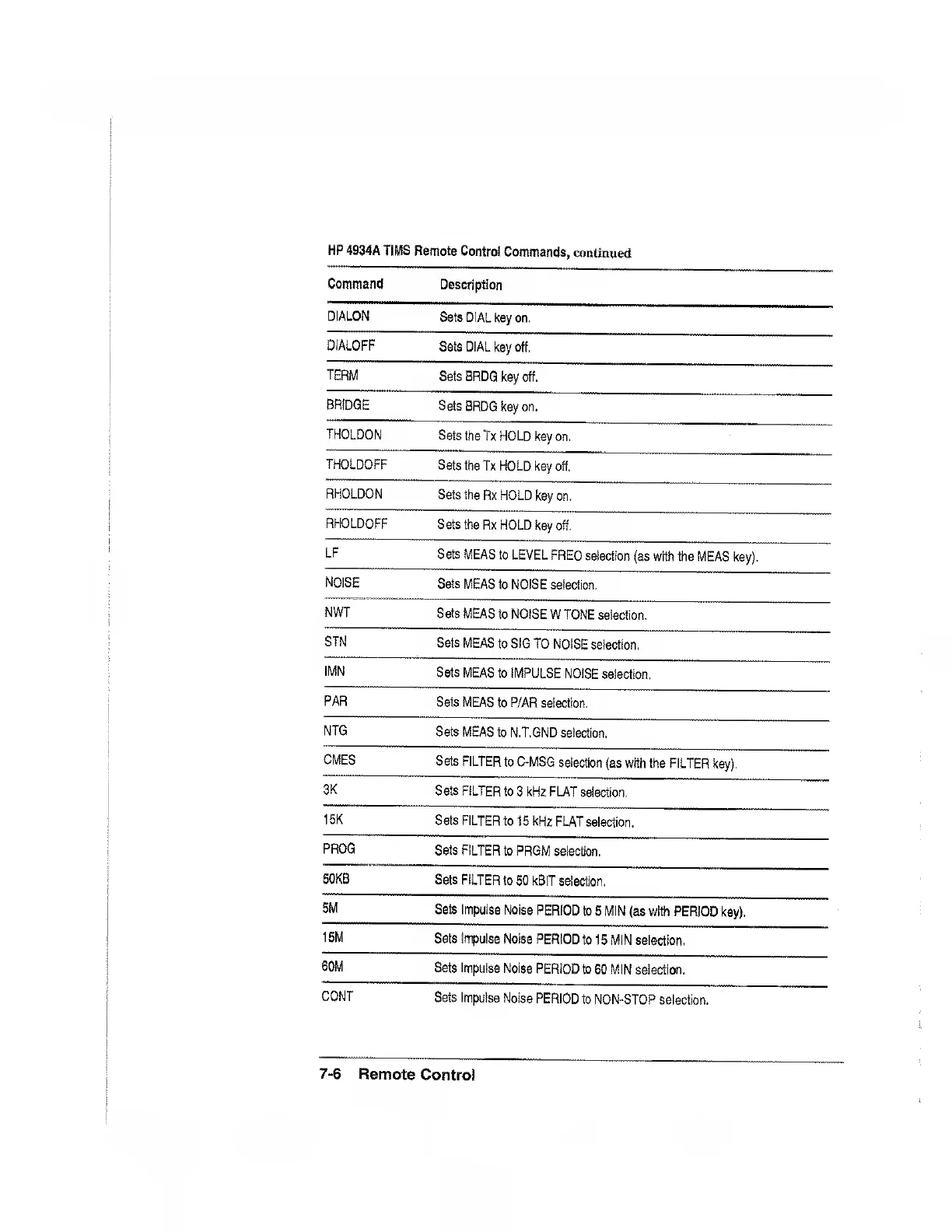

HP
4934A
TIMS
Remote
Control
Commands,
continued
Command
Description
DIALON
Sets
DIAL
key
on.
DIALOFF
Sets
DIAL
key
off.
TERM
Sets
8RDG
key
off.
BRIDGE
Sets
BRDG
key
on.
THOLDON
Sets
the
Tx
HOLD
key
on.
THOLDOFF
Sets
the
Tx
HOLD
key
off.
RHOLDON
Sets
the
Rx
HOLD
key
on.
RHOLDOFF
Sets
the
Rx
HOLD
key
off.
LF
Sets
MEAS
to
LEVEL
FREQ
selection
(as
with
the
MEAS
key).
NOISE
Sets
MEAS
to
NOISE
selection.
NWT
Sets
MEAS
to
NOISE
W
TONE
selection.
STN
Sets
MEAS
to
SIG
TO
NOISE
selection.
IMN
Sets
MEAS
to
IMPULSE
NOISE
selection.
PAR
Sets
MEAS
to
P/AR
selection.
NTG
Sets
MEAS
to
N.T.GND
selection,
CMES
Sets
FILTER
to
C-MSG
selection
(as
with
the
FILTER
key).
3K
Sets
FILTER
to
3
kHz
FLAT
selection.
15K
Sets
FILTER
to
15
kHz
FLAT
selection.
PROG
Sets
FILTER
to
PRGM
selection.
50KB
Sets
FILTER
to
50
kBIT
selection,
5M
Sets
Impulse
Noise
PERIOD
to
5
MIN
(as
with
PERIOD
key).
15M
Sets
Impulse
Noise
PERIOD
to
15
MIN
selection,
60M
Sets
impulse
Noise
PERIOD
to
60
MIN
selection.
CONT
Sets
Impulse
Noise
PERIOD
to
NON-STOP
selection.
7-6
Remote
Control
121
123
Table of Contents
Table of Contents
5
Getting Started
11
Introduction
11
Switch-On
11
Front Panel Features
12
Demonstrating the HP 4934A
15
Demonstration 2
16
Error Codes
17
Making Measurements
19
Preliminary Setup
19
Connecting the HP 4934A to the Test Circuit
19
Dial and Hold
20
Dialing Using the HP 4934A and a Bott-In
21
Receiving an Incoming Call and Holding the Line
22
Level and Frequency
23
Principles
23
Instrument Operation
25
Message Circuit Noise
28
Principles
28
How It Is Measured
29
Instrument Operation
30
Noise with Tone (Notched Noise)
31
Principles
31
How It Is Measured
31
Instrument Operation
32
Signal to Noise
33
Principles
33
How It Is Measured
33
Instrument Operation
34
Impulse Noise
35
Principles
35
Instrument Operation
36
P/AR (Peak to Average Ratio)
39
Principles
39
How It Is Measured
40
Instrument Operation
40
Noise to Ground
41
Principles
41
How It Is Measured
41
Instrument Operation
42
General Information
43
Introduction
43
About this Version
43
Specification
44
Safety Information
44
General
44
Safety Symbols
45
Statement of Compliance
47
Electromagnetic Compatibility (EMC) Information
47
Instruments Covered by Manual
49
Options Available
50
Accessories Supplied
51
Accessories Available
51
Specifications
52
Installation
59
Introduction
59
Initial Inspection
59
Preparation for Use
60
Power Requirements
60
Line Fuse
60
Power Cable
61
Battery (Option 001 or Retrofit)
61
Battery
61
Mating Connectors (Front Panel)
62
Operating Environment
62
Cleaning
62
Noise Declaration
63
Storage and Shipment
63
Environment
63
Packaging
63
Performance Tests
65
Introduction
65
Calibration Cycle
65
Recommended Test Equipment
66
Operational Verification
67
Receiver Frequency
68
Receiver Level
69
Weighting Filters
70
Impulse Noise Count
73
Hold Circuit
75
Dynamic Hold Circuit
77
Transmitter Frequency Accuracy
83
Transmitter Level Range
84
Transmitter Level Accuracy
85
Transmitter Flatness at +10 Dbm
86
Transmitter Flatness at -40 Dbm
88
Receiver Frequency Range/Accuracy
94
Receiver Level Accuracy
96
Message Circuit Noise Accuracy
98
Notch Filter Rejection
100
Signal to Noise Ratio Accuracy
101
Impulse Noise Threshold Accuracy
103
Noise to Ground Accuracy
105
Peak to Average Ratio (P/AR) Accuracy
107
Software Downloading
113
Introduction
113
Quick Download Procedure
114
About the DOWNLOAD Program
115
Remote Control
117
Introduction
117
The Serial Port 7~2
118
Serial Port Type
118
Baud Rates
118
Cable Pinout
119
Null Modem
119
Setting up for Remote Control
120
Connecting the TIMS to a Controller
120
Setting the Baud Rate
120
Activating Remote Mode
120
Deactivating Remote Mode
120
Control Commands
121
Query Commands
124
Results Display (DISP?) Format
124
Range Error Messages
125
A Service Accessory 1 (Sal)
127
20 Db Amplifier/4 Khz Filter
127
Performance Test
127
B Service Accessory 2 (SA2)
133
Power Splitter/Adder
133
Performance Test
