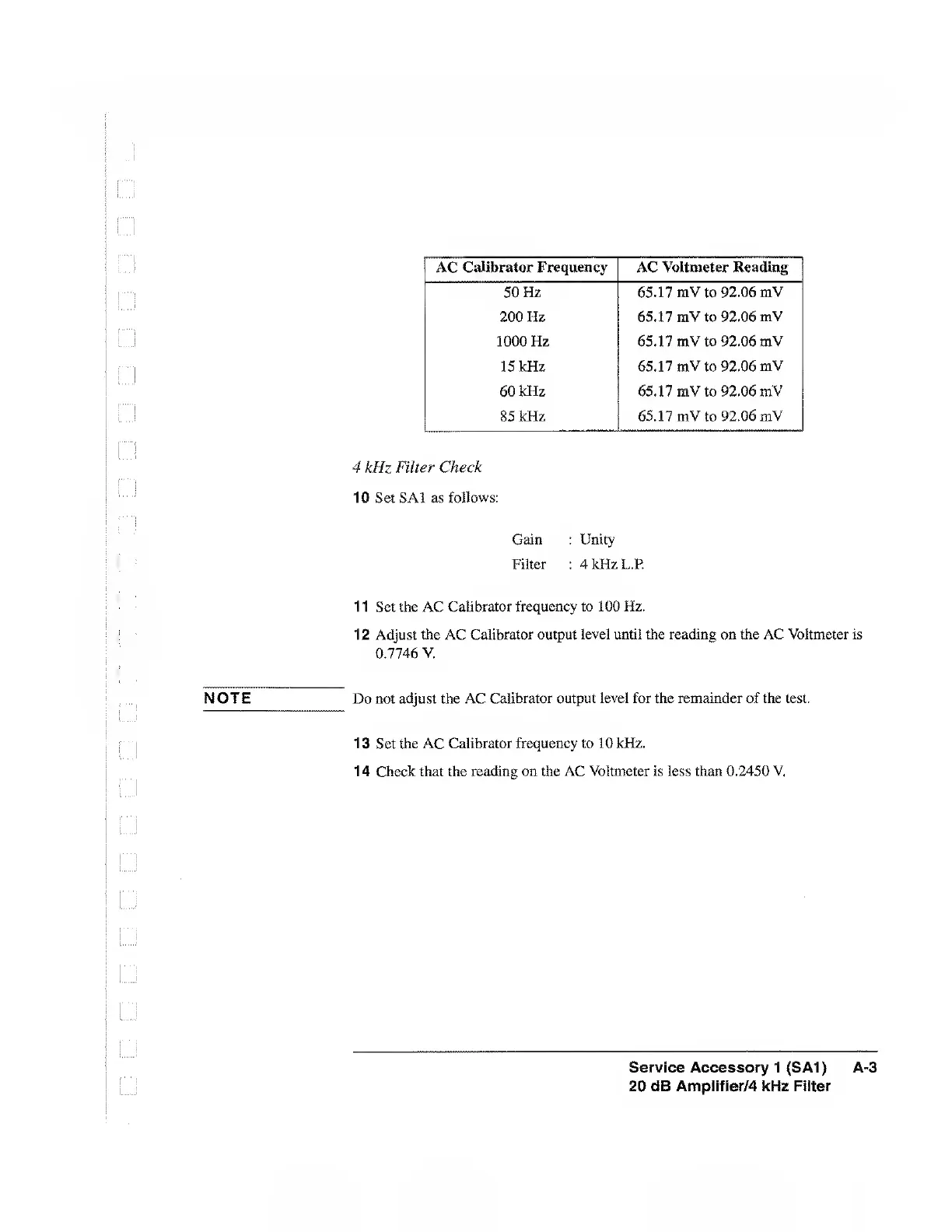

HP 4934A User Manual

AC Calibrator Frequency AC Voltmeter Reading
50 Hz 65.17 mV to 92.06 mV
200 Hz 65.17 mV to 92.06 mV
1000 Hz 65.17 mV to 92.06 mV
15 kHz 65.17 mV to 92.06 mV
60 kHz
65.17 mV to 92.06 mV
85 kHz
65.17 mV to 92.06 mV
4 kHz Filter Check
10 Set SAl as follows:
Gain : Unity
Filter : 4kHzL.P.
11 Set the AC Calibrator frequency to 100 Hz.
12 Adjust the AC Calibrator output level until the reading on the AC Voltmeter is
0.7746 V.
NOTE Do not adjust the AC Calibrator output level for the remainder of the test.
13 Set the AC Calibrator frequency to 10 kHz.
14 Check that the reading on the AC Voltmeter is less than 0.2450 V.
Service Accessory 1 (SAl) A-3
