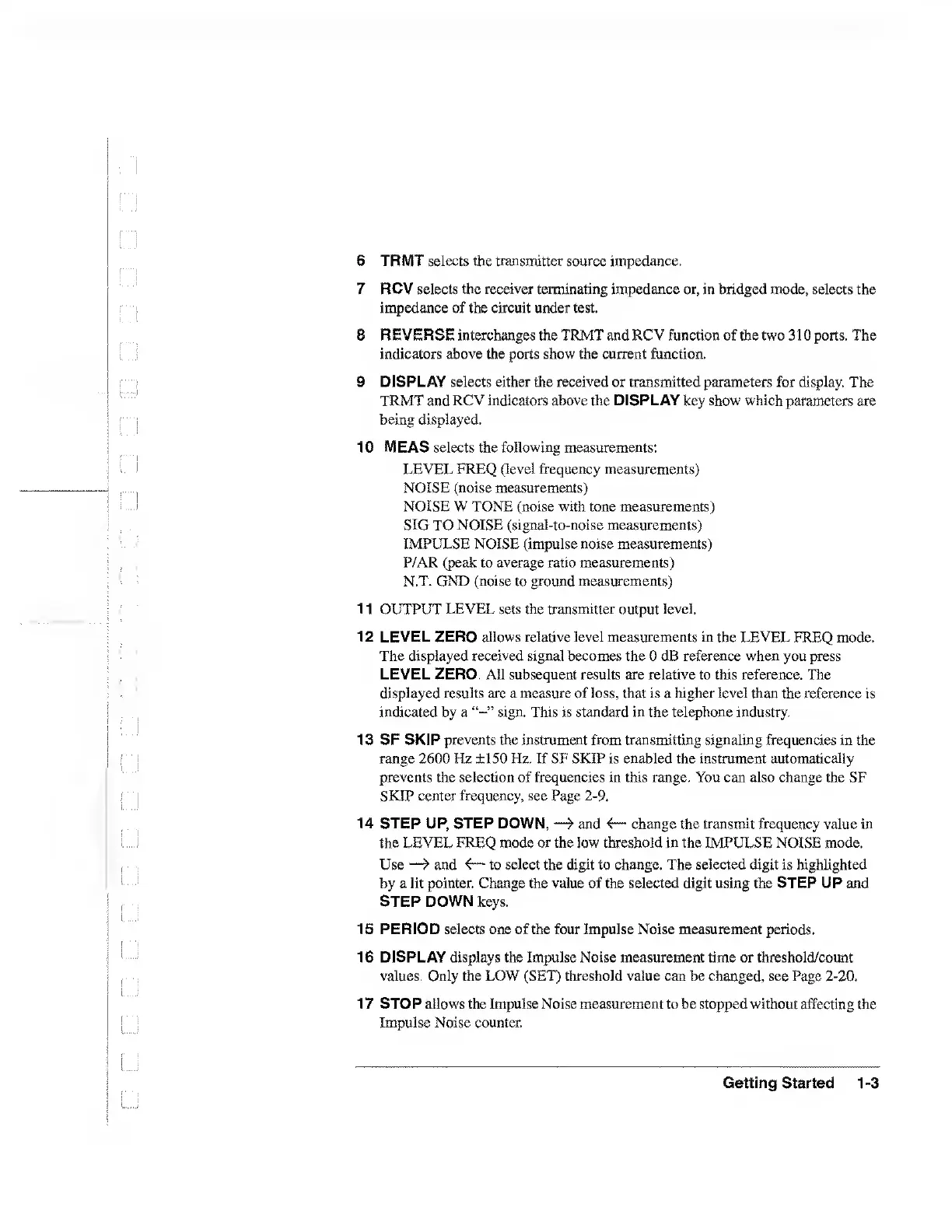

Page #13 background imageLoading...
Page #13 background image
6
TRMT
selects
the
transmitter
source
impedance.
7
RCV
selects
the
receiver
terminating
impedance
or,
in
bridged
mode,
selects
the
impedance
of
the
circuit
under
test.
8
REVERSE
interchanges
the
TRMT
and
RCV
function
of
the
two
310
ports.
The
indicators
above
the
ports
show
the
current
function.
9
DISPLAY
selects
either
the
received
or
transmitted
parameters
for
display.
The
TRMT
and
RCV
indicators
above
the
DISPLAY
key
show
which
parameters
are
being
displayed.
10
ME
AS
selects
the
following
measurements;
LEVEL
FREQ
(level
frequency
measurements)
NOISE
(noise
measurements)
NOISE
W
TONE
(noise
with
tone
measurements)
SIG
TO
NOISE
(signal-to-noise
measurements)
IMPULSE
NOISE
(impulse
noise
measurements)
P/AR
(peak
to
average
ratio
measurements)
N.T.
GND
(noise
to
ground
measurements)
11
OUTPUT
LEVEL
sets
the
transmitter
output
level.
12
LEVEL
ZERO
allows
relative
level
measurements
in
the
LEVEL
FREQ
mode.
The
displayed
received
signal
becomes
the
0
dB
reference
when
you
press
LEVEL
ZERO.
All
subsequent
results
are
relative
to
this
reference.
The
displayed
results
are
a
measure
of
loss,
that
is
a
higher
level
than
the
reference
is
indicated
by
a
sign.
This
is
standard
in
the
telephone
industry.
13
SF
SKIP
prevents
the
instrument
from
transmitting
signaling
frequencies
in
the
range
2600
Hz
±150
Hz.
If
SF
SKIP
is
enabled
the
instrument
automatically
prevents
the
selection
of
frequencies
in
this
range.
You
can
also
change
the
SF
SJQP
center
frequency,
see
Page
2-9.
14
STEP
UP,
STEP
DOWN,
>
and
change
the
transmit
frequency
value
in
the
LEVEL
FREQ
mode
or
the
low
threshold
in
the
IMPULSE
NOISE
mode.
Use
—>
and
<—
to
select
the
digit
to
change.
The
selected
digit
is
highlighted
by
a
lit
pointer.
Change
the
value
of
the
selected
digit
using
the
STEP
UP
and
STEP
DOWN
keys.
15
PERIOD
selects
one
of
the
four
Impulse
Noise
measurement
periods.
16
DISPLAY
displays
the
Impulse
Noise
measurement
time
or
threshold/count
values.
Only
the
LOW
(SET)
threshold
value
can
be
changed,
see
Page
2-20.
17
STOP
allows
the
Impulse
Noise
measurement
to
be
stopped
without
affecting
the
Impulse
Noise
counter.
Getting
Started
1-3
