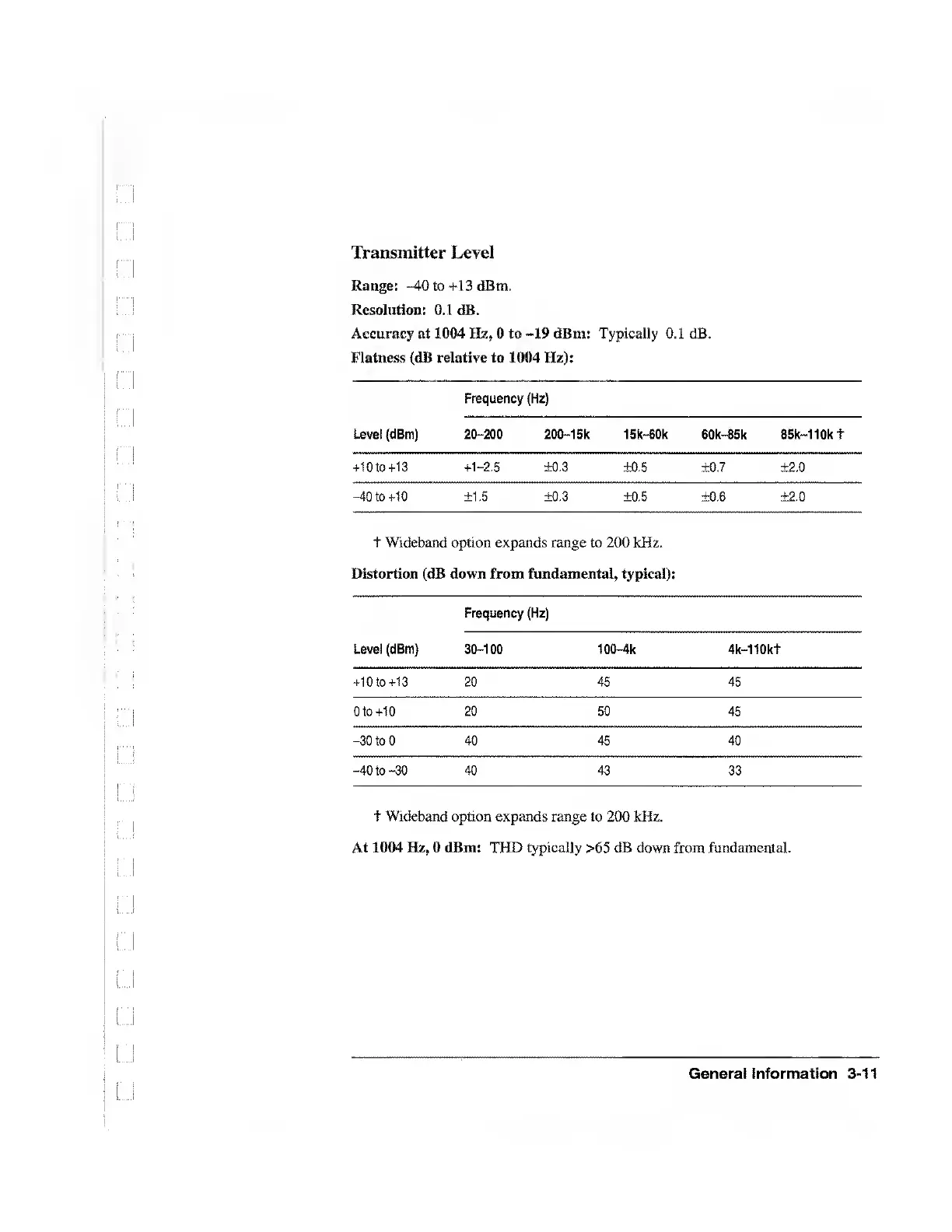

Transmitter Level
Range: -40 to+13 dBm.
Resolution: 0.1 dB.
Accuracy at 1004 Hz, 0 to -19 dBm: Typically 0.1 dB.
Flatness (dB relative to 1004 Hz):
Frequency (Hz)
Level (dBm)
20-200 200-15k 15k-60k
60k-85k
B5k-110kt
+10to+13 +1-2.5 ifl.3 ±0.5 ±0,7 ±2.0
-40 to +10 ±1.5 ±0.3 ±0.5
±0.6 ±2.0
t Wideband option expands range to 200 kHz.
Distortion (dB down from fundamental, typical):
Frequency (Hz)
Level (dBm) 30-100 100-4k 4k-110kt
+10to +13 20 45 45
Oto+10
20 50
45
-30 too 40 45 40
-40 to-30 40 43 33
t Wideband option expands range to 200 kHz.
At 1004 Hz, 0 dBm: THD typically >65 dB down from fundamental.
