HP 4934A User Manual

Hewlett-Packard
Tested by:
Model 4934A
Date:
Transmission Impairment Measuring Set
Serial No.:

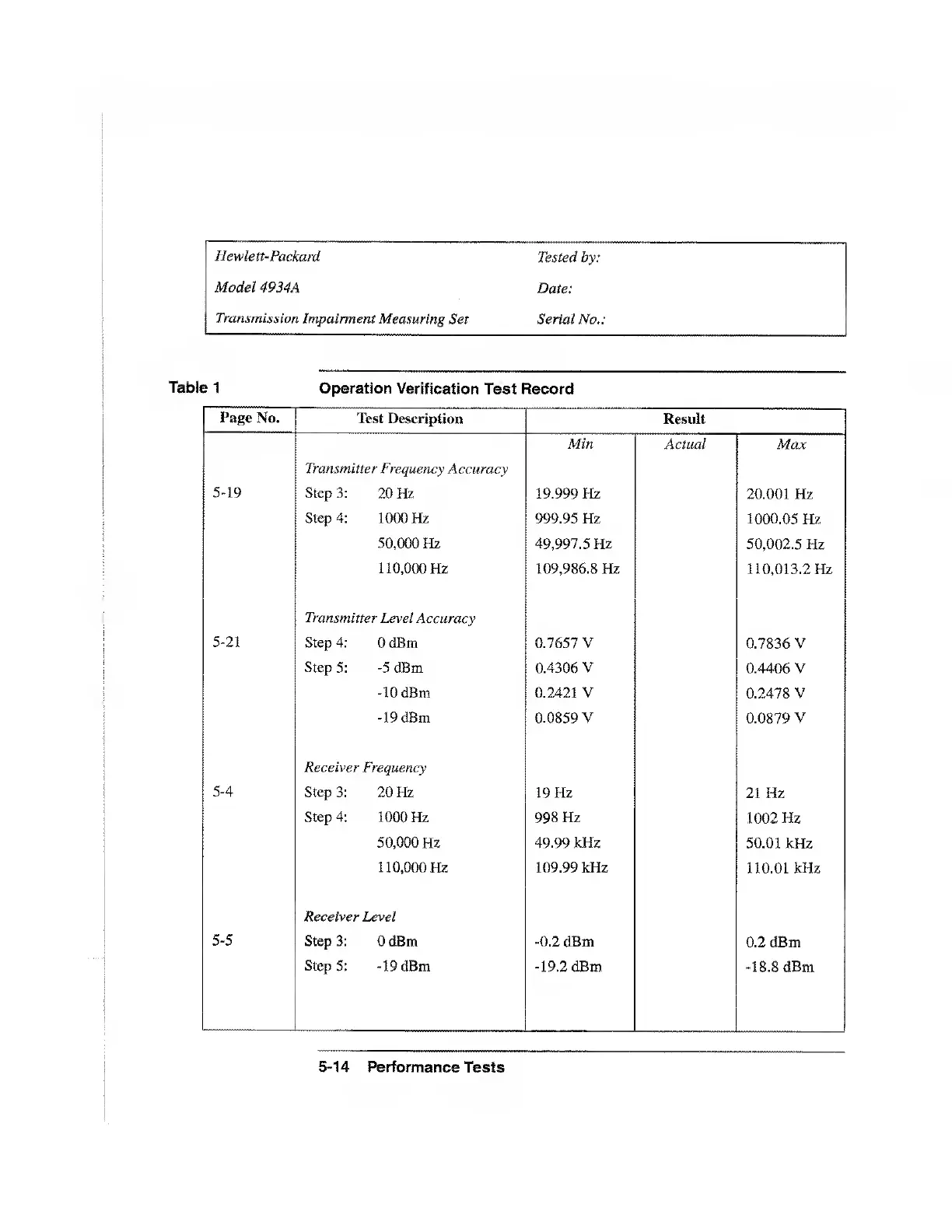

Table 1 Operation Verification Test Record
Page No.
Test Description Result
Min
Actual Max
Transmitter Frequency Accuracy
549 Step 3:
20 Hz
19.999 Hz 20.001 Hz
Step 4: 1000 Hz
999.95 Hz
1000.05 Hz
50,000 Hz
49,997.5 Hz
50,002.5 Hz
110,000 Hz 109,986.8 Hz
110,013.2 Hz
Transmitter Level Accuracy
5-21
Step 4:
OdBm
0.7657 V 0.7836 V
Step 5: -5 dBm
0.4306 V
0.4406 V
-10 dBm 0.2421 V
0.2478 V
-19 dBm
0.0859 V
0.0879 V
Receiver Frequency
5-4
Step 3: 20 Hz
19 Hz 21 Hz
Step 4:
1000 Hz 998 Hz
1002 Hz
50,000 Hz
49.99 kHz 50,01 kHz
110,000 Hz 109.99 kHz
110.01 kHz
Receiver Level
5-5
Step 3:
OdBm -0.2 dBm
0.2 dBm
Step 5: -19 dBm
-19.2 dBm
-18.8 dBm
5-14 Performance Tests
