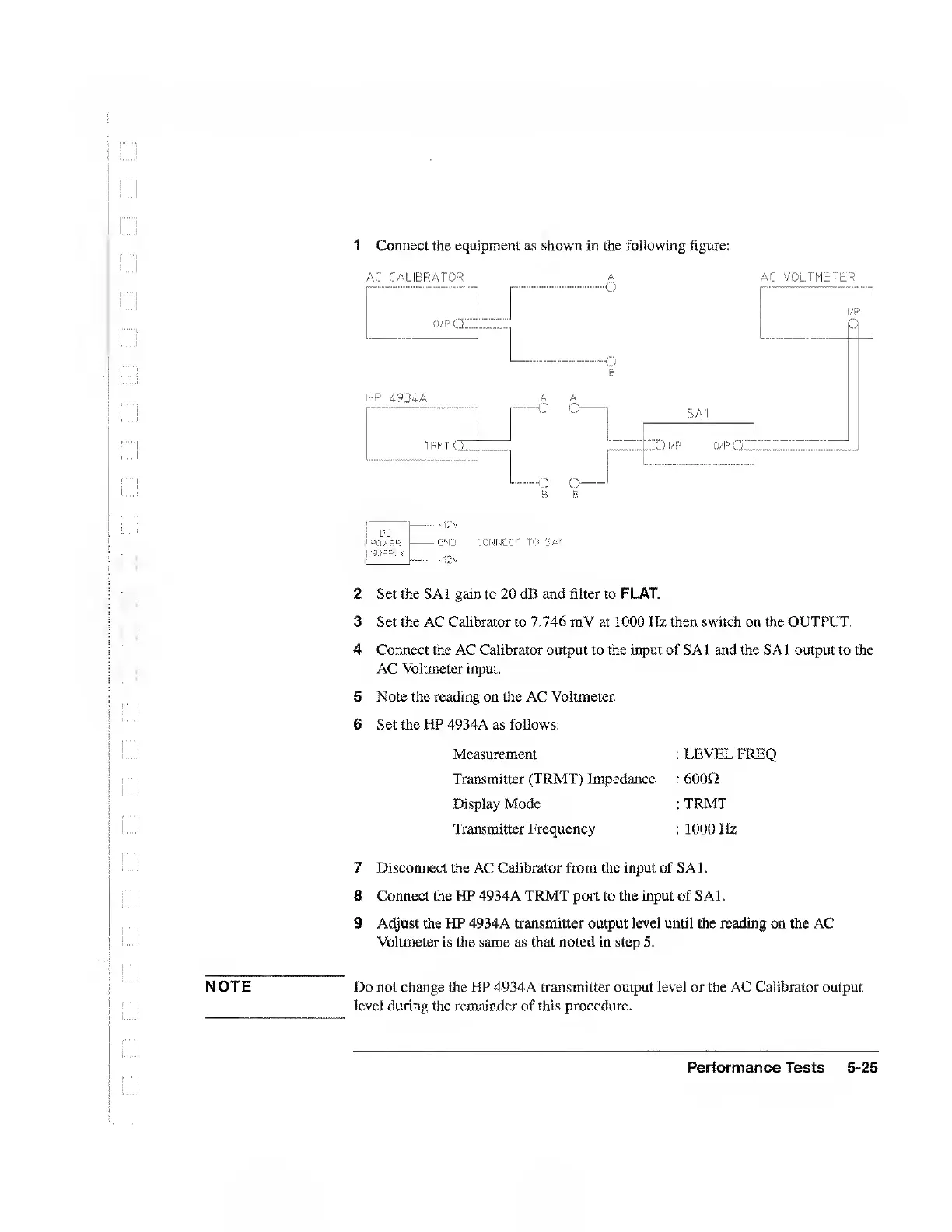

1
Connect
the
equipment
as
shown
in
the
following
figure:
NOTE
E
rJCNNilC'
TO
5A-
2
Set
the
SAl
gain
to
20
dB
and
filter
to
FLAT.
3
Set
the
AC
Calibrator
to
7.746
mV
at
1000
Hz
then
switch
on
the
OUTPUT.
4
Connect
the
AC
Calibrator
output
to
the
input
of
SAl
and
the
SAl
output
to
the
AC
Voltmeter
input.
5
Note
the
reading
on
the
AC
Voltmeter.
6
Set
the
HP
4934A
as
follows:
Measurement
:
LEVEL
FREQ
Transmitter
(TRMT)
Impedance
:
600Q
Display
Mode
:
TRMT
Transmitter
Frequency
:
1000
Hz
7
Disconnect
the
AC
Calibrator
from
the
input
of
SAl.
8
Connect
the
HP
4934A
TRMT
port
to
the
input
of
SAl.
9
Adjust
the
HP
4934A
transmitter
output
level
until
the
reading
on
the
AC
Voltmeter
is
the
same
as
that
noted
in
step
5.
Do
not
change
the
HP
4934A
transmitter
output
level
or
the
AC
Calibrator
output
level
during
the
remainder
of
this
procedure.
Performance
Tests
5-25
