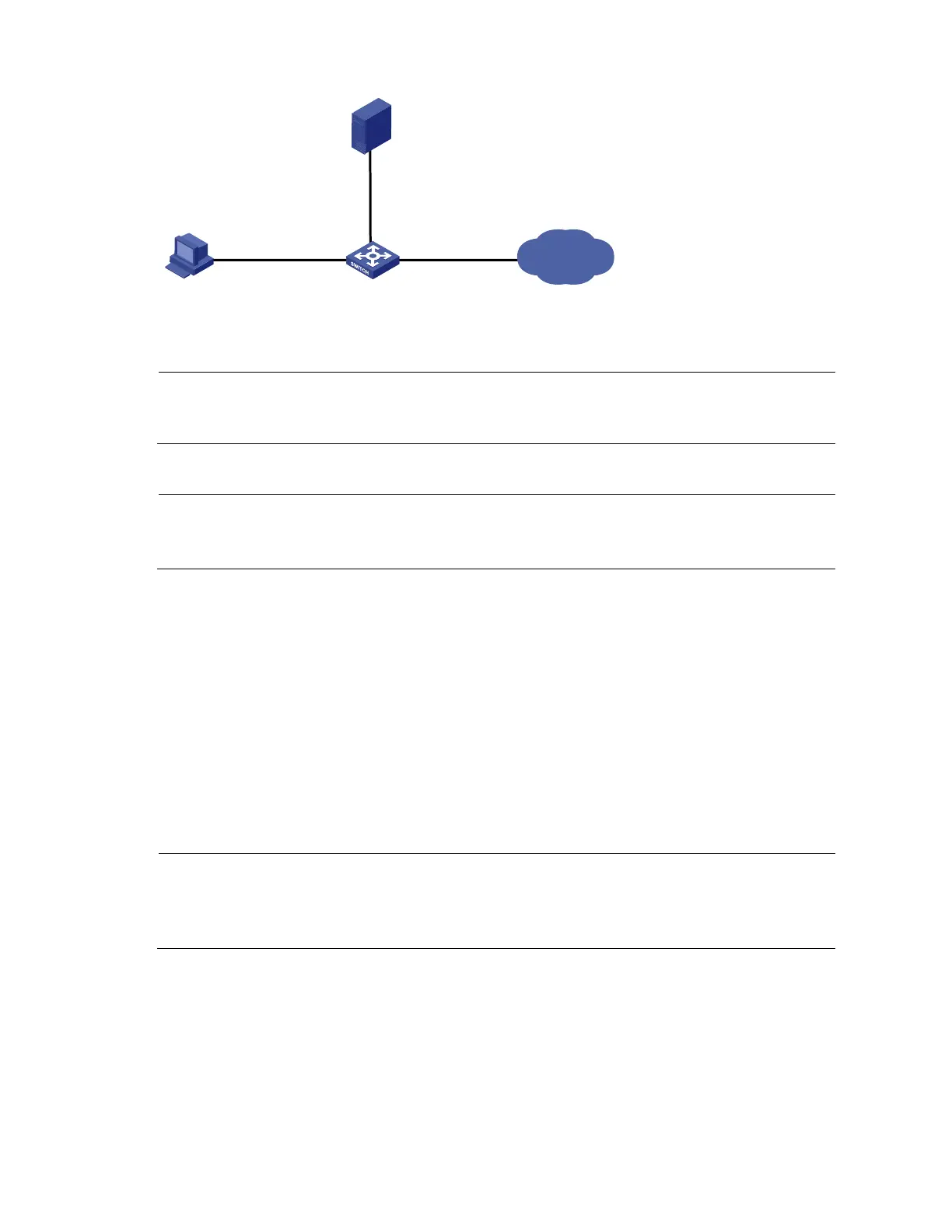

Figure 15 Configure AAA for 802.1X users by a RADIUS server

Internet

Switch

802.1X user

RADIUS server

Vlan-int2

10.1.1.1/24

Vlan-int3

10.1.1.2/24

Vlan-int4

GE1/0/1

Configuration procedure

NOTE:

 Configure the interfaces and VLANs as shown in Figure 15. Make sure that the host can get a new IP address

manually or automatically and can access resources in the authorized VLAN after passing authentication.

1. Configure the RADIUS server (iMC PLAT 5.0)

NOTE:

This example assumes that the RADIUS server runs iMC PLAT 5.0 (E0101), iMC UAM 5.0 (E0101), and

iMC CAMS 5.0 (E0101).

# Add an access device.

Device from the navigation tree to enter the Access Device List page. Then, click Add to enter the Add

Access Device page and perform the following configurations:

 Set the shared key for authentication and accounting to expert

 Specify the ports for authentication and accounting as 1812 and 1813 respectively

 Select LAN Access Service as the service type

 Select HP(A-Series) as the access device type

 Select the access device from the device list or manually add the device whose IP address is 10.1.1.2

 Adopt the default settings for other parameters and click OK to finish the operation.

NOTE:

The IP address of the access device specified above must be the same as the source IP address of the

RADIUS packets sent from the device, which is the IP address of the outbound interface by default, or

otherwise the IP address specified with the nas-ip or radius nas-ip command on the access device.
