[Switch] quit
2. Configure the HWTACACS server
NOTE:
The HWTACACS server in this example runs ACSv4.0.
Add a user named tester on the HWTACACS server and configure advanced attributes for the user as
follows and as shown in Figure 21:
Select Max Privilege for any AAA Client and set the privilege level to level 3. After these
configurations, the user needs to use the password enabpass when switching to level 1, level 2, or
level 3.
Select Use separate password and specify the password as enabpass.

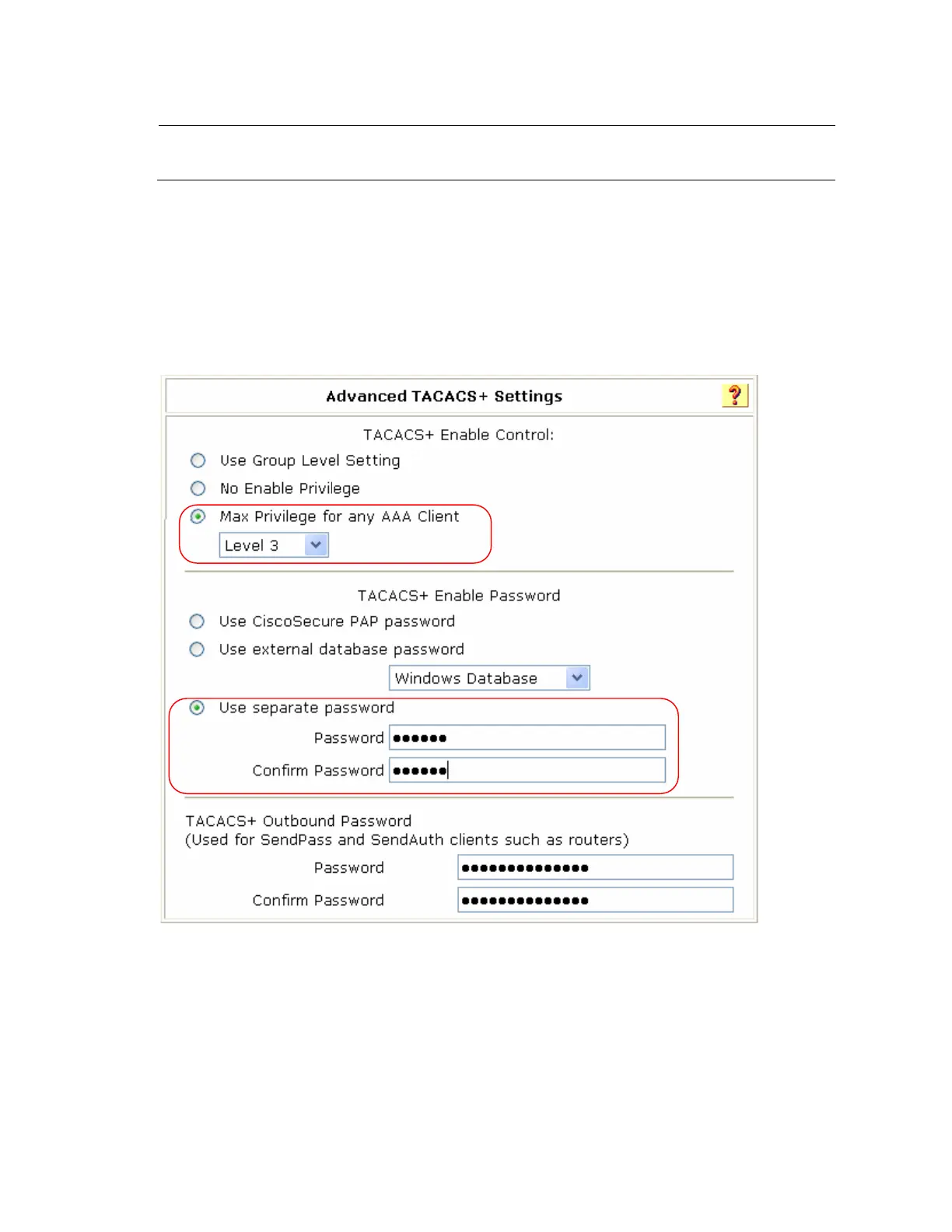

Figure 21 Configure advanced attributes for the Telnet user
3. Verify the configuration
After you complete the configuration, the Telnet user should be able to telnet to the switch and use
username test@bbb and password aabbcc to enter the user interface of the switch, and access all level 0
commands.
<Switch> telnet 192.168.1.70
Trying 192.168.1.70 ...
Press CTRL+K to abort
