HP 5130 EI Switch Series User Manual

35
HP 5130-24G-PoE+-4SFP+ (370W) EI/HP
5130-24G-PoE+-4SFP+ (370W) EI BR

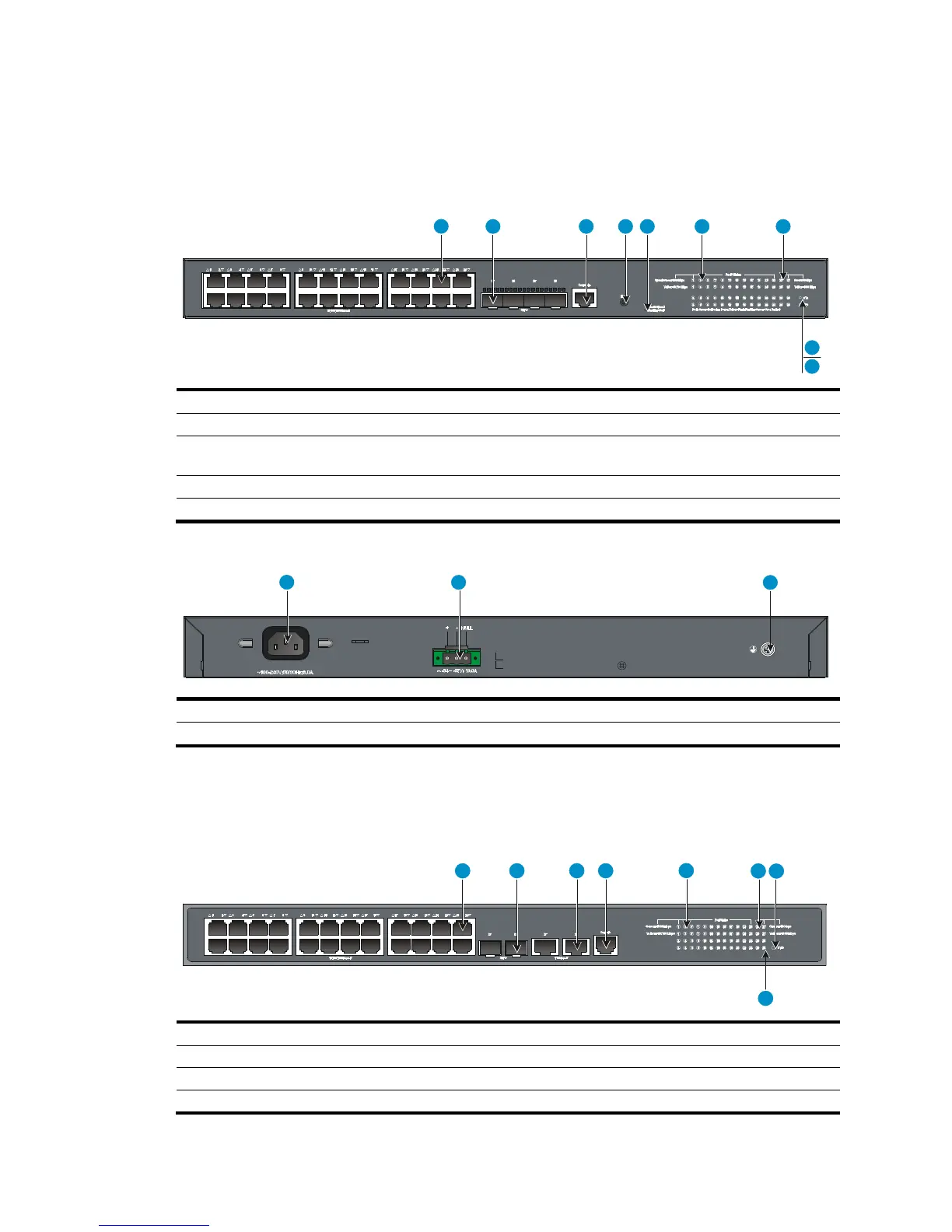

Figure 36 Front panel
(1) 10/100/1000Base-T autosensing Ethernet port
(2) SFP+ port
(3) Console port
(4) Port LED mode switching button
(5) Port mode LED (6) 10/100/1000Base-T autosensing Ethernet port
LED
(7) SFP+ port LED
(8) System status LED (SYS)
(9) RPS status LED (RPS)
Figure 37 Rear panel
(1) AC-input power receptacle
(2) RPS receptacle
(3) Grounding screw
HP 5130-24G-2SFP+-2XGT EI
Figure 38 Front panel
(1) 10/100/1000Base-T autosensing Ethernet port
(2) SFP+ port
(3) 1/10GBase-T autosensing Ethernet port
(4) Console port
(5) 10/100/1000Base-T autosensing Ethernet port LED
(6) SFP+ port LED
(7) System status LED (SYS) (8) 1/10GBase-T autosensing Ethernet port LED
1
2
3
4
5
6
8
7
9
1
2
3
8
1
2 3 4
5
6
7
