HP 5130 EI Switch Series User Manual

39

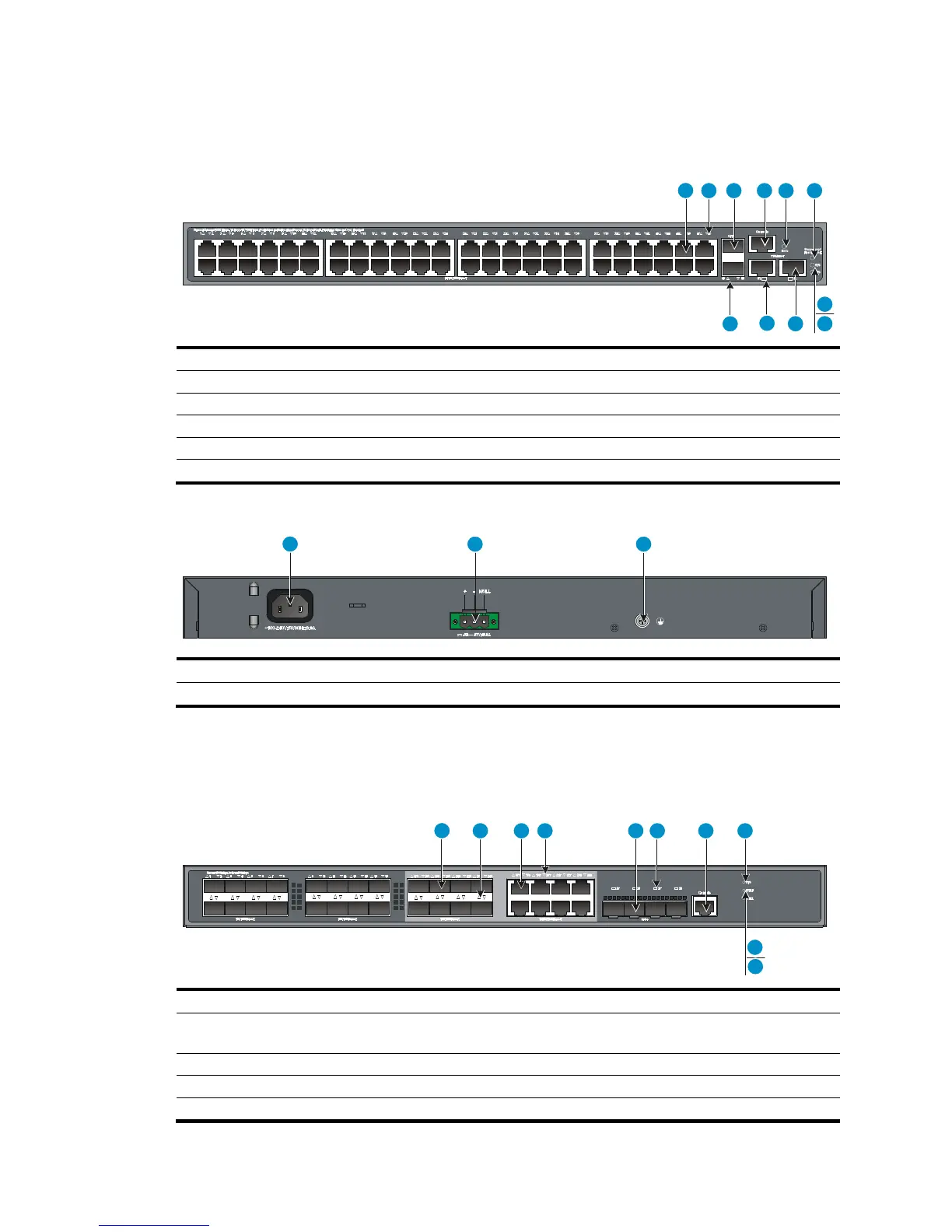

HP 5130-48G-PoE+-2SFP+-2XGT (370W) EI
Figure 48 Front panel
(1) 10/100/1000Base-T autosensing Ethernet port
(2) 10/100/1000Base-T autosensing Ethernet port LED
(3) SFP+ port
(4) Console port
(5) Port LED mode switching button
(6) Port mode LED
(7) System status LED (SYS)
(8) RPS status LED (RPS)
(9) 1/10GBase-T autosensing Ethernet port
(10) 1/10GBase-T autosensing Ethernet port LED
(11) SFP+ port LED
Figure 49 Rear panel
(1) AC-input power receptacle
(2) RPS receptacle
(3) Grounding screw
HP 5130-24G-SFP-4SFP+ EI
Figure 50 Front panel
(1) 100/1000Base-X SFP port
(2) 100/1000Base-X SFP port LED
(3) 10/100/1000Base-T autosensing Ethernet port (4) 10/100/1000Base-T autosensing Ethernet port
LED
(5) SFP+ port
(6) SFP+ port LED
(7) Console port
(8) System status LED (SYS)
(9) Power supply 1 status LED (PWR1) (10) Power supply 2 status LED (PWR2)
7
89
10
321 4 5 6
11
1
2 3
1
2 3
4
5
6 7
8
9
10
