HP
5384A and
HP
5385A
Operation
and Programming
EXAMPLE
5.
FREQUENCY
A
MEASUREMENT
The
following
example demonstrates
how
to
display a Frequency A measurement
on
the
display
(X
register)
of
•
the HP-41C/CV.
Included
in
the
example are
the
keystrokes
required
to
program
the
HP-41C/CV.
The
following
program initializes the
counter
(locates the
counter
in
the
loop
and
sets
the
counter
to
Remade
mode).
After
initialization,
the
program
sends instructions
to
measure
the
frequency
at
Input
A, set
up
a gate
time
of
one
second, enable the
100kHz
low
Pass
Filter, and send
the
measurement back
to
the
display
of
the HP-
41C/CV.
For
the
example, use
the
set-up shown
in
Figure 3-12, Example 5 Set-Up, and make
the
following
adjustments.
1.
Set
a signal generator
to
a sine wave
frequency
of
500
kHz±
10
kHz.
2.
Set
an
output
level
of
250
mV ±
100
mV.
3.
Connect
the
signal
generator
to
Input
A
of
the
HP
5384A/HP
538SA.
4.
Cycle the
HP
5384A/HP 5385A
counter
from
STBY
to
ON.
5.
Press
the
INPUT B key.
HP-IL
INTERFACE
BUS
HP
8656A
SIGNAL
GENERATOR
HP
5384A/HP
5385A
INPUT
A
HP-41C
CALCULATOR
FREQUENCY
COUNTER
BNC
CABLE

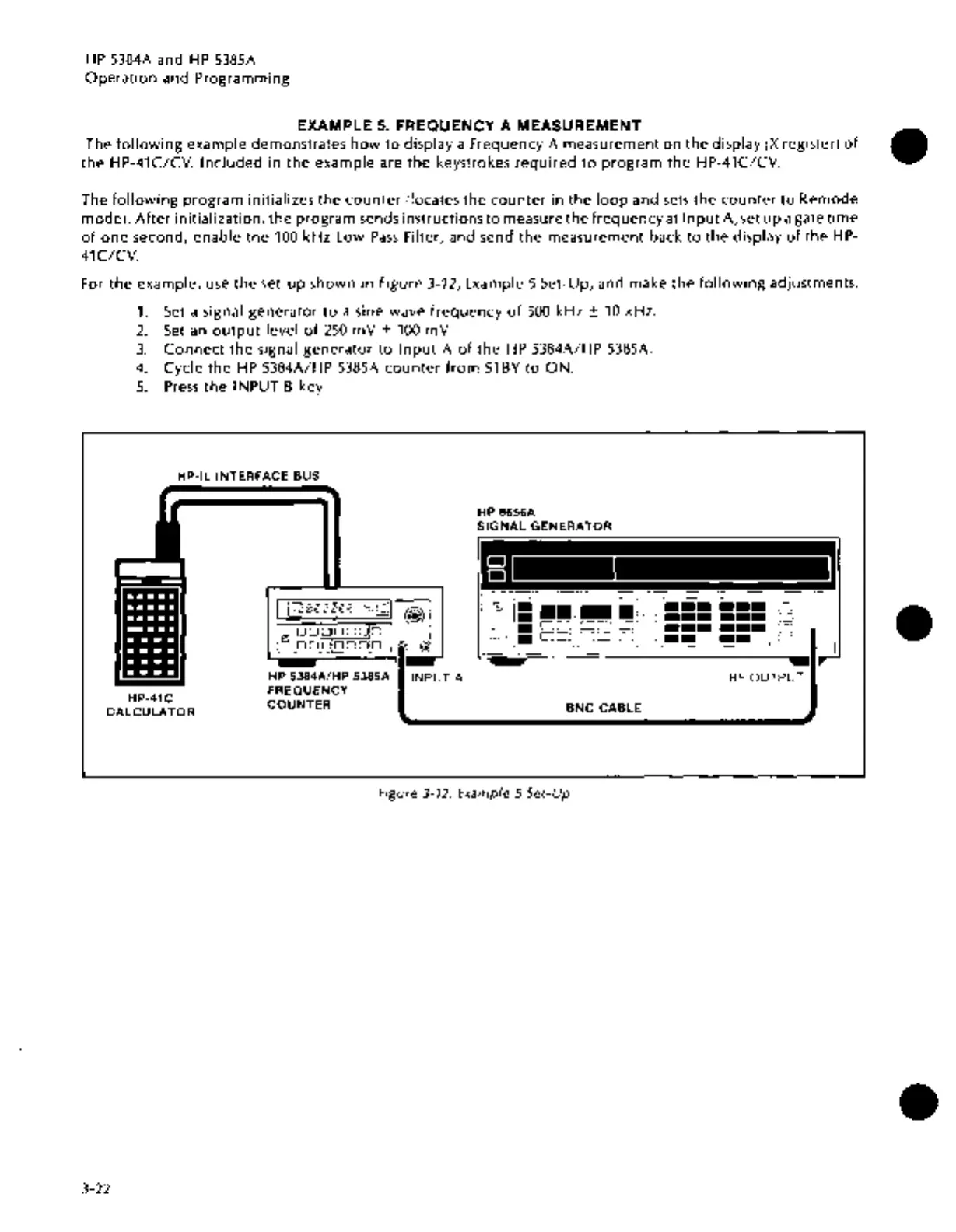

Figure 3-12. Example 5
Set-Up
3-22
RF
OUTPUT
•
•
