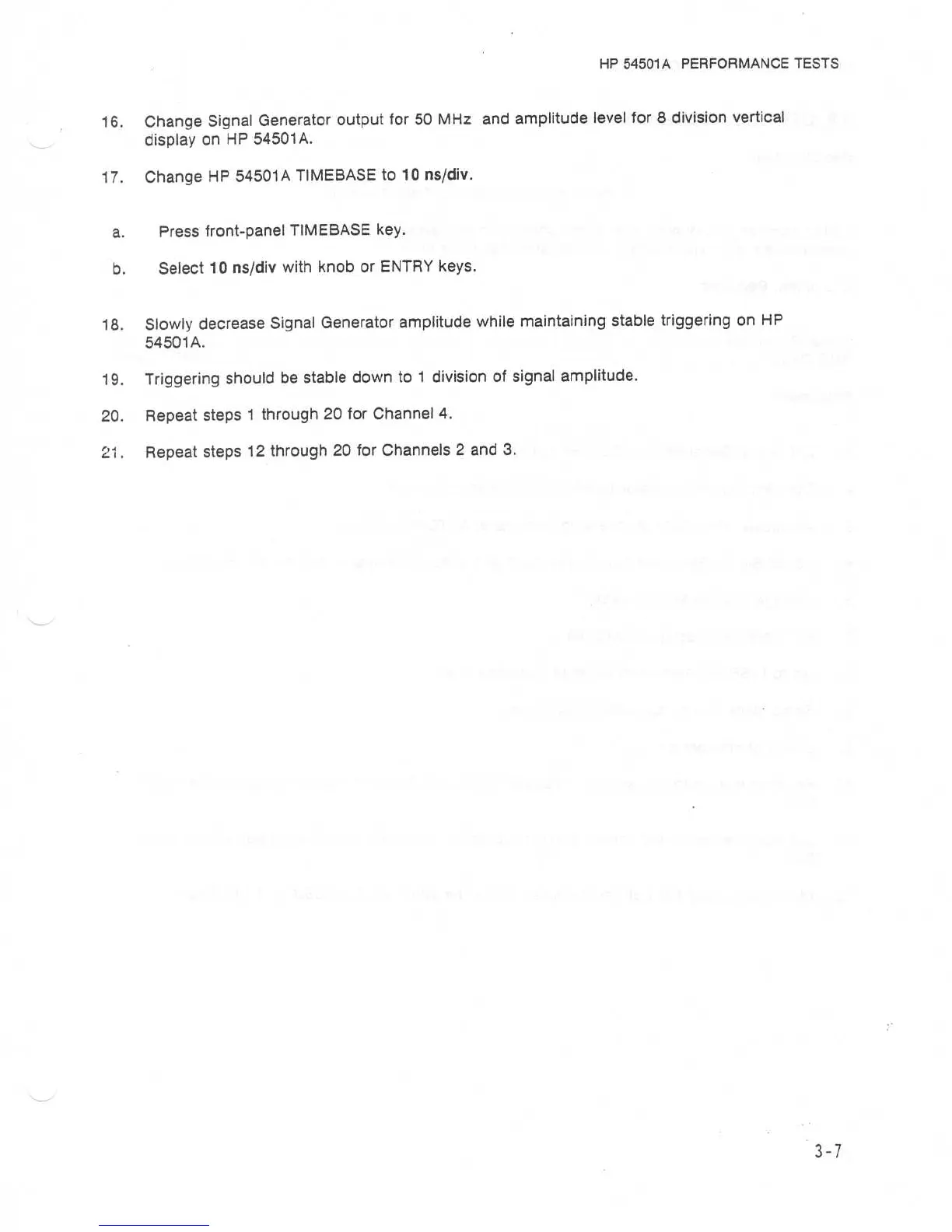

16 .

Change Signal Generator
output for 50 MHz and
amplitude level for 8 division vertical
display on HP 54501A
.
17
.

Change HP 54501A
TIMEBASE to 10 ns/div
.
a .

Press front-panel
TIMEBASE key .
b .

Select 10 ns/div
with knob or ENTRY keys .
19 .

Triggering should
be stable down to 1 division
of signal amplitude .
20 .

Repeat
steps 1 through 20 for
Channel 4 .
21 .

Repeat steps 12
through 20 for Channels 2 and 3 .
HP 54501A PERFORMANCE TESTS
18 .

Slowly
decrease Signal Generator
amplitude while maintaining stable
triggering
on
HP
54501
A .
