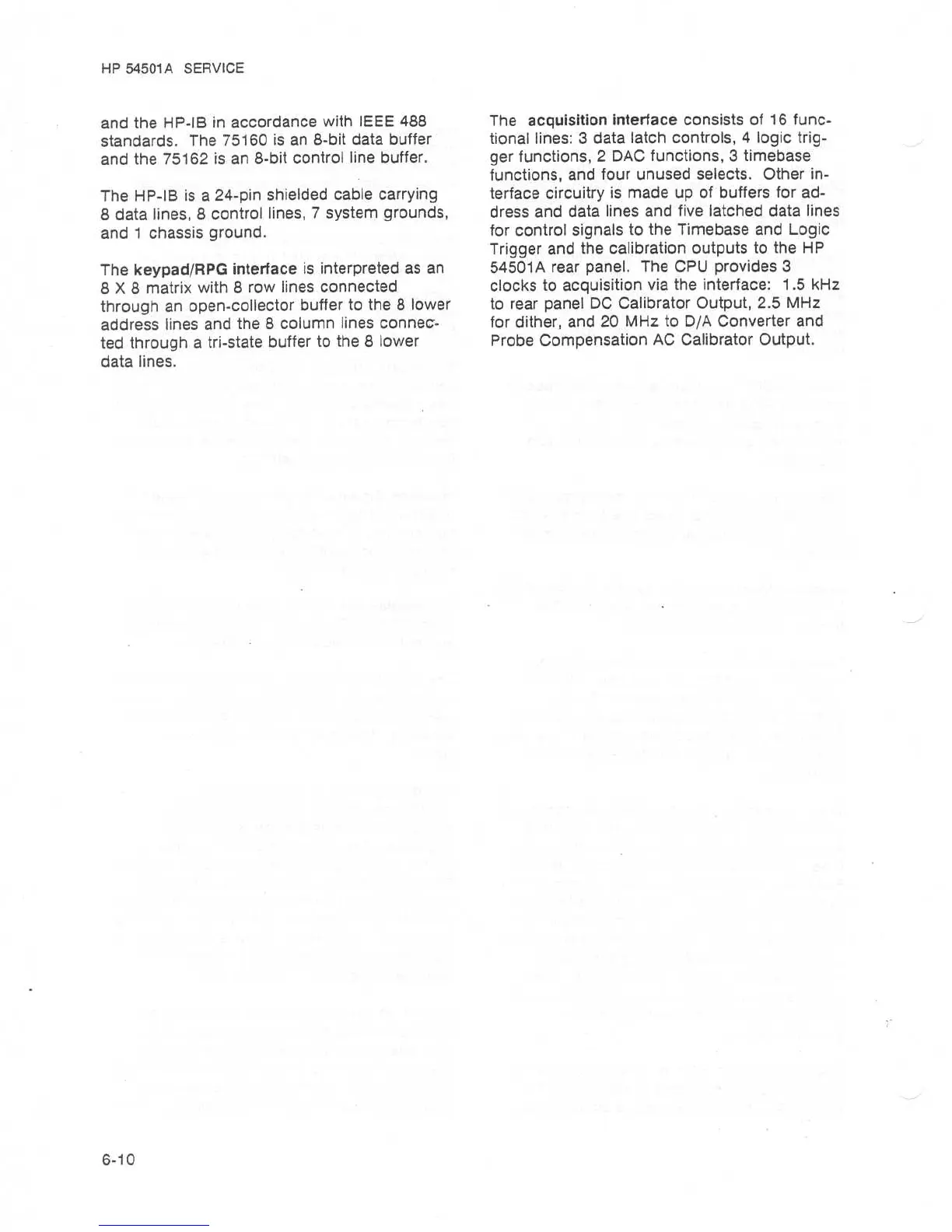

HP
54501A
SERVICE
and
the
HP-113
in
accordance
with
IEEE
488
standards
.
The
75160
is
an
8-bit
data
buffer
and
the
75162
is
an
8-bit
control
line
buffer
.
The
HP-IB
is
a
24-pin
shielded
cable
carrying
8 data
lines,
8
control
lines,
7
system
grounds,
and
1
chassis
ground
.
The
keypad/RPG
interface
is
interpreted as
an
8 X 8
matrix
with
8
row
lines
connected
through
an
open-collector
buffer
to
the
8 lower
address
lines
and
the
8
column
lines
connec-
ted
through
a
tri-state
buffer
to
the
8
lower
data
lines
.
The
acquisition
interface
consists
of
16
func-
tional
lines
:
3 data
latch
controls,
4
logic
trig-
ger
functions,
2
DAC
functions,
3
timebase
functions,
and
four
unused
selects
.
Other
in-
terface
circuitry
is
made
up
of
buffers
for
ad-
dress
and
data
lines
and
five
latched
data
lines
for
control signals
to
the
Timebase
and
Logic
Trigger
and
the
calibration
outputs
to
the
HP
54501A
rear
panel
.
The
CPU
provides
3
clocks
to acquisition
via
the
interface
:
1
.5
kHz
to rear
panel
DC
Calibrator
Output, 2
.5
MHz
for
dither,
and
20
MHz
to
D/A
Converter
and
Probe
Compensation
AC
Calibrator
Output
.
