HP 54501A SERVICE
W6

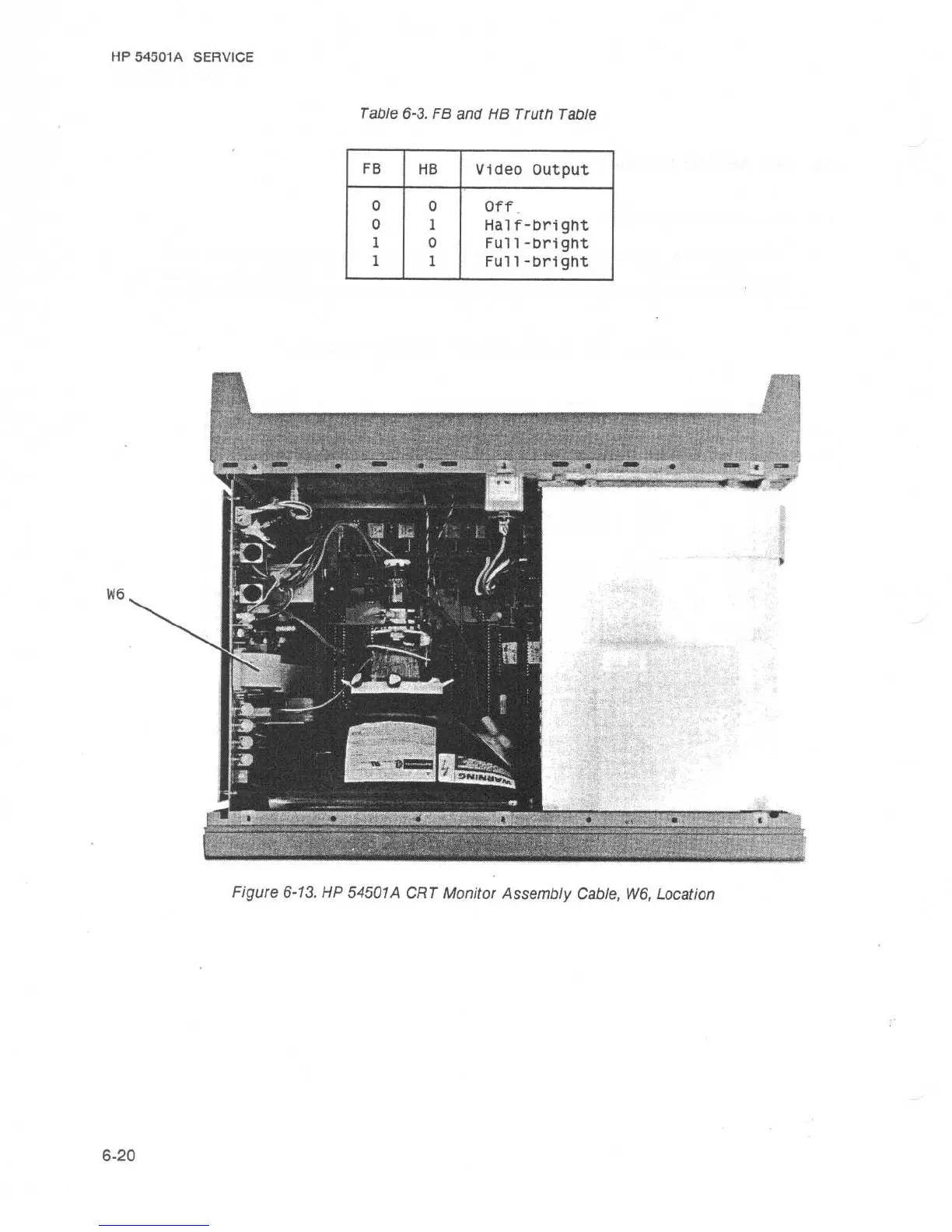

Table 6-3 . FB and HB Truth Table
Figure 6-13 . HP
54501A CRT Monitor Assembly Cable,
W6, Location
FB HB Video
Output
0 0 Off,
0 1 Half-bright
1 0
Full-bright
1 1
Full-bright
