HP
Series
6000
Hardware
Installation
Manual

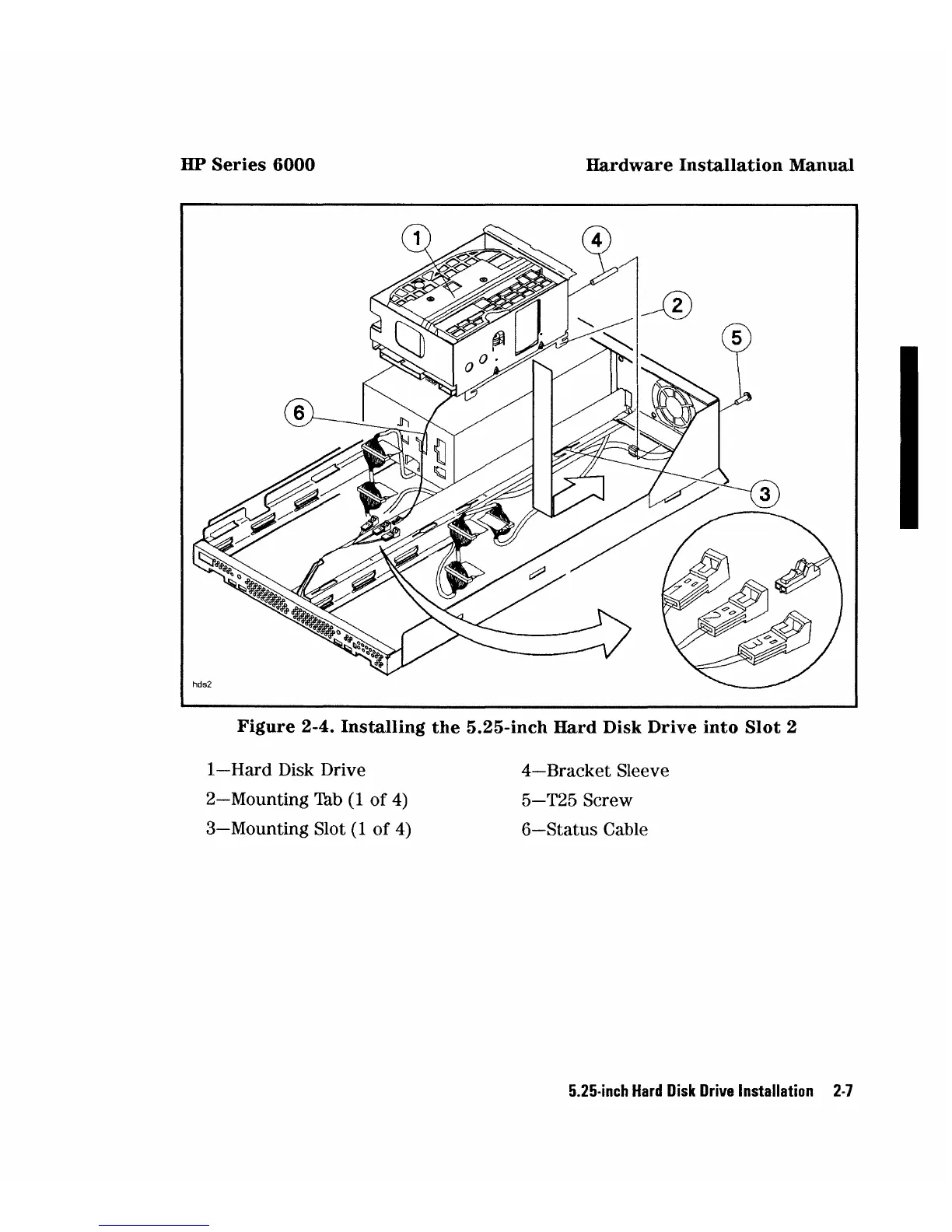

Figure
2-4.
Installing
the
5.25-inch
Hard Disk
Drive
into
Slot
2
1-
Hard Disk Drive
2-Mounting
Tab
(1
of
4)
3-
Mounting Slot
(1
of
4)
4-
Bracket Sleeve
5-T25
Screw
6-Status
Cable
5.25·inch
Hard
Disk
Drive
Installation
2·7
