Hardware Installation Manual
HP
Series
6000

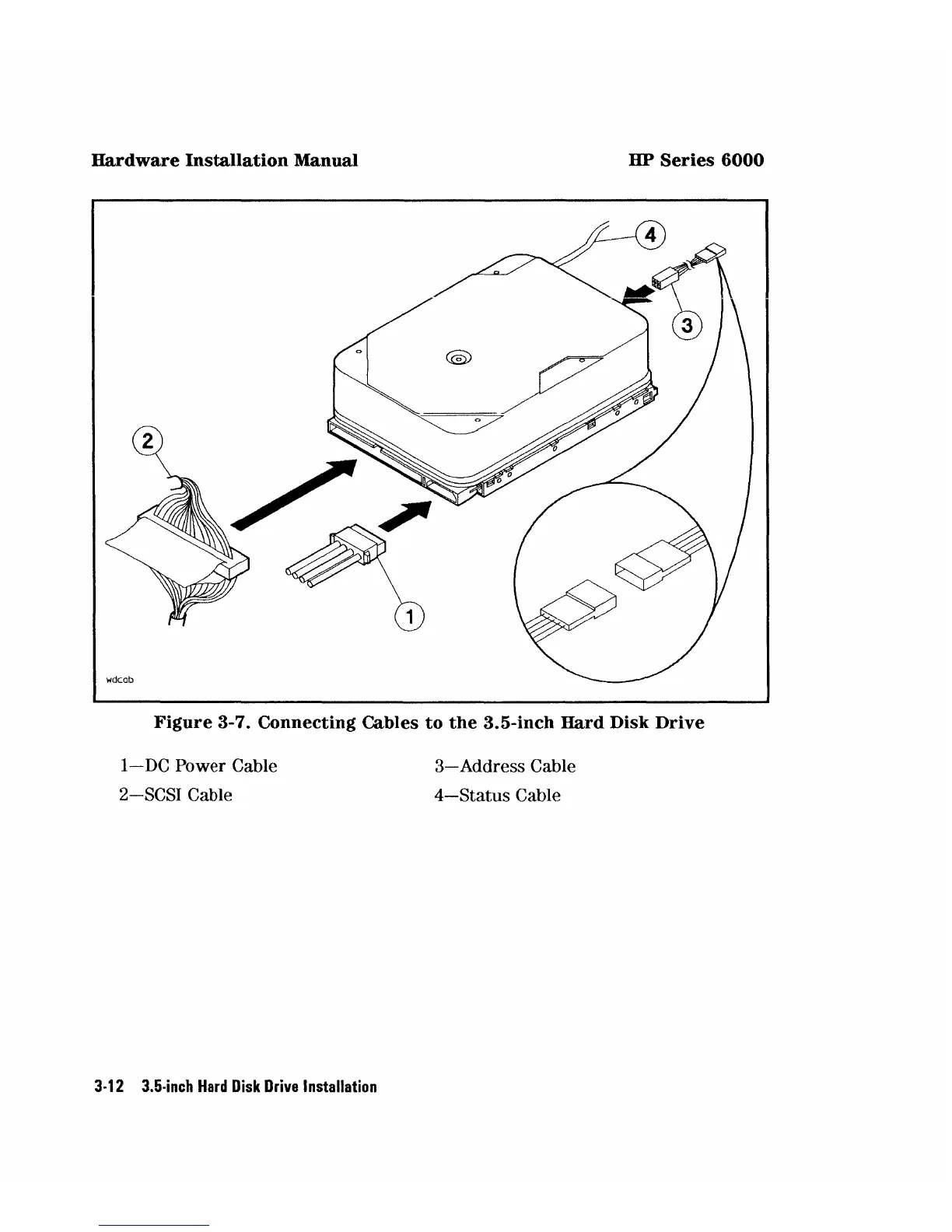

Figure 8-7. Connecting Cables
to
the
8.5-inch Hard Disk Drive
1-
DC
Power Cable
2-SCSI
Cable
3·12
3.5·inch
Hard
Disk
Drive
Installation
3-
Address Cable
4-Status
Cable
