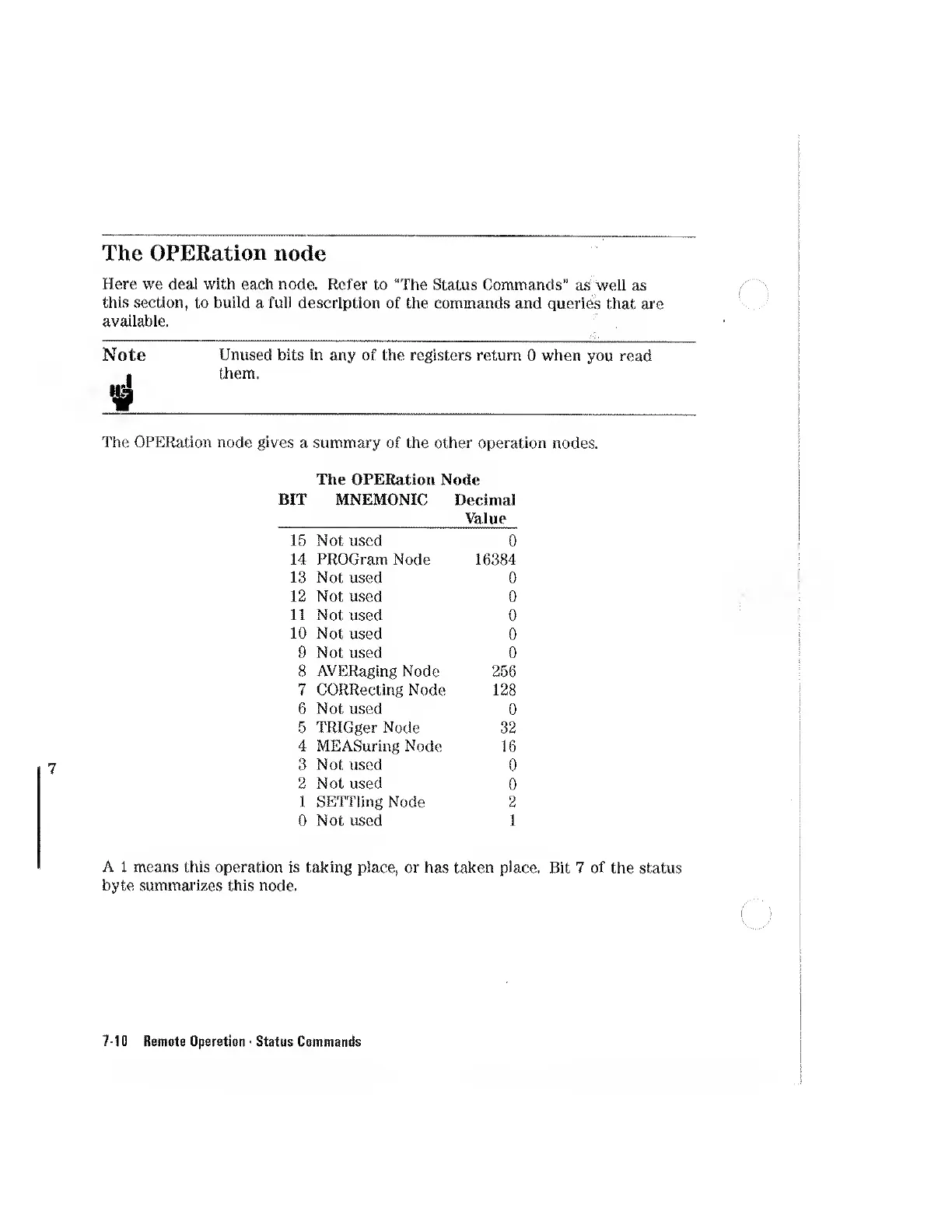

The OPERation node
Here we deal with each node. Refer to “The Status Commands" as well as
this section, to build a full description of the commands and queries that are
available.
Note Unused bits in any of the registers return 0 when you read
The OPERation node gives a summary of the other operation nodes.
The OPERation Node
BIT MNEMONIC Decimal
Value
15 Not used
0
14 PROGram Node 16384
13 Not used
0
12
Not used 0
11
Not used
0
10 Not used
0
9 Not used 0
8 AVERaging Node
256
7 CORRecting Node
128
6 Not used
0
5
TRIGger Node
32
4 MEASuring Node
16
3 Not used
0
2 Not used
0
1
SETTling Node 2
0
Not used
1
A 1 means this operation is taking place, or has taken place. Bit 7 of the status
byte summarizes this node.
