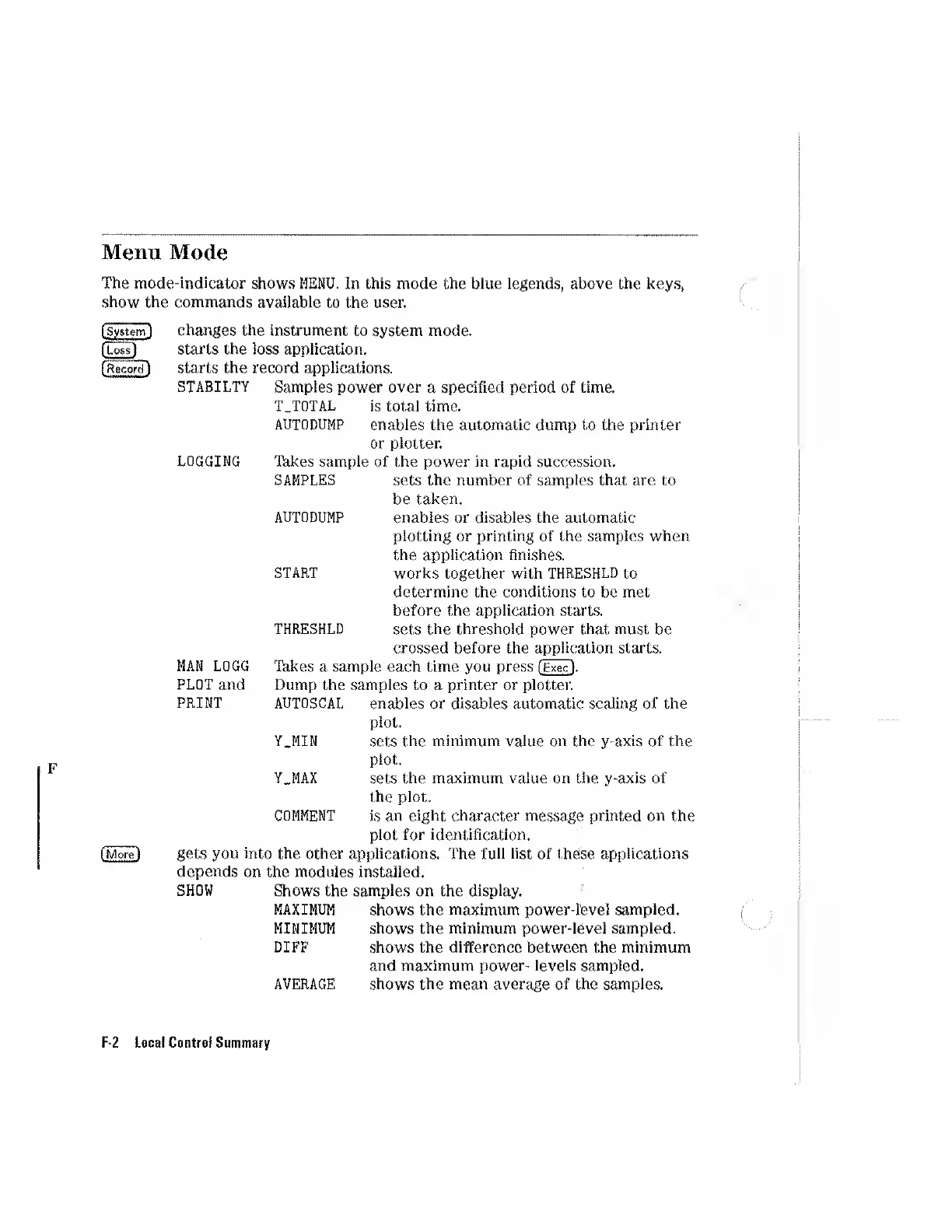

Menu Mode
The mode-indicator shows MENU. In this mode the blue legends, above the keys,
show the commands available to the user.
[System!
[Loss]
[Record]
chaiiges the instrument to system mode,
starts the loss application,
starts the record applications.
STABILTY Samples power over a specified period of time.
T_T0TAL is total time.
AUTODUMP enables the automatic dump to the printer
or plotter.
LOGGING Tkkes sample of the power in rapid succession.
SAMPLES sets the number of samples that are to
be taken.
AUTODUMP enables or disables the automatic
plotting or printing of the samples when
the application finishes.
START works together with THRESHLD to
determine the conditions to be met
before the application starts.
THRESHLD sets the threshold power that must be
crossed before the application starts.
Ihkes a sample each time you press (Exec 1.
MAN LOGG
PLOT and
PRINT
[More]
Dump the samples to a printer or plotter.
AUTQSCAL enables or disables automatic scaling of the
plot.
Y_MIN sets the minimum value on the y-axis of the
plot.
Y_MAX sets the maximum value on the y-axis of
the plot.
COMMENT is an eight character message printed on the
plot for identification.
gets you into the other applications. The full list of these applications
depends on the modules installed.
SHOW Shows the samples on the display.
MAXIMUM shows the maximum power-level sampled.
MINIMUM shows the minimum power-level sampled.
DIFF shows the difference between the minimum
and maximum power- levels sampled.
AVERAGE shows the mean average of the samples.
F-2 local Control Summary
