1-4

Setting Up the OSA

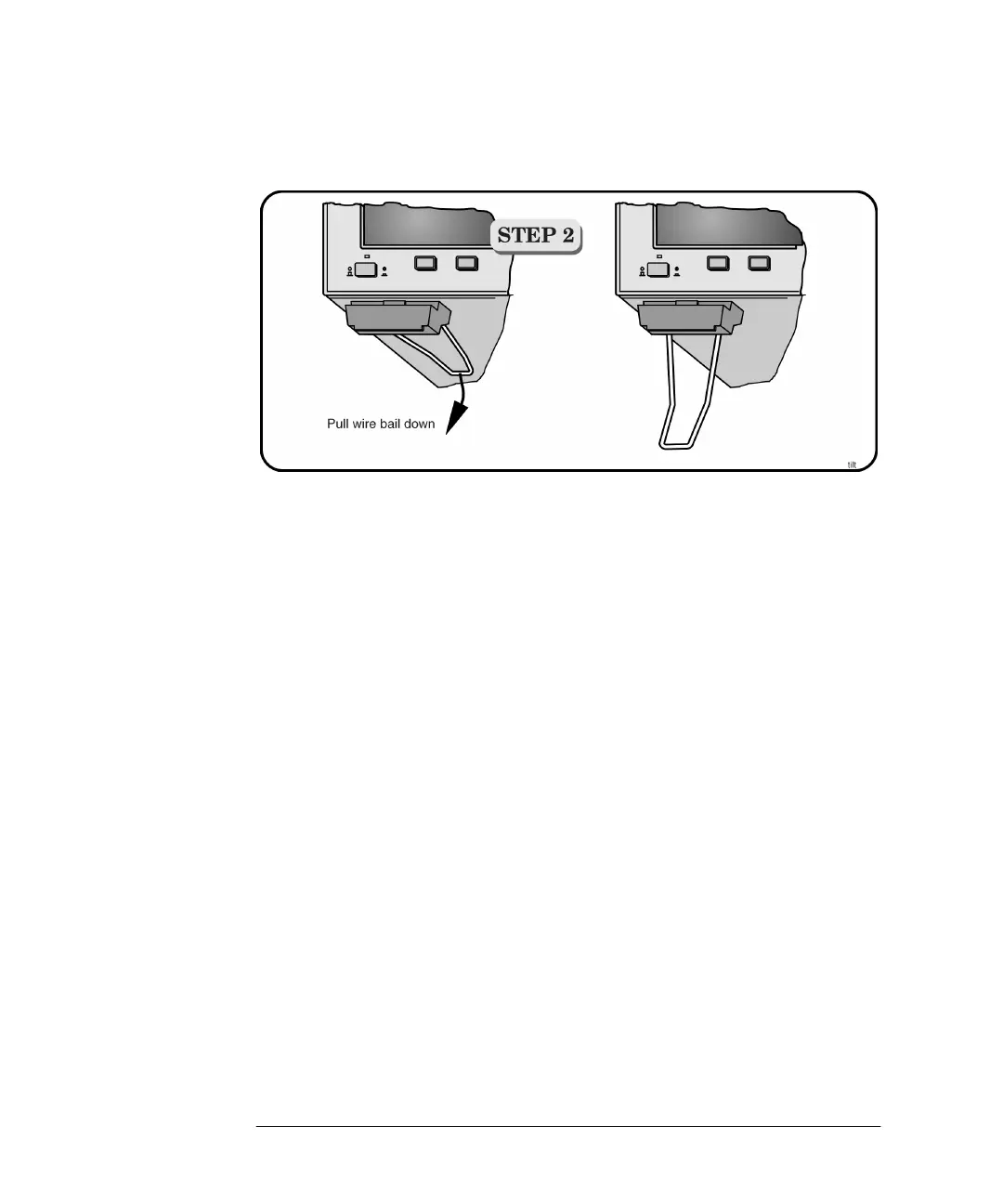

You can tilt your instrument upward for easier viewing. On the HP 86140A and

86142A instruments, lift up the front of the instrument, grasp one of the wire

bails under the front corner, and pull it down and forward until it latches into

place. Repeat for the other wire bail. On HP 86143A and 86145A instruments,

pivot the handle to tilt the instrument.
