HP 86140A Series User Manual

2-21
A Quick Tour
Tutorial: Getting Started
2
Connect a fiber from the source to the input connector of the optical spectrum
analyzer. Be sure to follow the good connector practices described in “Cleaning
Connections for Accurate Measurements” on page 6-10.
3
Enable the source.
4
Press the front-panel
Auto Align
key to optimize the detection of the incoming
signal. This takes a few moments to complete.
To perform a peak search
5
Press the front-panel
Auto Meas
key to locate and zoom-in on the signal. Please
wait until the Auto Measure routine is complete. A marker is placed on the peak
of the displayed signal.

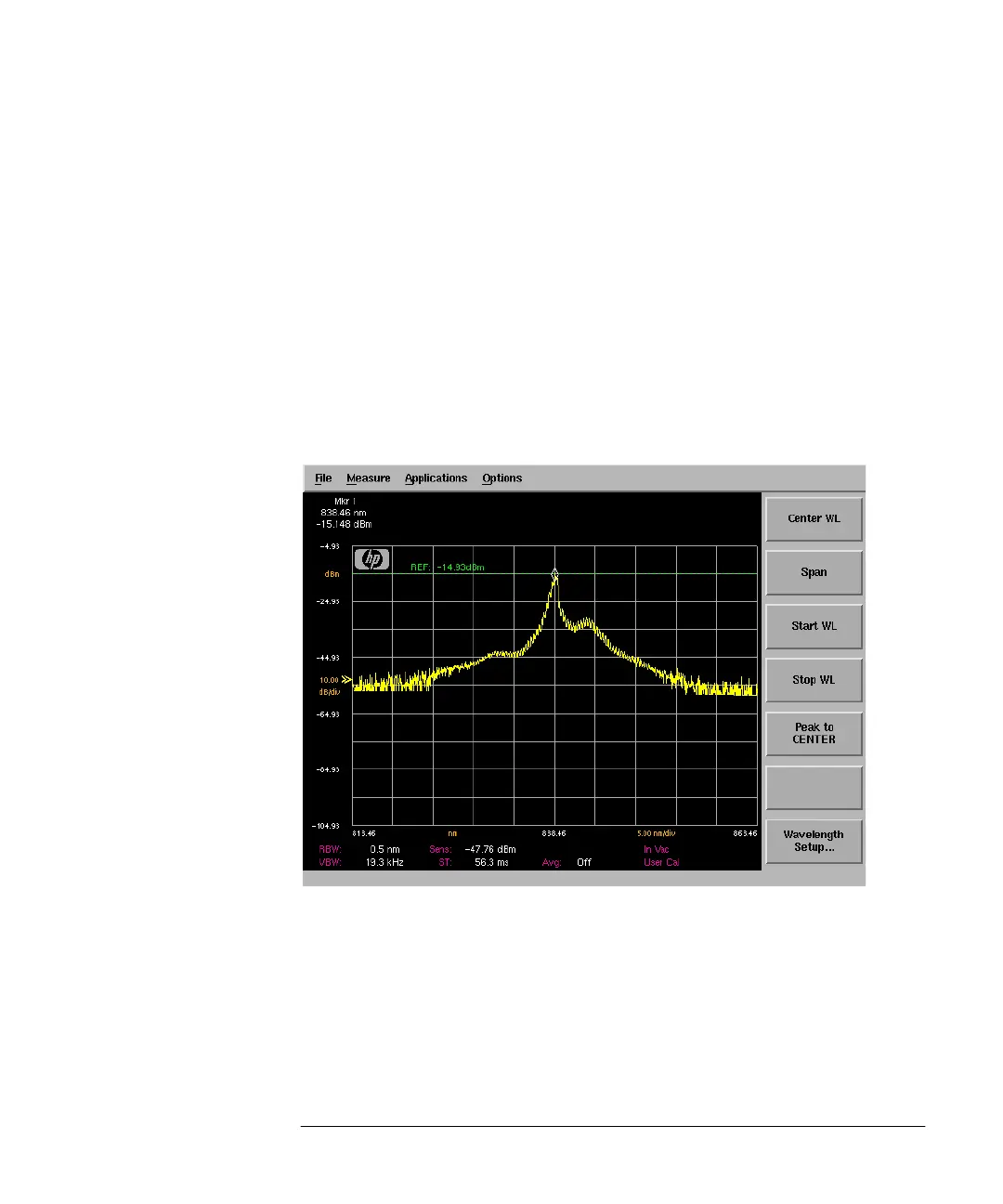

Trace with normal marker.
To zoom in on the signal
Press the
Span
softkey and then use the knob, step keys, or numeric keypad to
zoom in on the signal.
