Using the Optical Spectrum Analyzer
The Markers Menus

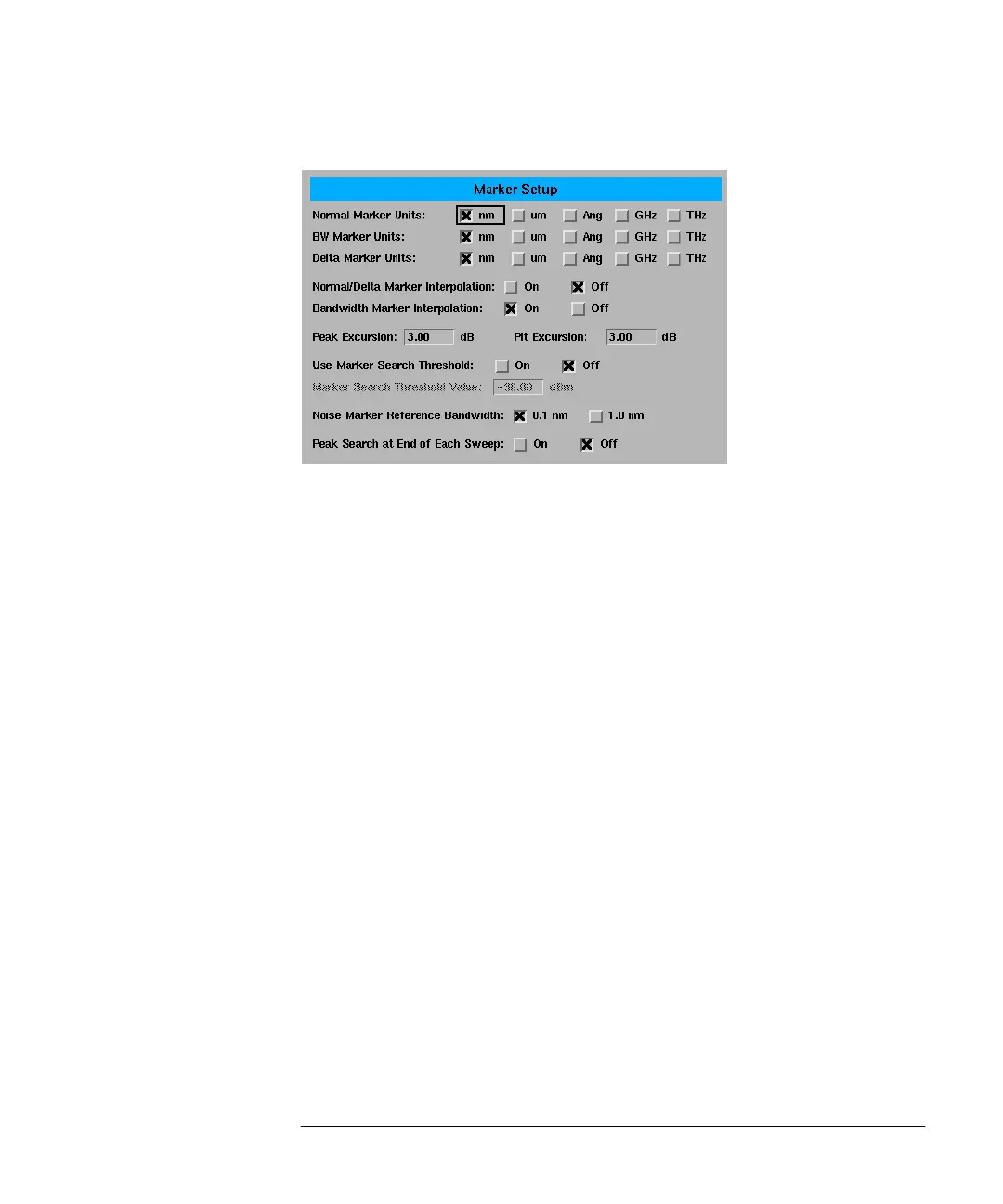

The Marker Setup panel
Setup panel
selections
Normal Marker Units
Sets the X-axis readout for frequency or wavelength when the instrument is in
a non-zero span. This setting controls only the normal marker X-axis and the
delta reference readout. This setting controls all four normal markers. The
bandwidth and delta offset markers have their own settings.
Bandwidth Marker Units
Sets the bandwidth marker X-axis readout for frequency or wavelength when
the instrument is in a non-zero span. The delta markers have their own set-
ting. This setting controls all four bandwidth markers.
Delta Marker Units
Sets the delta marker X-axis readout for frequency or wavelength when the
instrument is in a non-zero span. The bandwidth markers have their own set-
ting. This setting controls all four delta markers.
Normal/Delta Marker Interpolation
Turns the normal/delta marker interpolation
ON
or
OFF
. When interpolation is
ON
, the normal/delta markers will be placed at the exact wavelength or fre-
quency value selected if it is within the trace range. The marker will linearly
interpolate between two trace data points. The default state is
OFF
.
This setting controls the interpolation state for all four markers when in the
normal or delta mode.
